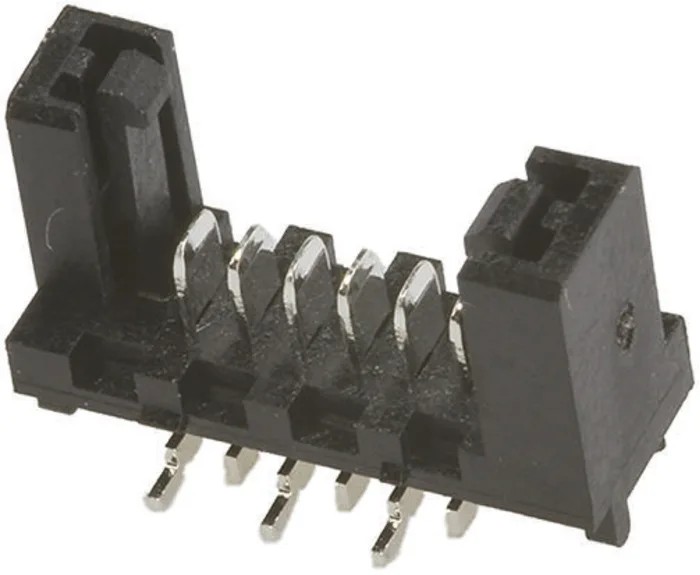

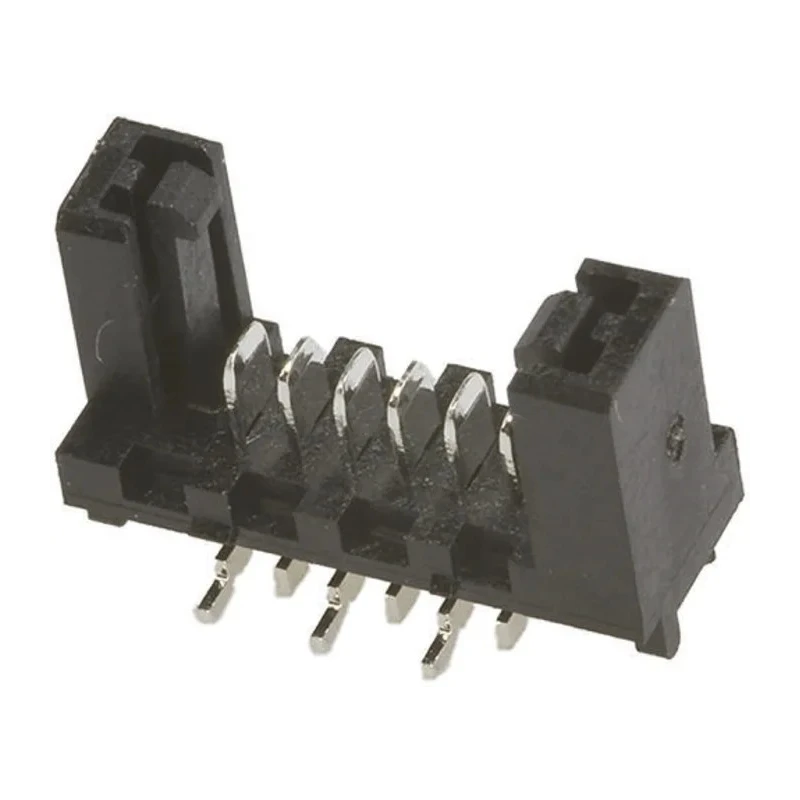

Molex 8-Way IDC Connector Female for Surface Mount, 1 Row, 1.2A, 250V AC, Picoflex Series 90816-0008

Free Delivery in India | Lowest Global Shipping Charges

Molex 8-Way IDC Connector Female for Surface Mount, 1 Row, 1.2A, 250V AC, Picoflex Series 90816-0008

Name: Molex 8-Way IDC Connector Female for Surface Mount, 1 Row, 1.2A, 250V AC, Picoflex Series 90816-0008
Brand: Molex
SKU: 215653
Price: 1.52 USD
Availability: InStock



Category IDC Connector Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	Molex
Orientation	Straight
Current	1.2A
Mount Type	Surface
Housing Material	Polyphthalamide
Contact Material	Brass
Series	Picoflex
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1.27mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Unshrouded

Key Features

This IDC connector features 8 contact points arranged in a single row.
It uses a tin-plated brass contact material for reliable connectivity.
The connector is unshrouded and designed for surface mounting on PCBs.
Operating temperature ranges from -40°C to 105°C for versatile application.
Termination type is solder, ensuring a secure electrical connection.
Picoflex series offers a 50% space saving with a low mated height of 6.4mm.
Ideal for automotive and consumer electronics that require high-density wire-to-board connections.
Features include positive latch retention and polarized side posts for correct orientation.

Product Description

Molex 90816-0008 IDC Connector Female, part of the Picoflex series, is designed for precise and compact wire-to-board connections with 8 contacts in a single row mounting on PCB surface.

This connector supports a current rating of 1.2A and an operating voltage of 250V AC, making it suitable for demanding electronic applications requiring reliable signal transmission and power delivery.

Constructed with brass contacts that are tin-plated and housed in durable polyphthalamide material, it ensures excellent electrical performance and mechanical robustness. The connector is unshrouded and features a solder termination type for long-lasting installation.

Operating temperature range from -40°C to 105°C allows use in harsh environments commonly found in automotive and consumer electronics industries. The Picoflex series connector offers a 50% space saving over traditional pitches, with a low profile height of 6.4mm when mated, providing design flexibility for high-density PCB layouts.

It includes positive latch retention mechanism and polarized side posts with PC pegs to prevent incorrect mating and enhance connection security. The 1.27mm pitch supports precise wire to board interface applications.

Eight contact IDC connector for high-density PCB mounting. Unshrouded design for ease of access and installation. Solder termination for robust and reliable contacts. Picoflex series offers compact dimensions with 50% space savings.

Reliable performance across -40°C to 105°C operating temperatures. Positive latching and polarization features prevent mismating. Suitable for automotive, consumer electronics, and industrial applications. Brass contacts with tin plating for corrosion resistance.

Polyphthalamide housing for mechanical stability and durability.

This 8-Way IDC Connector is a reliable choice for industrial and commercial electronic component manufacturing, ensuring secure and efficient wire-to-board connections. Browse more connectors and electronic components at EnvMart for diverse application needs.
