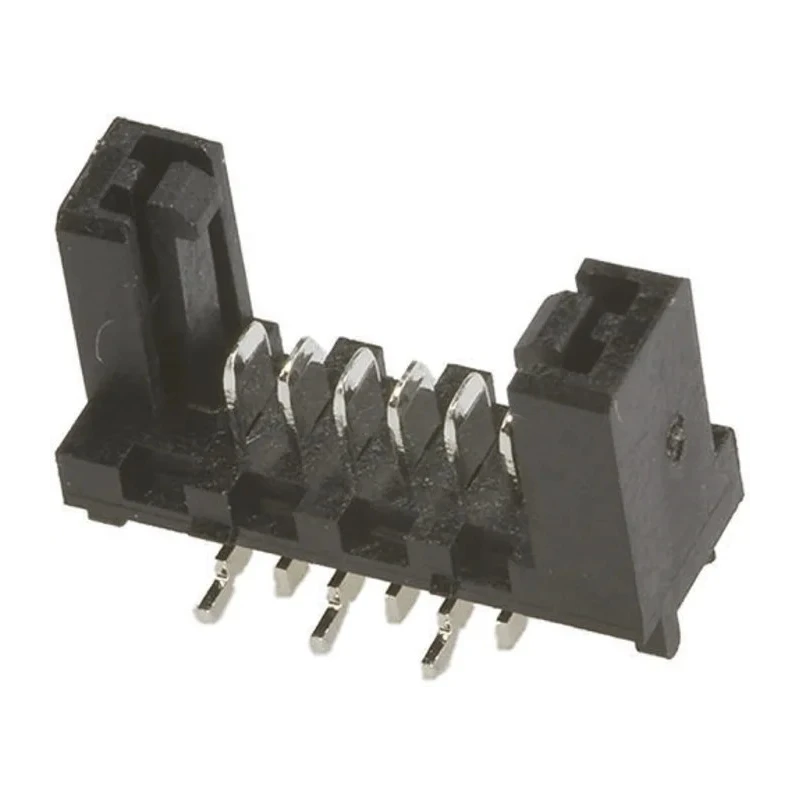

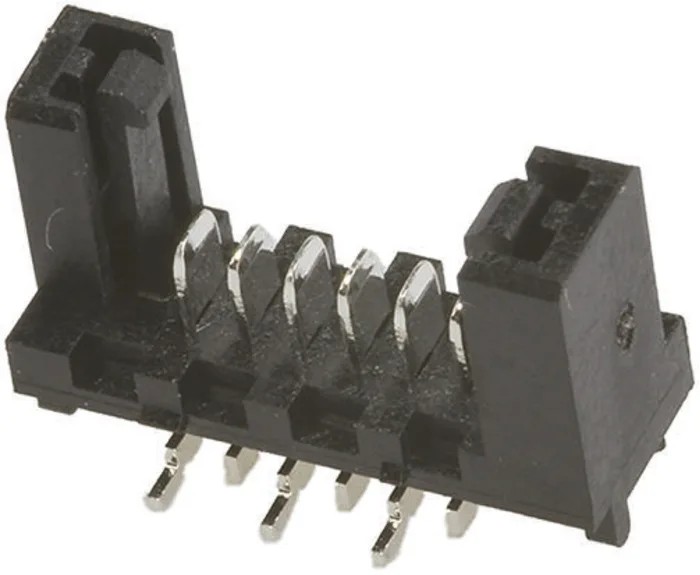

Molex 8-Way IDC Connector Female for Surface Mount, 1 Row, 250V AC, 1.2A 90816-0008

Free Delivery in India | Lowest Global Shipping Charges

Molex 8-Way IDC Connector Female for Surface Mount, 1 Row, 250V AC, 1.2A 90816-0008

Name: Molex 8-Way IDC Connector Female for Surface Mount, 1 Row, 250V AC, 1.2A 90816-0008
Brand: Molex
SKU: 215651
Price: 1.29 USD
Availability: InStock



Category IDC Connector Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	Molex
Orientation	Straight
Current	1.2A
Mount Type	Surface
Housing Material	Polyphthalamide
Contact Material	Brass
Series	Picoflex
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1.27mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Unshrouded

Key Features

This IDC connector features 8 contacts arranged in a single row for efficient wiring.
The contact pitch is 1.27mm, providing space-saving design suitable for compact assemblies.
Constructed with brass contacts plated with tin to ensure good conductivity and corrosion resistance.
The housing is made of durable polyphthalamide material suitable for harsh operating conditions.
Designed for surface mounting with solder termination for secure and stable PCB connections.
Operates reliably within a temperature range of -40°C to 105°C.
Features a positive latch and polarized side posts for secure mating and alignment.
Unshrouded and female contact gender suitable for mating with Picoflex male connectors.

Product Description

Molex 90816-0008 is an 8-way Insulation Displacement Connector (IDC) female connector intended for surface mount applications with a single row layout. Rated for 250V AC voltage and 1.2A current, this connector ensures reliable electrical connections in demanding industrial and consumer electronic environments.

The connector’s 1.27mm pitch allows for compact PCB layouts, while its brass contact material plated in tin guarantees excellent conductivity and corrosion resistance. The polyphthalamide housing offers high mechanical strength and thermal stability, supporting operation in temperatures ranging from -40°C to 105°C.

Designed with a positive latch mechanism and polarized side posts, the connector ensures secure retention and correct orientation when mated. The unshrouded female contacts interface with the Molex Picoflex PF-50 series male connectors, offering a highly reliable wire-to-board solution.

This connector is well suited for electronics in the automotive sector, consumer electronics, and other industries requiring resistance to vibration and shock. Its low profile height of 6.4mm mated aids in maintaining compact device form factors while providing 50% space saving versus traditional connector pitches.

This IDC connector comes with 8 female contacts in a single row configuration. Contact pitch is 1.27mm, optimizing board real estate. Constructed with brass contacts plated with tin for high durability and conductivity. Housing made of polyphthalamide ensures high temperature resistance and mechanical stability.

Positive latch and polarized features facilitate secure mating and retention. Surface mount design with solder termination provides robust PCB attachment. Operating temperature range from -40°C to 105°C accommodates demanding environments.

Compatible with Picoflex PF-50 series connectors. Designed for automotive and consumer electronics requiring vibration resistance. Low profile low mated height of 6.4mm enables compact product designs. Explore the Molex 90816-0008 IDC Connector and related components in the Connectors category on EnvMart for your high-density PCB connection needs.
