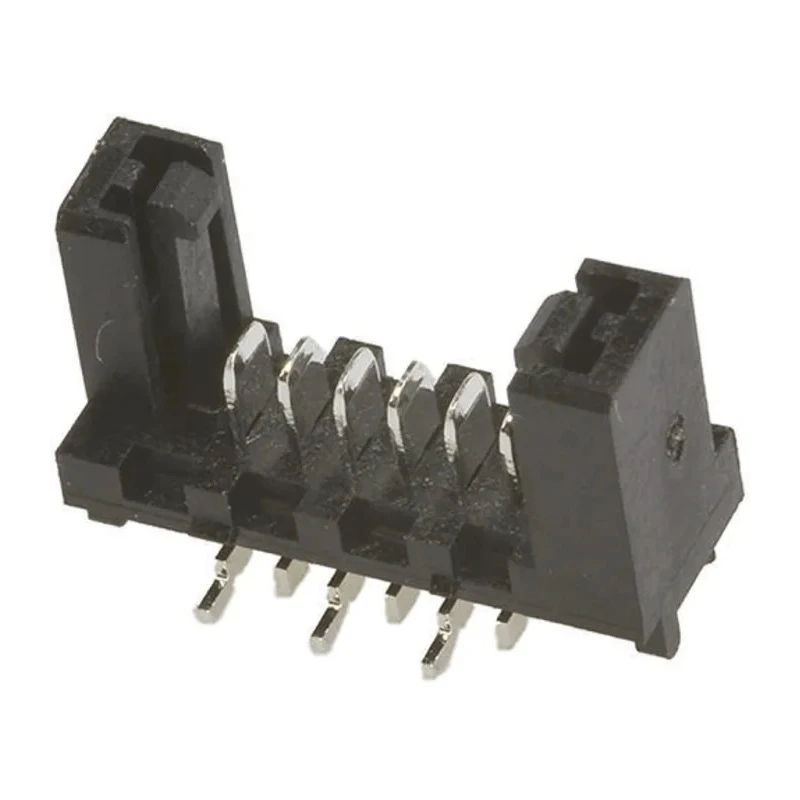

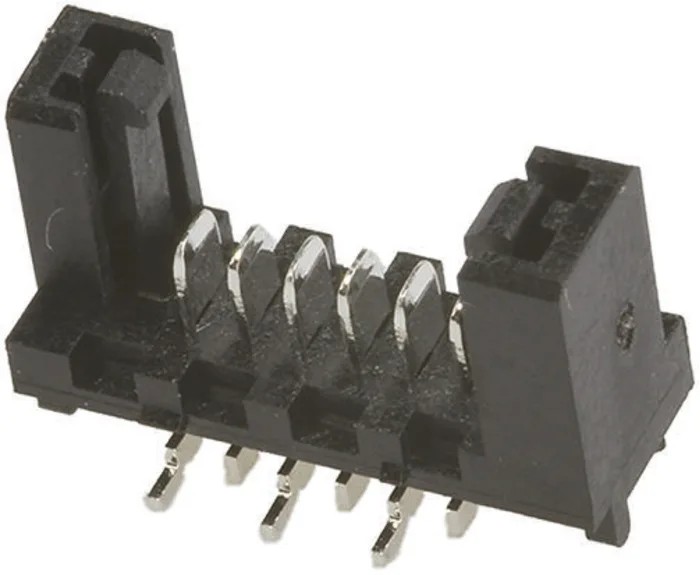

Molex 6-Way IDC Connector Female Surface Mount 1 Row 1.2A 250V ac 90816-0006

Free Delivery in India | Lowest Global Shipping Charges

Molex 6-Way IDC Connector Female Surface Mount 1 Row 1.2A 250V ac 90816-0006

Name: Molex 6-Way IDC Connector Female Surface Mount 1 Row 1.2A 250V ac 90816-0006
Brand: Molex
SKU: 215650
Price: 1.49 USD
Availability: InStock



Category IDC Connector Brand Molex Condition New

Specifications

Country of Origin	Ireland
Voltage	250V ac
Brand	Molex
Orientation	Straight
Current	1.2A
Mount Type	Surface
Housing Material	Polyphthalamide
Contact Material	Brass
Series	Picoflex
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1.27mm
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Unshrouded

Key Features

Supports current up to 1.2A at 250V AC voltage rating.
Unshrouded female connector with a pitch of 1.27mm for compact PCB mounting.
Constructed with brass contacts and polyphthalamide housing for durability.
Surface mount with straight orientation and solder termination for reliable installation.
Operates reliably in temperatures from -40°C to 105°C.
Includes positive latch and polarizing features to ensure secure mating.
Ideal for automotive and consumer electronics applications requiring vibration resistance.
Manufactured in Ireland with Picoflex series quality and compatibility.

Product Description

Molex 90816-0006 is a 6-Way IDC Connector Female designed for surface mounting on PCBs, part of the Picoflex series. It supports a current rating of 1.2A and voltage up to 250V AC, suitable for applications requiring compact, high-density wire-to-board connections.

The connector features unshrouded female contacts arranged in a single row with a 1.27mm pitch, providing space efficiency and ease of assembly. Its brass contacts are tin-plated ensuring reliable electrical conductivity and corrosion resistance, housed in a robust polyphthalamide body that withstands mechanical stresses and harsh environments.

This connector is designed with a straight orientation and solder termination type, making it ideal for surface mount technology on printed circuit boards. It includes a positive latch mechanism for increased retention and polarized side posts and PC pegs to prevent incorrect mating during assembly.

Operating temperature ranges from -40°C to 105°C, providing durability in automotive, industrial, and consumer electronics sectors. The Picoflex series connectors deliver excellent resistance to vibration and shock, crucial for demanding applications.

Molex 90816-0006 is manufactured in Ireland, ensuring high quality and adherence to industry standards. It is commonly used with 90327 Series connectors, supporting versatile electrical connection requirements in compact form factors.

Supports current up to 1.2A and voltage of 250V AC. Compact 6-way female IDC connector with 1.27mm pitch. Brass contact material with tin plating for reliable conductivity. Polyphthalamide housing for mechanical and thermal durability.

Surface mount with solder termination and straight orientation. Includes positive latch and polarized features for secure mating. Operates in temperatures from -40°C to 105°C. Manufactured in Ireland, Picoflex series for automotive and consumer electronics.
