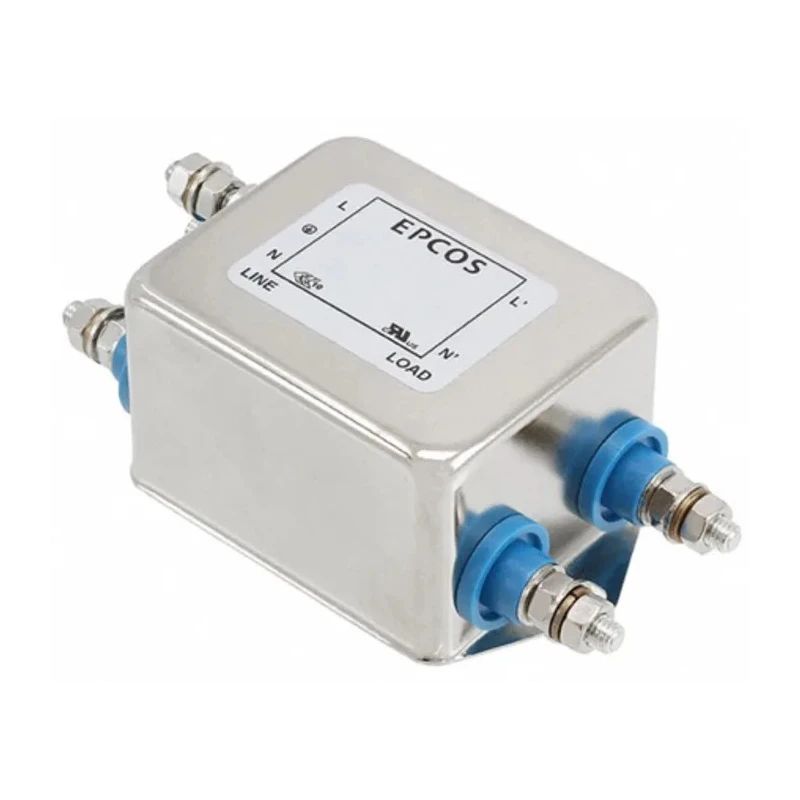

TDK Flange EMC Filter 25 A 250V ac/dc 60Hz Tab 1 Phase B84111F0000G125

Free Delivery in India | Lowest Global Shipping Charges

TDK Flange EMC Filter 25 A 250V ac/dc 60Hz Tab 1 Phase B84111F0000G125



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	38mm
Length	52mm
Model	B84111F0000G125
Depth	107mm
Mount Type	Flange
Operating Frequency	60Hz
Series	B84111F
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	2pF
Minimum Operating Temperature	-25°C
Maximum Current	25A
Number of Phases	1
Leakage Current	369μA
Maximum Voltage	250V ac/dc
Inductance	2mH
Standards/Approvals	UL 1283
Termination Style	Tab

Key Features

Designed for single phase EMC filtering applications.
Supports a maximum current of 25 A and maximum voltage of 250V AC/DC.
Compact flange mount with tab termination ensures easy installation.
Operating frequency of 60Hz suitable for power line filtering.
Low capacitance of 2 pF minimizes signal interference.
Constructed with polyurethane potting for durability and UL 94 V-0 compliance.
Can operate in ambient temperatures from -25°C up to 100°C.
Inductance value of 2 mH contributes to effective EMI suppression.

Product Description

The TDK B84111F0000G125 Flange EMC Filter is a single phase power line filter designed to provide effective electromagnetic interference (EMI) suppression in industrial and electronic applications. Operating at 25 A maximum current and 250 V AC/DC voltage, this filter is ideal for use in switched mode power supplies for telecom and data systems where low leakage current and robust performance are required.

This EMC filter features a flange mount type and tab termination style, making installation straightforward and reliable. The device operates efficiently at 60 Hz with a capacitance of 2 pF and inductance of 2 mH, ensuring optimal filtering of power line noise.

Built with polyurethane potting material rated UL 94 V-0, the filter offers excellent durability and safety under varying thermal conditions, with operational temperatures ranging from -25°C to 100°C. The compact form factor, measuring 52 mm in length, 38 mm in height, and 107 mm in depth, suits integration into constrained spaces without sacrificing functionality.

The TDK B84111F series filters meet international standards UL 1283 and approvals including ENEC10, UL, and cUL, ensuring compliance in global industrial environments. Optimized leakage current design for reliable performance.

Compact flange mounting facilitates easy installation. High endurance polyurethane potting ensures long operational life. Suitable for use in industrial, telecommunications, and data systems. Compliance with UL 1283 and ENEC10 standards.

Industry applications for this filter include industrial electronics, telecommunications equipment, power supplies, and other systems requiring effective EMI filtering to ensure stable and safe operation. Its robust construction and approvals make it suitable for environments demanding high reliability and safety standards.
