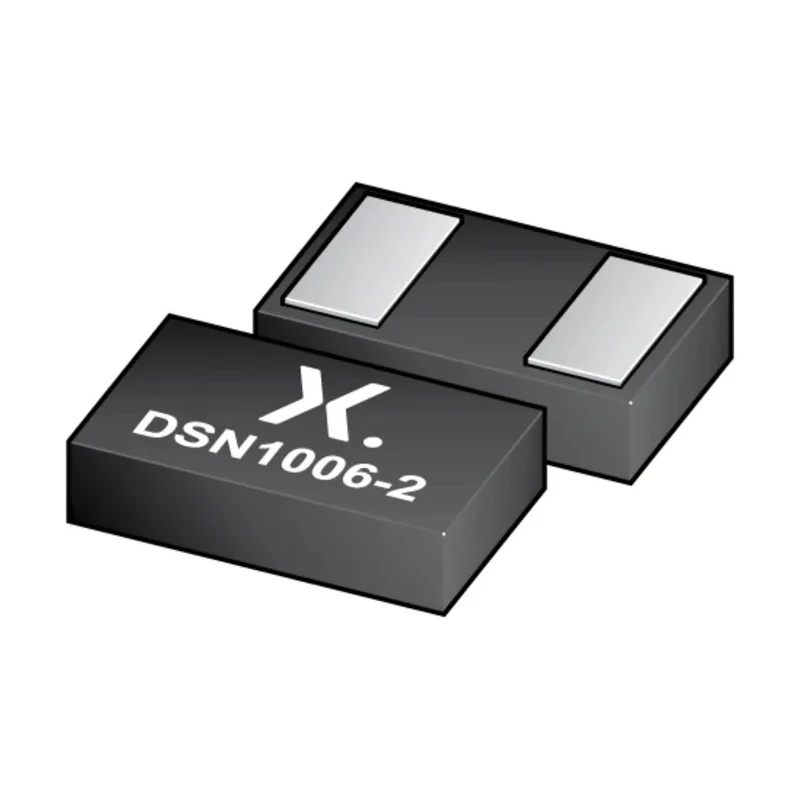

Nexperia Medium Power Surface Mount Schottky Diode 30 V 1.4 A 2-Pin DSN-1006 PMEG3010AESBYL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.3mm |
| Length | 1.05mm |
| Model | PMEG3010AESBYL |
| Width | 0.65mm |
| Mount Type | Surface |
| Series | PMEG3010AESB |
| Maximum Operating Temperature | 150°C |
| Package Type | DSN-1006 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1.4A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.25mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 10A |
| Maximum Forward Voltage Vf | 480mV |
| Peak Reverse Recovery Time trr | 3.5ns |
| Average forward current | IF(AV) ≤ 1 A |
| Reverse voltage | VR ≤ 30 V |
Key Features
- This diode supports a maximum continuous forward current of 1.4 A.
- It features a peak reverse repetitive voltage of 30 V suitable for low voltage applications.
- The device has a low typical forward voltage drop of 415 mV for high efficiency.
- It operates over a temperature range from -55°C to 150°C.
- The diode provides a peak non-repetitive forward surge current rating of 10 A.
- Its peak reverse current is very low, typically 1.25 mA, ensuring minimal leakage.
- The ultra-small DSN-1006 surface mount package has dimensions of 1.05 mm length, 0.65 mm width, and 0.3 mm height.
- It offers fast switching with a peak reverse recovery time of 3.5 ns, suitable for high frequency circuits.
Product Description
Nexperia PMEG3010AESBYL is a medium power Schottky diode designed for efficient rectification and switching applications. Presented in a compact 2-pin DSN-1006 surface-mount package, it enables space-saving PCB layouts and provides reliability in a variety of electronics circuits.
The diode supports a maximum continuous forward current of 1.4 A, making it suitable for moderate power applications. With a peak reverse repetitive voltage of 30 V, it is ideal for low voltage systems requiring fast recovery and low losses.
The typical low forward voltage of 415 mV minimizes power dissipation, improving overall efficiency and battery life in portable and industrial electronics. Its fast switching capability with a peak reverse recovery time of 3.5 ns supports high-frequency operation in power converters and switching regulators.
The operational temperature range from -55°C up to 150°C ensures dependable performance in demanding industrial, commercial, and consumer environments. The small form factor (1.05 mm x 0.65 mm x 0.3 mm) surface mount package is appropriate for modern compact electronic assemblies.
These features make the PMEG3010AESBYL an excellent choice for diverse sectors including automotive electronics (non-certified), battery charging, power supply modules, and communication equipment requiring efficient rectification and protection.
Maximum continuous forward current of 1.4 A. Peak reverse repetitive voltage rating of 30 V. Low forward voltage drop of 415 mV typical. Peak forward surge current up to 10 A. Extensive temperature range from -55°C to 150°C.
Compact DSN-1006 2-pin surface mount package. Fast peak reverse recovery time of 3.5 ns. Low leakage current with peak reverse current 1.25 mA.
Set your projects for success by choosing Nexperia’s advanced Schottky diode technology known for quality and efficiency in electronic componentry. Explore EnvMart's comprehensive catalog for related semiconductor and diode components optimized for your industrial and laboratory applications.
