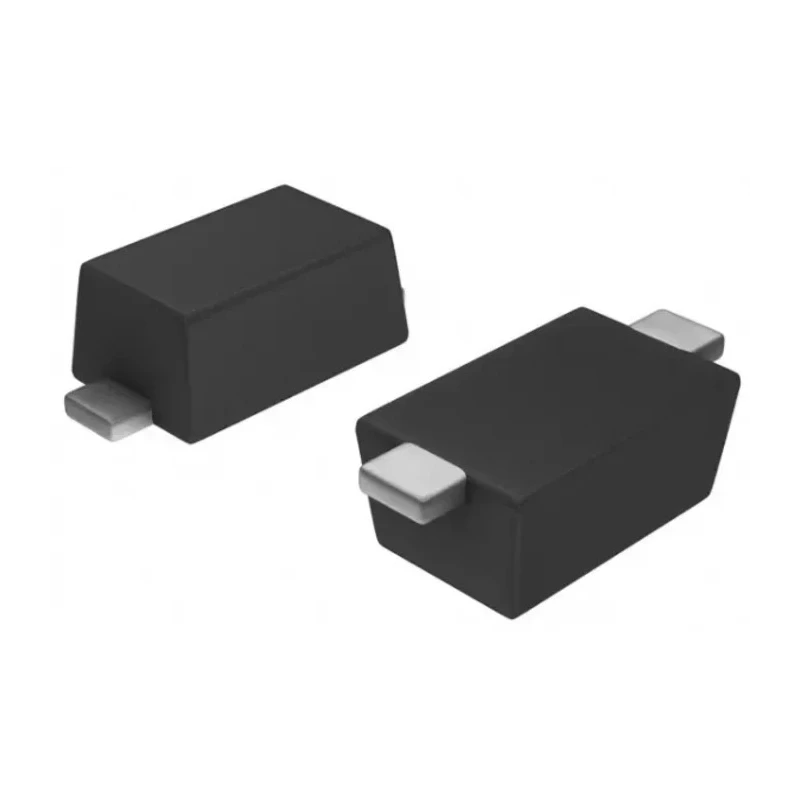

DiodesZetex Schottky Diode 100 V 1 A 2-Pin SOD-123 Surface Mount SDM1U100S1F-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 2.8mm |
| Model | SDM1U100S1F-7 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | SDM1U100S1F |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 770mV |
Key Features
- Single diode configuration optimized for high efficiency and low forward voltage.
- Maximum forward voltage of 770 mV reduces power loss during operation.
- Robust peak non-repetitive forward surge current of 50 A for transient tolerance.
- Wide operating temperature range from -55°C to 175°C suitable for harsh environments.
- Qualified to automotive standard AEC-Q101 ensuring reliability in automotive applications.
- Lead-free finish with RoHS compliance representing environmentally friendly manufacturing.
- Includes guard ring die construction for enhanced transient protection.
Product Description
DiodesZetex SDM1U100S1F-7 is a high-efficiency Schottky diode designed for surface mount applications requiring low forward voltage drop and excellent transient protection. Packaged in the compact SOD-123 form factor, this diode supports a maximum continuous forward current of 1 A and a peak repetitive reverse voltage of 100 V.
Its guard ring die construction enhances transient protection, while the interlocking clip design provides high surge current capacity, ensuring device robustness in demanding conditions. The diode operates reliably across a wide temperature range from -55°C to 175°C, making it suitable for automotive, industrial, and power management applications.
This diode is RoHS compliant with a lead-free finish and is halogen- and antimony-free, offering an eco-friendly choice for modern electronic designs. Qualified to the AEC-Q101 automotive standard, it meets stringent reliability requirements for vehicular electronics.
Its small footprint with dimensions of 2.8 mm length, 1.9 mm width, and 1.15 mm height enables efficient PCB space utilization. Applications include power rectification, voltage clamping, and switching circuits in commercial, automotive, industrial, and consumer electronics.
Single rectifier diode optimized for low power loss. Maximum forward voltage of 770 mV reduces heat generation. Peak surge current rating of 50 A allows handling of transient events. Broad operational temperature range for versatile use.
Small SOD-123 package suited for surface mount designs. Supports automotive applications with AEC-Q101 qualification. RoHS compliant and environmentally safe production standards. Guard ring provides enhanced transient voltage protection.
This product is an essential component for electronics manufacturers seeking reliable and efficient Schottky diodes for power-sensitive applications and automotive-grade solutions. Explore the Electronics & Electricals > Semiconductor > Schottky Diodes & Rectifiers category at EnvMart for more components that meet specialized industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the SDM1U100S1F-7 is 1 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The maximum forward voltage of this diode is 770 mV.
It operates reliably across a temperature range from -55°C to 175°C.
The diode is packaged in a SOD-123 form factor.
The peak non-repetitive forward surge current rating is 50 A.
Yes, it is qualified to the AEC-Q101 automotive standard, ensuring reliability in automotive applications.
The dimensions of this diode are 2.8 mm in length, 1.9 mm in width, and 1.15 mm in height.
It features a single diode configuration optimized for high efficiency and low forward voltage.
This diode is RoHS compliant and has a lead-free finish, representing environmentally friendly manufacturing.
It is suitable for power rectification, voltage clamping, and switching circuits in various electronics applications.
This model supports surface mount installation.
