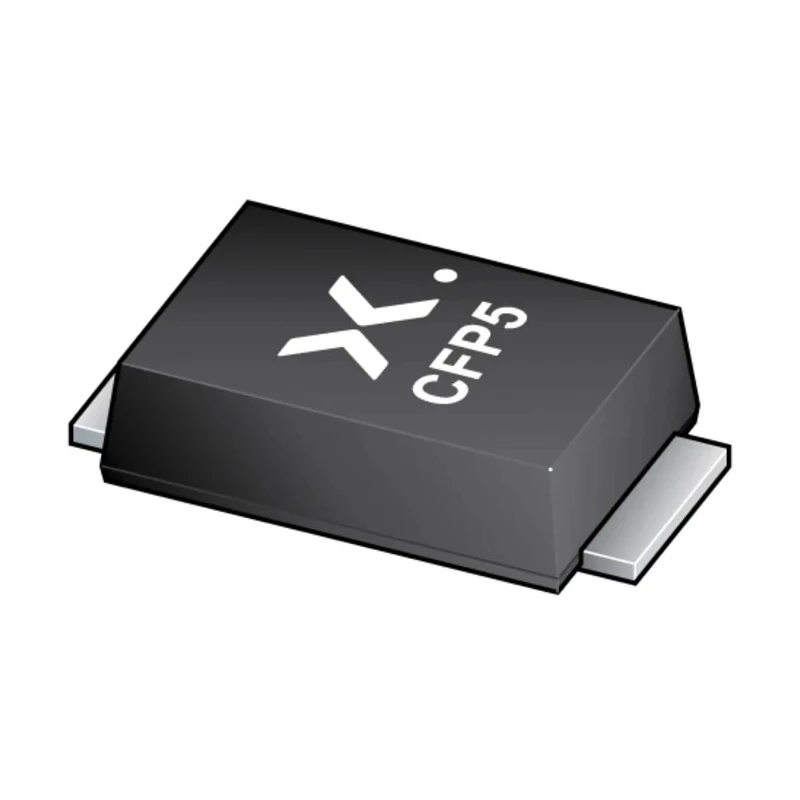

Nexperia Medium Power Low VF Schottky Diode 100 V 2.83 A Surface Mount SOD-128 PMEG10020AELPX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 4mm |
| Model | PMEG10020AELPX |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | PMEG10020AELP |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2.83A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1000μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 770mV |
| Peak Reverse Recovery Time trr | 5ns |
| Average forward current | IF(AV) ≤ 2 A |
| Reverse voltage | VR ≤ 100 V |
Key Features
- This diode supports continuous forward current up to 2.83 A and peak reverse voltage of 100 V.
- It is housed in a small, flat SOD-128 surface mount package with dimensions 4 mm x 2.7 mm x 1.1 mm.
- Features include low forward voltage of approximately 710 - 770 mV and extremely low leakage current.
- The diode supports a high peak non-repetitive forward surge current of 50 A and fast reverse recovery time of 5 ns.
- It operates reliably over a temperature range from -55°C to 175°C, meeting automotive AEC-Q101 qualification.
- This device integrates a planar MEGA (Maximum Efficiency General Application) Schottky barrier with an internal guard ring for stress protection.
- Ideal for applications requiring high efficiency and compact form factor in industrial, automotive, and power circuit designs.
Product Description
Nexperia PMEG10020AELPX Schottky diode is a medium power, low forward voltage device designed for surface mount applications. It features a 2-pin SOD-128 package that is compact and flat, measuring 4 mm in length, 2.7 mm in width, and 1.1 mm in height.
With a maximum continuous forward current of 2.83 A and a peak reverse repetitive voltage of 100 V, this diode provides reliable rectification performance. It has a low forward voltage drop of approximately 710 to 770 mV, which contributes to improved efficiency and reduced heat generation in power circuits.
The diode supports a high peak non-repetitive forward surge current of 50 A and exhibits a fast peak reverse recovery time of only 5 ns, enhancing switching performance. Its extremely low leakage current helps maintain energy efficiency and system stability in various electronic designs.
Its operating temperature range spans from -55°C to 175°C, making it suitable for demanding automotive and industrial environments. The diode is AEC-Q101 qualified, ensuring it meets automotive reliability standards.
This device incorporates planar MEGA Schottky barrier technology with an integrated guard ring that offers stress protection, enhancing durability and reliability. Its small form factor makes it ideal for space-constrained assemblies in semiconductors, power supply modules, and automotive electronics.
This diode is certified to the automotive AEC-Q101 standard, reflecting its suitability for automotive use cases. The device's low voltage drop supports battery life extension in portable electronics and efficient power conversion.
It is a single diode configuration with Schottky rectifier type designed for medium power efficiency. Applications include power management, switching circuits, and energy-saving designs in industrial and automotive sectors.
Explore the wide range of Schottky diodes and rectifiers at EnvMart to find the perfect component for your electronic subsystem needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 2.83 A.
The peak reverse repetitive voltage rating is 100 V.
The SOD-128 package measures 4 mm in length, 2.7 mm in width, and 1.1 mm in height.
It operates reliably over a temperature range from -55°C to 175°C.
The forward voltage drop is approximately 710 to 770 mV.
It can handle a peak non-repetitive forward surge current of 50 A.
This model features a single diode configuration.
The peak reverse recovery time is 5 ns.
Yes, it is AEC-Q101 qualified, ensuring it meets automotive reliability standards.
The maximum forward voltage rating is 770 mV.
The peak reverse current is 1000 μA.
The country of origin for this diode is India.
