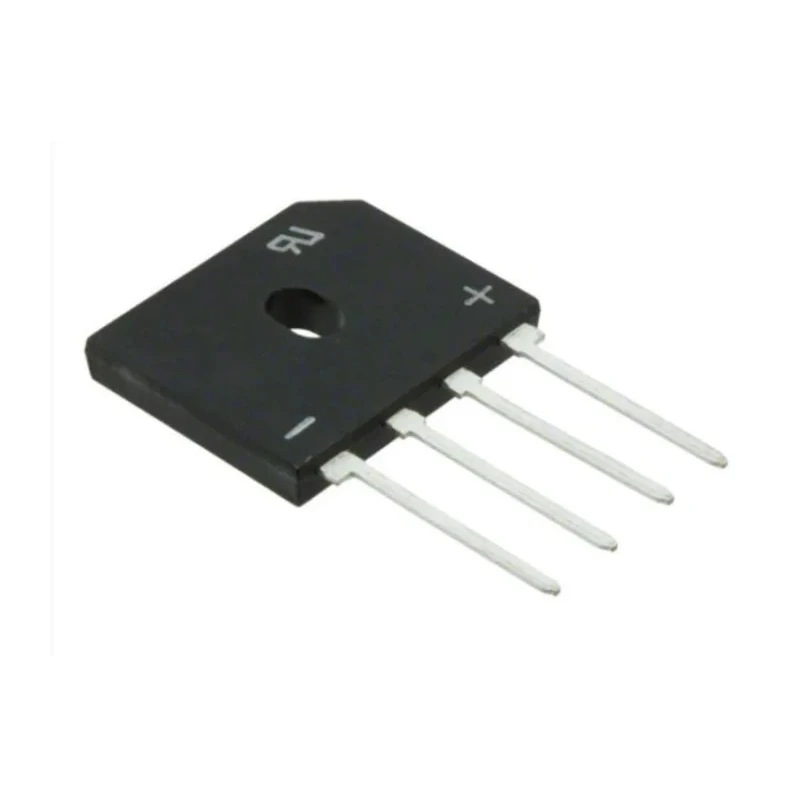

Vishay Bridge Rectifier 1-Phase Through Hole 800 V 175 A 4-Pin Single GBU6K-E3/45
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 18.8mm |
| Length | 22.3mm |
| Model | GBU6K-E3/45 |
| Width | 3.56mm |
| Mount Type | Through Hole |
| Series | GBU6 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 175A |
| Forward Current If | 6A |
| Peak Forward Voltage Vf | 1V |
| HY Electronic Corp Bridge Rectifier, 6A, 600V, 4-PinBrand | HY Electronic Corp |
Key Features
- This rectifier has a peak reverse repetitive voltage (Vrrm) of 800 volts.
- It supports a forward current (If) of 6 amperes and a peak non-repetitive forward surge current (Ifsm) of 175 amperes.
- Operating temperature ranges from -55°C minimum to 150°C maximum.
- The device package dimensions are 22.3 mm length, 18.8 mm height, and 3.56 mm width.
- Its low peak forward voltage drop is approximately 1 volt, enabling efficient conduction.
- Constructed with glass passivated junction for high surge current capability.
- Soldering pins are designed for reliable through-hole PCB mounting.
- The bridge rectifier converts AC input to DC output suitable for full-wave rectification in power electronics.
Product Description
Vishay GBU6K-E3/45 Bridge Rectifier is a high-performance 1-phase semiconductor device designed for AC to DC conversion in electronic applications. It features a 4-pin single configuration with through-hole mounting and comes in the GBU package type, ensuring robust integration into printed circuit boards.
Rated for a peak reverse repetitive voltage of 800 volts and forward current of 6 amperes, this rectifier efficiently handles surge currents up to 175 amperes, making it suitable for demanding industrial conditions. Operating temperatures from -55°C to 150°C enable reliable performance across a broad range of environments.
The rectifier's compact dimensions - 22.3 mm length, 18.8 mm height, and 3.56 mm width - contribute to space-saving designs without compromising thermal performance. The device incorporates a glass passivated junction, granting it high surge current capability and increased case dielectric strength of 1500 Vrms.
This Bridge Rectifier is ideal for full-wave rectification applications where stable and steady DC output is required, commonly found in power supplies, motor drives, and electronic control circuits in industrial, manufacturing, and commercial sectors.
This rectifier has a peak reverse repetitive voltage (Vrrm) of 800 volts. It supports a forward current (If) of 6 amperes and a peak non-repetitive forward surge current (Ifsm) of 175 amperes. Operating temperature ranges from -55°C minimum to 150°C maximum.
The device’s low peak forward voltage drop is approximately 1 volt, allowing efficient conduction. Constructed with glass passivated junction for high surge current capability. Soldering pins designed for through-hole PCB mounting ensure secure electrical connectivity.
Compact package dimensions enable flexible PCB layouts. Suitable for industrial electronics, electronic equipment manufacturing, and power supply units. Explore more components and semiconductor products suitable for diverse industrial and commercial electronics needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a forward current (If) of 6 amperes.
The peak non-repetitive forward surge current (Ifsm) rating is 175 amperes.
The operating temperature ranges from -55°C to 150°C.
The dimensions are 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width.
It features a through-hole mounting design, suitable for PCB integration.
This rectifier uses a GBU package type.
The peak forward voltage drop is approximately 1 volt, allowing for efficient conduction.
This rectifier has a pin count of 4.
The glass passivated junction enhances the rectifier's surge current capability and increases case dielectric strength.
It is suitable for full-wave rectification applications, commonly found in power supplies, motor drives, and electronic control circuits.
The country of origin for the GBU6K-E3/45 is India.
