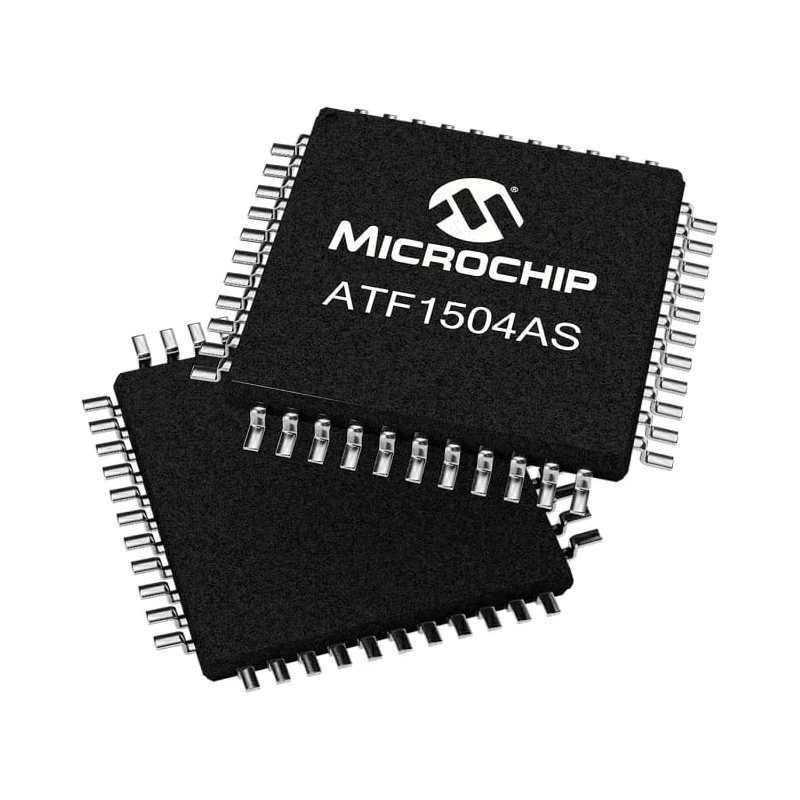

Microchip Complex Programmable Logic Device EEPROM 64 Cells, 68 I/O, 10 ns, 3 Logic Blocks, In System ATF1504AS-10AU44
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10.1mm |
| Model | ATF1504AS-10AU44 |
| Mount Type | Surface |
| Memory type | EEPROM |
| Series | ATF15xx |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 44 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3V |
| Maximum Propagation Delay Time | 10ns |
| Maximum Operating Frequency | 125MHz |
| Number of Macro Cells | 64 |
| Number of User I/Os | 68 |
| Number of Logic Blocks/Elements | 3 |
Key Features
- Operates with a supply voltage range from 3V to 5V.
- Surface mount package type TQFP with a 44-pin count.
- Supports re-programmability with individual output enable control.
- Designed to operate in temperatures ranging from -40°C to 85°C.
- Maximum operating frequency of 125 MHz ensures high-speed applications.
- Compact size measures 10.1mm in length and 1.05mm in height.
- Supports EEPROM memory type for non-volatile configuration.
- In-system programmability provides flexible design and testing.
Product Description
Microchip ATF1504AS-10AU44 is a highly reliable complex programmable logic device (CPLD) featuring EEPROM memory technology with 64 macro cells and 68 user input/output pins. It provides a maximum propagation delay time of 10 nanoseconds and includes 3 logic blocks, supporting efficient and high-speed logic design and operation. The device supports in-system programming, allowing for flexible configuration changes without removal from the circuit.
This CPLD operates on a supply voltage ranging between 3V and 5V and is housed in a compact 44-pin Thin Quad Flat Package (TQFP) suitable for surface mounting. It has an operating temperature range from -40°C to +85°C, making it suitable for demanding industrial and embedded applications. The maximum operating frequency of 125 MHz ensures compatibility with high-performance circuits requiring fast response times.
The device includes individual output enable control and supports reliable re-programmability, enhancing design versatility. Its compact dimensions of 10.1mm length and 1.05mm height facilitate integration in space-constrained electronic assemblies.
Microchip ATF1504AS-10AU44 is ideal for use in industrial automation, embedded electronics development, telecommunications, and other sectors requiring programmable logic devices with robust performance and programming flexibility. This component complies with industrial standards but does not include automotive standard certification.
Operates with a supply voltage between 3V and 5V. Supports in-system programmability for flexible application. Provides fast maximum propagation delay time of 10 ns. Features 64 macro cells and 68 user I/Os. Suitable for surface mount applications using TQFP package.
Explore Microchip and other semiconductor products at EnvMart for reliable, high-performance programmable logic devices and electronic components to meet varied industrial and commercial needs.
Explore more products in our Programmable Logic ICs category.
