Vishay Bridge Rectifier 600 V 400 A 4-Pin Single GBPC3506-E4/51

Free Delivery in India | Lowest Global Shipping Charges

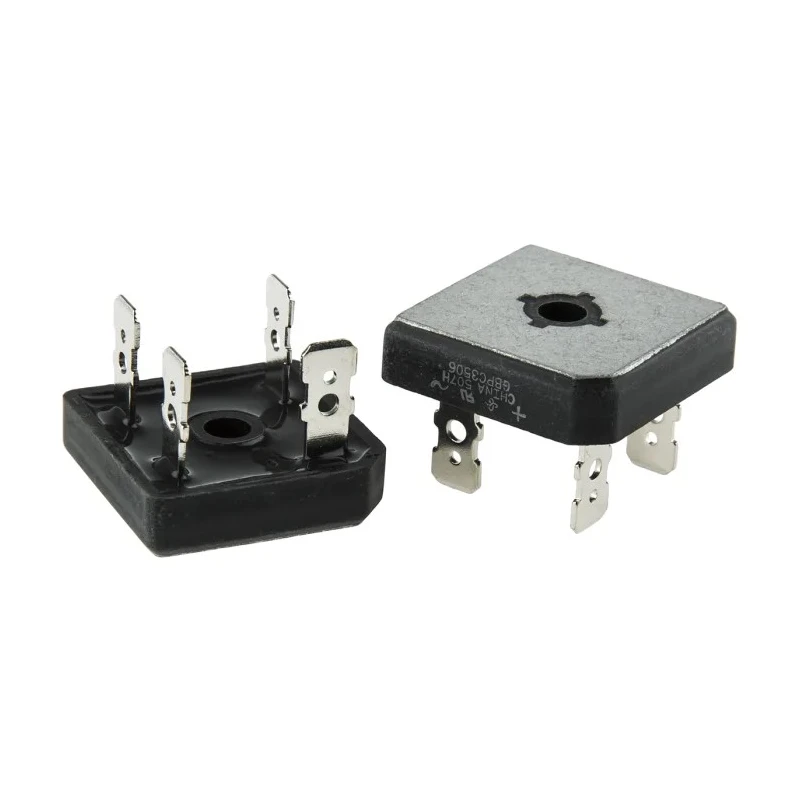

Vishay Bridge Rectifier 600 V 400 A 4-Pin Single GBPC3506-E4/51

Name: Vishay Bridge Rectifier 600 V 400 A 4-Pin Single GBPC3506-E4/51
Brand: Vishay
SKU: 214591



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	7.62mm
Length	28.8mm
Model	GBPC3506-E4/51
Width	28.8mm
Mount Type	Screw
Series	GBPC35
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBPC
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	400A
Forward Current If	35A
Peak Forward Voltage Vf	1.1V
Universal, 3-way terminals	Push-on, wrap around or solder

Key Features

Peak reverse repetitive voltage rating of 600 volts ensures robust performance.
High forward current capacity of 35 amperes suited for demanding power conversion.
Peak non-repetitive forward surge current of 400 amperes to withstand transient overloads.
Screw mount type and GBPC package for secure and easy installation.
Flat 4-pin configuration designed for single-phase operation and versatile mounting.
Wide operating temperature range from -55°C to 150°C for harsh environments.
Low peak forward voltage drop of 1.1 volts optimizing power efficiency.
Low peak reverse current of 5 microamperes minimizing leakage and standby losses.

Product Description

Vishay GBPC3506-E4/51 is a Bridge Rectifier designed for efficient AC to DC conversion with a peak reverse repetitive voltage of 600 V and a continuous forward current of 35 A. This 4-pin single configuration device features a GBPC package and screw mount type which facilitate straightforward assembly in industrial, laboratory, and electronic power supply systems.

Designed with a glass passivated chip junction and universal 3-way terminals allowing push-on, wrap around, or solder connections, it supports high durability and thermal performance. The rectifier withstands peak forward surge currents up to 400 A, ensuring reliability under transient overload conditions.

The device operates reliably within a temperature range of -55°C to 150°C, suited for demanding environments commonly found in manufacturing and power electronics. Its minimal peak forward voltage of 1.1 V reduces energy loss, contributing to enhanced overall system efficiency. The low peak reverse current (5 μA) further reduces leakage power dissipation.

With compact dimensions (28.8 mm x 28.8 mm x 7.62 mm), it occupies minimal PCB area, making it suitable for space-constrained designs. It does not carry any automotive certifications or special approvals but is built to industrial standards ensuring consistent performance.

Peak reverse voltage: 600 V. Forward current: 35 A continuous. Surge current tolerance: 400 A peak. Screw mount with GBPC package. Single phase, 4-pin configuration. Operating temperature: -55°C to 150°C. Peak forward voltage: 1.1 V.

Peak reverse current: 5 μA. Dimensions: 28.8 mm length, 28.8 mm width, and 7.62 mm height.

This bridge rectifier is ideal for use in power supplies, industrial controls, manufacturing equipment, and electronic devices requiring robust and efficient AC to DC rectification. Its design supports ease of integration into existing electronic assemblies and power systems.
