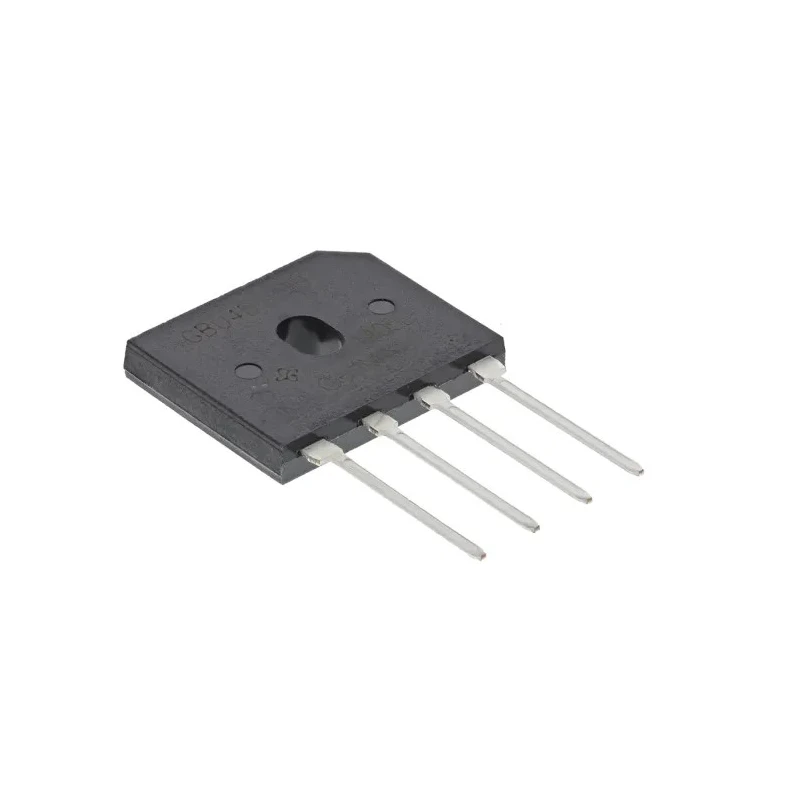

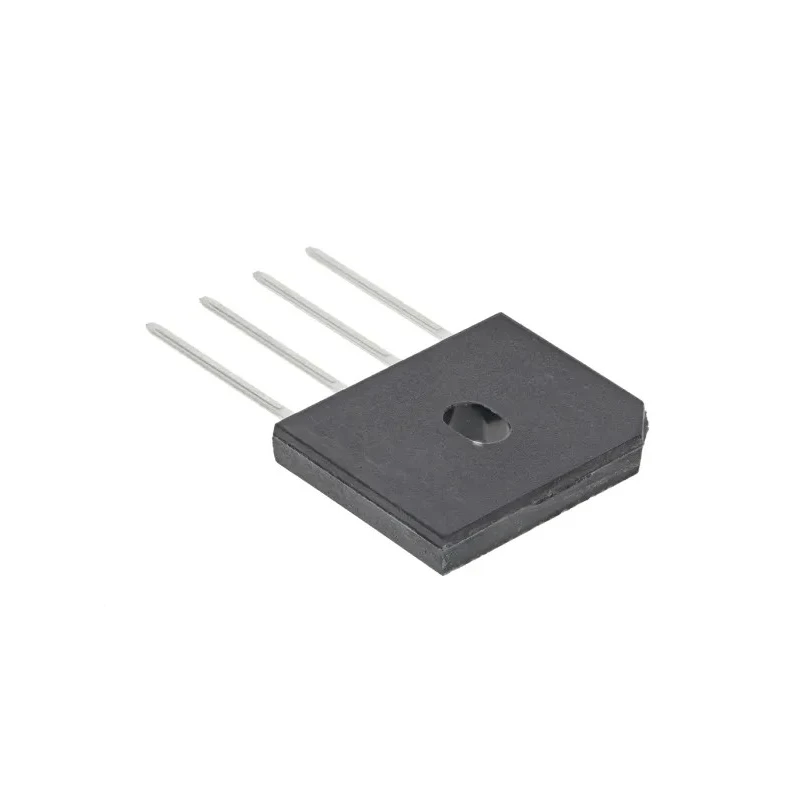

Vishay Bridge Rectifier, 200 V Peak Reverse Repetitive Voltage, 150 A Peak Non-Repetitive Forward Surge Current GBU4D-E3/45

Vishay GBU4D-E3/45 Bridge Rectifier is a high-performance semiconductor component designed for converting alternating current (AC) inputs to direct current (DC) outputs through full-wave rectification. It features a peak reverse repetitive voltage rating of 200 V and can withstand a peak non-repetitive forward surge current up to 150 A. The device has a forward current rating of 4 A and operates reliably in a temperature range from -55°C to 150°C.

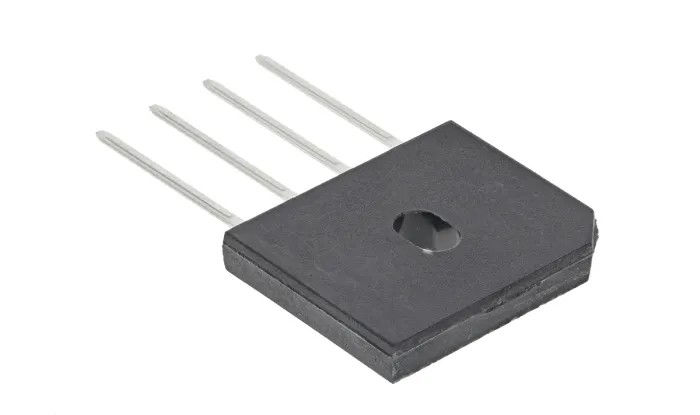

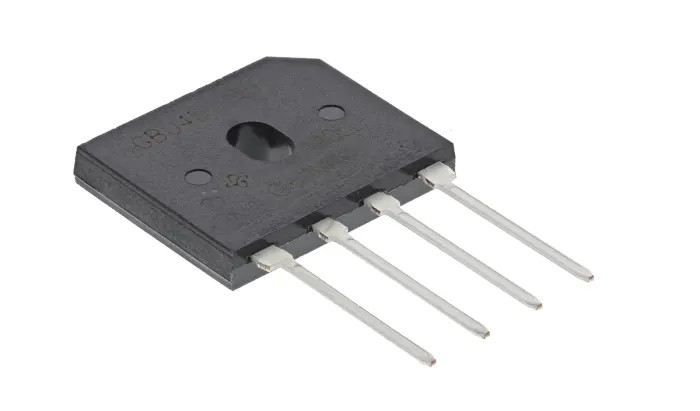

The rectifier is packaged in a compact GBU type suitable for through-hole mounting on printed circuit boards, featuring 4 pins and a single-phase diode configuration. Its glass passivated junction technology ensures enhanced reliability and robustness under surge current conditions, making it ideal for use in power supply and electronic component assemblies.

With dimensions of 22.3 mm length, 3.56 mm width, and 18.8 mm height, it offers an economical and space-saving design for electronic manufacturing. The device features a low peak forward voltage of 1 V which contributes to improved electrical efficiency. Although it lacks automotive certification, it supports a wide operating temperature range suitable for various industrial applications.

This Vishay diode bridge rectifier is tailored for industrial, laboratory, and commercial electronics where reliable, efficient rectification is required. Its through-hole mount design facilitates easy installation into various PCB designs.

The rectifier is housed in a GBU package suitable for through-hole PCB mounting. Peak forward voltage is low at 1 V, improving efficiency. High surge current capability of 150 A ensures robustness in transient conditions.

Compact dimensions: length 22.3 mm, width 3.56 mm, and height 18.8 mm. The diode configuration supports single-phase operation with 4 pins. Suitable for industrial electronic components and power supply applications. No automotive certification but meets high operating temperature range up to 150°C.

Glass passivated junction technology enhances reliability and thermal performance. Ideal for PCB through-hole mounting in power electronics and semiconductor applications. Explore Vishay brand products and Bridge Rectifier categories for more semiconductor solutions at EnvMart.
