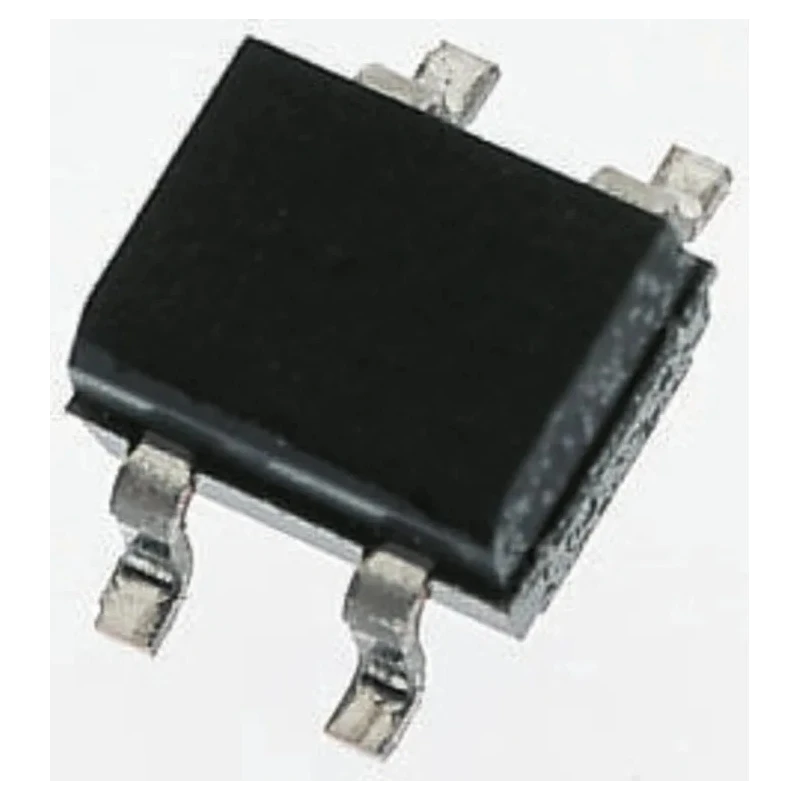

Vishay Bridge Rectifier 800 V 30 A Surface Mount 4-Pin DFS Package DF08SA-E3/77

Vishay DF08SA-E3/77 is a high-performance bridge rectifier designed for converting alternating current (AC) input signals into direct current (DC) output with full-wave rectification. Housed in a compact DFS surface mount package, this 4-pin single configuration device supports a peak reverse repetitive voltage of 800 V and forward current of 1 A, making it suitable for PCB surface mount applications in various electronics and industrial systems.

The bridge rectifier features a peak forward voltage of 1.1 V and extremely low peak reverse current of 5 μA, which enhances efficiency and reduces power losses. It can withstand surge currents up to 30 A, providing robustness for demanding electrical environments. The operational temperature range is broad, ensuring functionality from -55°C to 150°C.

Its compact form factor with dimensions 8.51 mm (length) × 6.5 mm (width) × 3.3 mm (height) makes it ideal for automated placement and PCB reflow soldering processes, minimizing PCB space without compromising electrical performance.

Vishay bridge rectifiers are engineered for reliability and durability, suitable for use in power supplies, industrial electronics, automotive electronics (non-automotive standard), and other equipment requiring efficient AC to DC conversion.

The device’s robust construction supports high surge current capability. Low DC reverse current minimizes leakage and enhances device reliability. Perfect for compact PCB designs requiring surface mount bridge rectifiers.

Complies with UL file E54214 approvals, ensuring safety and quality standards. Explore the full range of Vishay Bridge Rectifiers and related semiconductor components in our extensive electronics catalog at EnvMart.
