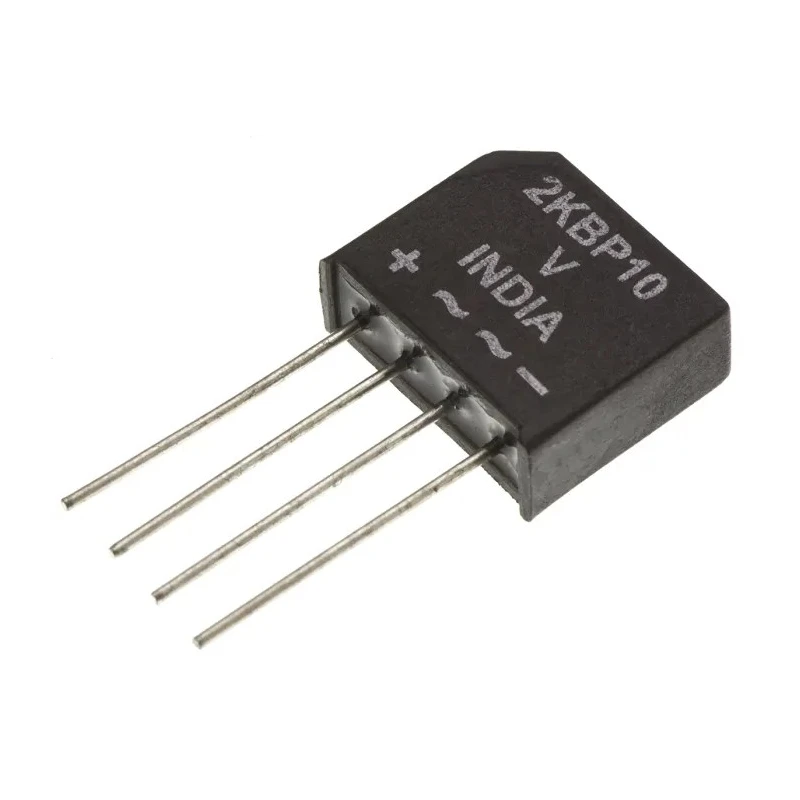

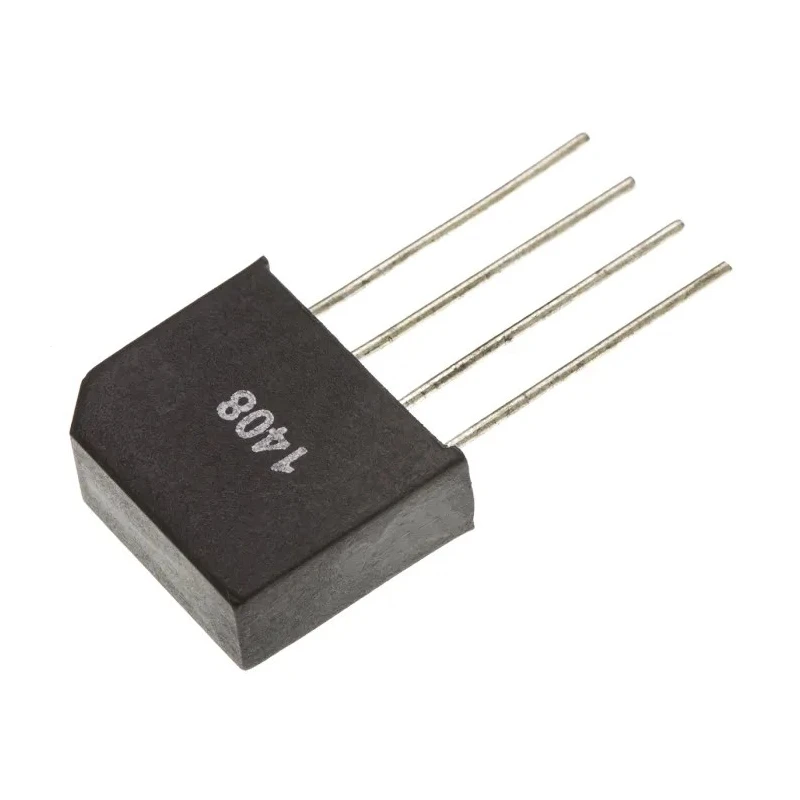

Vishay Bridge Rectifier 100 V 63 A 4-Pin Single Through Hole D-44 Package VS-2KBP01

Vishay VS-2KBP01 Bridge Rectifier is a high-performance electronic component designed to provide full-wave rectification for power conversion applications. Rated for a peak reverse repetitive voltage of 100 V and a forward current of 2 A, this 4-pin single-phase diode bridge leverages a compact D-44 through-hole package to offer reliable, efficient AC to DC conversion in industrial, consumer, and electronic equipment.

The rectifier features a peak non-repetitive forward surge current rating of 63 A, enabling robust transient performance and enhanced durability under surge conditions. Engineered for versatility, it operates effectively within a wide temperature range from -40°C to 150°C, ensuring stable operation in harsh environments and demanding applications.

Physical dimensions are optimized for PCB mounting with a length of 17.5 mm, height of 15 mm, and width of 6.8 mm, facilitating compact circuit designs without compromising thermal management. The device’s encapsulated construction and diode arrangement maintain consistent polarity outputs regardless of input AC polarity, ideal for general power supply and industrial automation use.

Peak forward voltage is 1 V, ensuring minimal voltage drop during conduction. The device exhibits a minimal peak reverse current of 10 μA, underscoring efficiency and reduced leakage. While it does not carry specific automotive certifications, the VS-2KBP01 series is well suited for a broad spectrum of industrial and consumer electronics requiring durable semiconductor solutions.

Designed for PCB mounting with through-hole 4-pin D-44 package. Rated for 100 V peak reverse voltage and 2 A forward current. Peak surge current capacity of 63 A endures transient surges. Operates within -40°C to 150°C temperature range for reliability.

Compact dimensions optimize board space and thermal performance. Encapsulated bridge rectifier providing full-wave rectification. Low peak forward voltage of 1 V reduces power loss. Minimal reverse leakage current at 10 μA enhances efficiency.

Suitable for industrial and consumer power conversion applications. Part of the VS-2KBP series delivering consistent performance.

Choose Vishay VS-2KBP01 Bridge Rectifier for applications demanding reliable AC to DC conversion with high surge transient tolerance in compact form factors. Explore more electronic components in the Semiconductor category on EnvMart to complement your project requirements.
