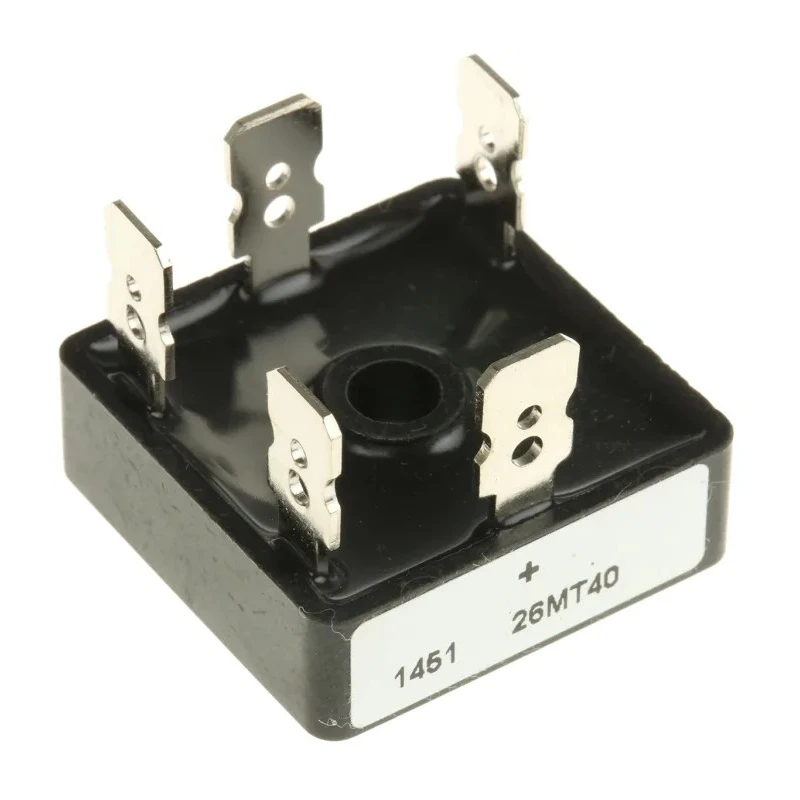

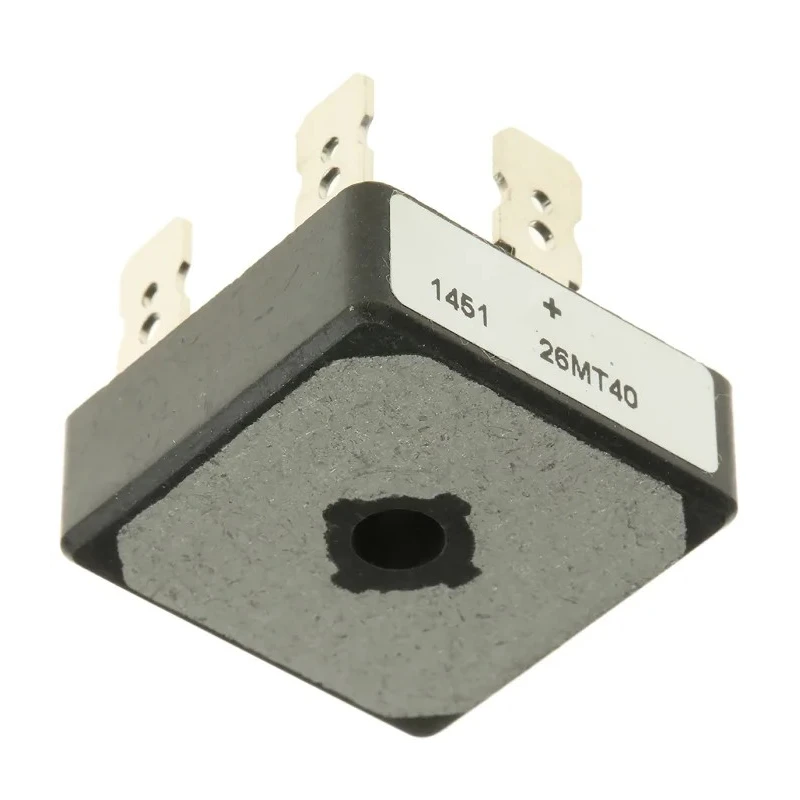

Vishay Bridge Rectifier 400 V 375 A 5-Pin Single VS-26MT40

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 400 V 375 A 5-Pin Single VS-26MT40

Name: Vishay Bridge Rectifier 400 V 375 A 5-Pin Single VS-26MT40
Brand: Vishay
SKU: 214506
Price: 19.02 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	10mm
Length	28.5mm
Model	VS-26MT40
Width	28.5mm
Mount Type	Through Hole
Series	VS-26MT
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	D-63
Minimum Operating Temperature	-55°C
Number of Phases	3
Pin Count	5
Peak Reverse Repetitive Voltage Vrrm	400V
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	375A
Forward Current If	25A
Peak Forward Voltage Vf	1.26V
Universal, 3-way terminals	Push-on, wrap around or solder

Key Features

Rated for a peak reverse repetitive voltage of 400 V.
Supports a forward current of 25 A and a peak surge current of 375 A.
Features a 5-pin configuration with push-on, wrap around, or solder universal 3-way terminals.
Compact D-63 package with dimensions 28.5 mm length, 28.5 mm width, and 10 mm height.
Operates over a wide temperature range from -55°C to 150°C.
Electrically insulated case with high thermal conductivity for efficient heat dissipation.
Designed with excellent power-to-volume ratio, suitable for space-constrained industrial applications.
No automotive standard compliance; general use in industrial and electronic component assemblies.

Product Description

Vishay VS-26MT40 Bridge Rectifier 400 V 375 A 5-Pin Single is engineered for converting alternating current (AC) inputs into direct current (DC) output in three-phase full-wave rectification applications. It consists of six diodes arranged in a bridge circuit configuration, ensuring output polarity remains constant regardless of input polarity.

Housed in a compact D-63 through-hole package measuring 28.5 mm by 28.5 mm by 10 mm, this rectifier offers universal 3-way terminals that are compatible with push-on, wrap-around, or solder mounting techniques. Its electrically insulated case delivers high thermal conductivity, facilitating excellent heat dissipation and reliable operation at maximum temperatures up to 150°C.

The rectifier supports a continuous forward current of 25 A and can handle peak non-repetitive forward surge currents up to 375 A, making it suitable for demanding industrial and electronic power conversion applications. It features a peak reverse repetitive voltage rating of 400 V, ensuring protection against voltage spikes and surges.

Key electrical characteristics include a peak forward voltage of 1.26 V and a peak reverse current of only 200 microamperes, contributing to energy efficiency in power circuitry. The device is designed with an excellent power-to-volume ratio, allowing installation in compact assemblies where space is limited.

With its robust construction and thermal performance, the VS-26MT40 is ideal for industrial, power supply, manufacturing, and electronic equipment applications requiring reliable three-phase rectification.

Rated peak reverse voltage of 400 V. Forward current capacity of 25 A with 375 A surge tolerance. Universal mounting terminals for versatile installation. Compact D-63 package optimized for thermal dissipation. Wide operating temperature range from -55°C up to 150°C.

Electrically insulated high thermal conductivity case. Low peak forward voltage of 1.26 V for efficient operation. Low peak reverse leakage current of 200 μA. Three-phase bridge rectifier configuration. Designed for industrial quality and reliability.
