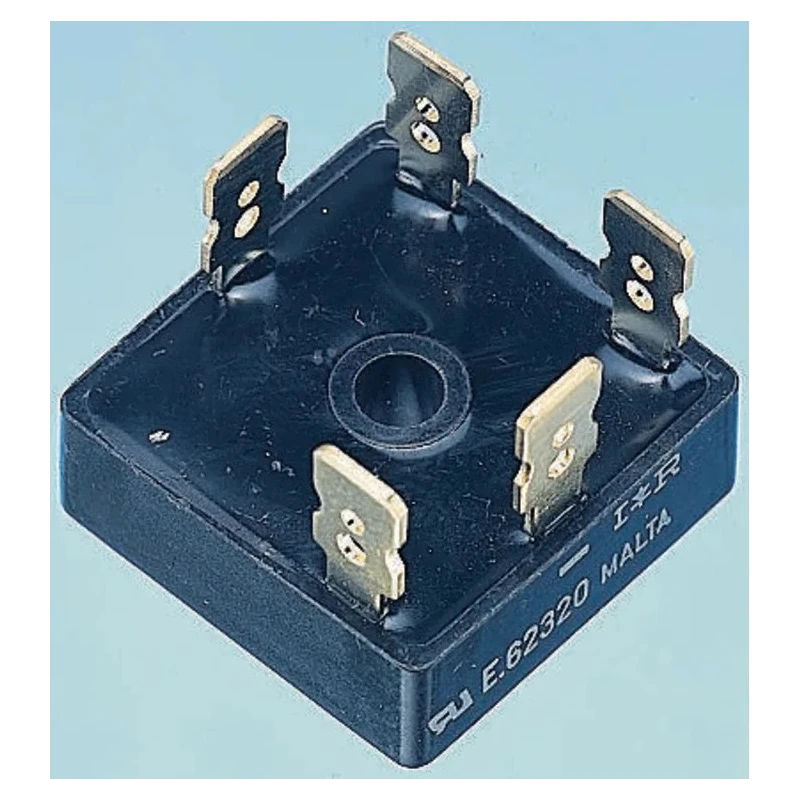

Vishay Three Phase Bridge Rectifier, 1000 V Peak Reverse Voltage, 375 A Peak Surge Current, 5-Pin Single VS-26MT100
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 10mm |
| Length | 28.5mm |
| Model | VS-26MT100 |
| Width | 28.5mm |
| Mount Type | Through Hole |
| Series | VS-26MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-63 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 3 |
| Pin Count | 5 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 375A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1.26V |
| Universal, 3-way terminals | Push-on, wrap around or solder |
Key Features
- Features a through hole D-63 package type for robust mounting.
- Operates reliably between -55°C and 150°C maximum temperature.
- Equipped with universal 3-way push-on, wrap-around, or solder terminals.
- Maintains low peak forward voltage of 1.26 V for efficient conduction.
- Designed for industrial use in AC to DC conversion circuits requiring high current handling.
Product Description
Vishay VS-26MT100 is a high-performance three phase bridge rectifier designed for use in industrial, manufacturing, and power electronics applications requiring full-wave AC to DC conversion. The rectifier supports a peak reverse repetitive voltage of 1000 V and a peak non-repetitive forward surge current of 375 A, ensuring robust performance under demanding electrical loads.
The device features a D-63 through-hole mounting package with 5 pins configured for single configuration bridge rectification. The package construction offers high thermal conductivity and an electrically insulated case, facilitating efficient heat dissipation and safe operation up to 150°C maximum operating temperature and down to -55°C minimum operating temperature.
The universal 3-way terminal design supports push-on, wrap-around, or solder attachment methods to suit varied installation preferences. With a peak forward voltage of only 1.26 V and a peak reverse current as low as 200 μA, this rectifier ensures minimal power loss and high efficiency in power supply circuits.
Typical applications include industrial power conversion, three-phase rectification schemes, electronic equipment requiring reliable and compact rectifier solutions, and any environment where durable semiconductor components are needed. The compact 28.5 mm x 28.5 mm footprint and 10 mm height make it suitable for space-constrained designs.
Features a through hole D-63 package type for robust mounting. Operates reliably between -55°C and 150°C maximum temperature. Equipped with universal 3-way push-on, wrap-around, or solder terminals. Maintains low peak forward voltage of 1.26 V for efficient conduction.
Designed for industrial use in AC to DC conversion circuits requiring high current handling.
Vishay products are known for reliability and thermal performance, making the VS-26MT100 series suitable for demanding industrial applications in electrical and electronic sectors. Browse Vishay Bridge Rectifier options at EnvMart for compatible semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VS-26MT100 has a peak reverse repetitive voltage of 1000 V.
It operates reliably at a maximum temperature of 150°C.
This model features a through hole D-63 package type for robust mounting.
The peak non-repetitive forward surge current is rated at 375 A.
The dimensions are 28.5 mm in length, 28.5 mm in width, and 10 mm in height.
It is equipped with universal 3-way terminals that support push-on, wrap-around, or solder attachment methods.
The minimum operating temperature is -55°C.
The peak forward voltage is maintained at 1.26 V, ensuring efficient conduction.
The forward current rating is 25 A.
It is designed for industrial use in AC to DC conversion circuits requiring high current handling.
The peak reverse current is as low as 200 μA.
This model belongs to the VS-26MT series.
