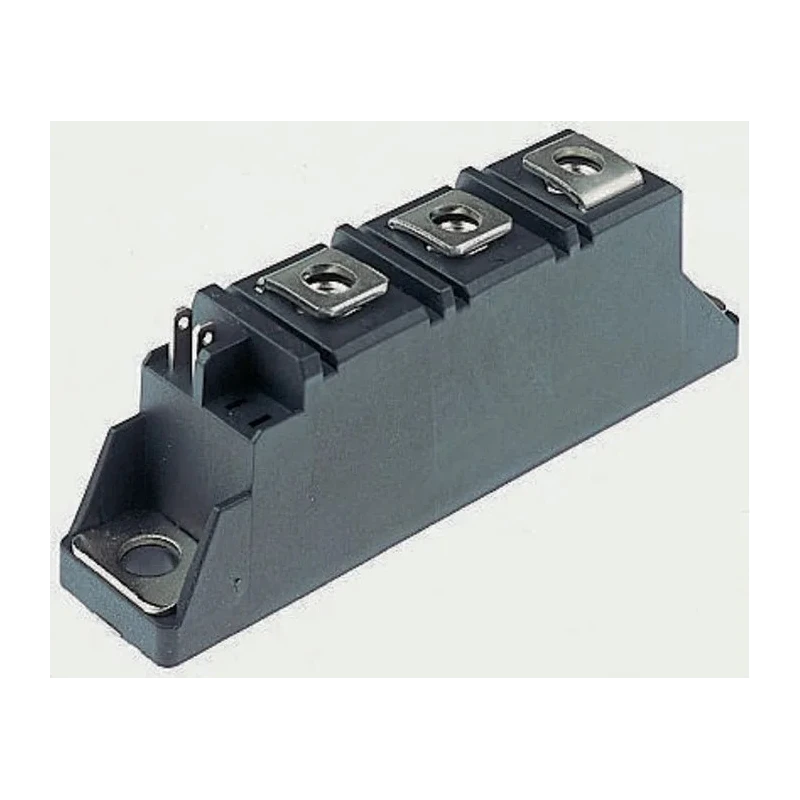

Vishay Thyristor Module 1200 V 1.2 kA, 60 A Average Current, 270 mA Gate Trigger Current, TO-240AA 5-Pin VS-VSKH56/12

Vishay VS-VSKH56/12 is a high-performance Thyristor Module designed for industrial power control applications. Rated for a repetitive peak reverse voltage of 1200 V and a surge current capacity of 1.2 kA, this module operates continuously at an average on-state current of 60 A. Its encapsulated TO-240AA package features a 5-pin configuration tailored for panel mounting, offering robust mechanical stability and efficient electrical isolation.

The device requires a low maximum gate trigger current of 270 mA and a gate trigger voltage of 4 V, facilitating reliable switching in demanding environments. With a maximum holding current of 200 mA and a peak on-state voltage of 1.7 V, the module ensures minimal conduction losses and effective thermal management. The maximum operating temperature rating of 125°C makes it suitable for use in harsh industrial settings.

Measuring compactly at 92 mm in length, 30 mm in height, and 22.6 mm in width, the module features low thermal resistance characteristics essential for maintaining optimal performance during continuous operation. Its applications include battery chargers, welding machines, electroplating equipment, regulated power supplies, as well as temperature and speed control circuits in automation and manufacturing industries.

This solid-state semiconductor device consists of four layers of alternating N and P-type material, functioning as a bistable switch that conducts upon receiving a gate current trigger and continues to operate while forward biased. Known synonymously as Silicon-Controlled Rectifiers (SCRs), these thyristors are integral components in controlling high power loads electronically with precision and reliability.

Vishay VS-VSKH56/12 contributes to increased production efficiency by enabling controlled switching and power management in industrial automation. EnvMart offers this product in its Semiconductor category for professionals seeking durable and precise electronic components.

Average on-state current rating of 60 A for continuous operation. Low gate trigger current of 270 mA for efficient switching. Encapsulated TO-240AA package with 5 pins for panel mounting. Peak on-state voltage of 1.7 V ensures low power loss.

Maximum operating temperature up to 125°C suitable for industrial applications. Designed with low thermal resistance for efficient heat dissipation. Includes maximum holding current of 200 mA and gate trigger voltage of 4 V.

Compact dimensions: 92 mm (L) x 30 mm (H) x 22.6 mm (W). Suitable for battery chargers, welders, plating equipment, and regulated power supplies. Solid-state semiconductor device ideal for speed and temperature control circuits.

Explore our Semiconductor category on EnvMart for high-quality Vishay Thyristor Modules and other power electronic components tailored for industrial and laboratory applications.
