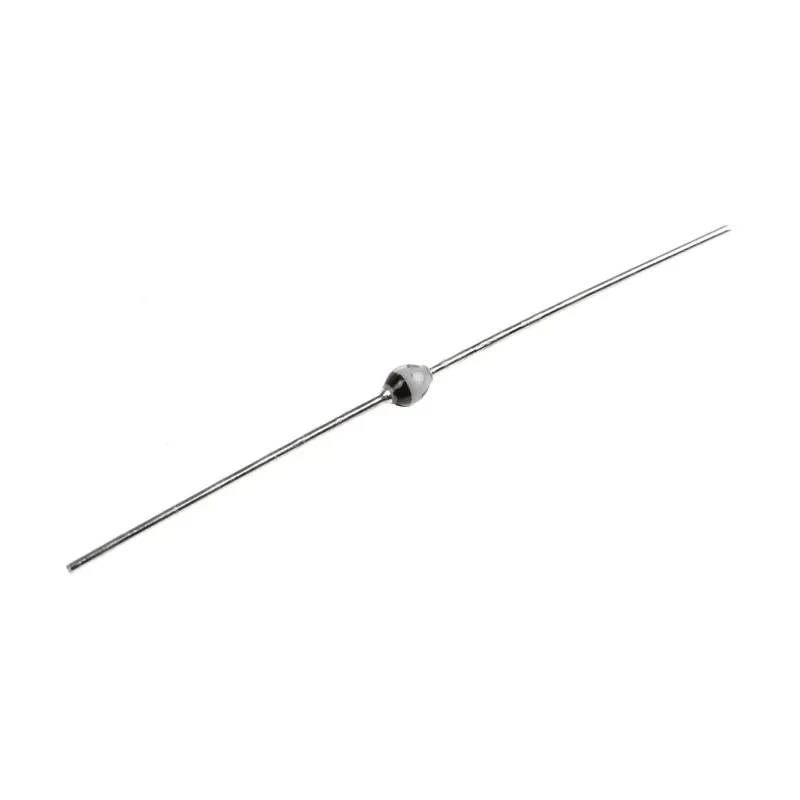

Vishay 600 V 1 A Avalanche Rectifier Diode 2-Pin SOD-57 BYV26C-TAP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 3.6mm |
| Length | 4.2mm |
| Model | BYV26C-TAP |
| Width | 3.6mm |
| Mount Type | Through Hole |
| Series | BYV26C |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-57 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Avalanche |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 2.5V |
| Peak Reverse Recovery Time trr | 30ns |
Key Features
- Supports maximum continuous forward current of 1 ampere.
- Maximum reverse repetitive voltage rated at 600 volts.
- Ultrafast recovery time of 30 nanoseconds for high frequency switching.
- Handles peak non-repetitive forward surge current of 30 amperes.
- Operates over a temperature range from -55°C to 175°C.
- Single diode configuration with through-hole mount.
- Low peak reverse current of 5 microamperes minimizes leakage.
- Maximum forward voltage drop is 2.5 volts.
Product Description
Vishay BYV26C-TAP is a high-performance avalanche rectifier diode engineered for applications requiring fast switching and high voltage endurance. This diode is housed in a 2-pin SOD-57 package with through-hole mounting suitable for robust and reliable printed circuit board assembly.
The device supports a maximum continuous forward current of 1 ampere and withstands peak reverse repetitive voltages up to 600 volts, making it ideal for power supply circuits, inverters, and switching regulators operating in demanding industrial environments.
Its ultrafast recovery time of 30 nanoseconds reduces switching losses and improves efficiency in high-frequency switching applications such as switched-mode power supplies and freewheeling diode functions. The diode also features a peak non-repetitive forward surge current capability of 30 amperes, ensuring resilience against transient current surges.
Operating temperature ranges from -55°C to 175°C allow deployment in a wide range of industrial and commercial environments. The physical dimensions are compact, with a length of 4.2 mm, width and height of 3.6 mm, facilitating efficient PCB space utilization.
The diode has a low peak reverse current of 5 microamperes that minimizes leakage currents for better energy efficiency. The maximum forward voltage drop of 2.5 volts ensures low power dissipation during operation. The single diode configuration makes it straightforward to incorporate into electronic circuit designs requiring avalanche rectifiers.
Package type SOD-57 and through hole mount support straightforward assembly with standard manufacturing processes. No certifications for automotive standards are present, indicating it is designed for industrial, laboratory, and electronic component applications.
This diode is suitable for use in electronic manufacturing, power electronics, industrial control systems, instrumentation, and other commercial and industrial applications where high voltage avalanche diodes are required.
Browse other Vishay semiconductor components and upgrade your designs with reliable and efficient discrete semiconductors available on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1 ampere.
It is rated for a peak reverse repetitive voltage of 600 volts.
The ultrafast recovery time is 30 nanoseconds, which is suitable for high frequency switching applications.
This model can handle a peak non-repetitive forward surge current of 30 amperes.
It operates over a temperature range from -55°C to 175°C.
The diode has a length of 4.2 mm, a width of 3.6 mm, and a height of 3.6 mm.
The maximum forward voltage drop is 2.5 volts, which helps minimize power dissipation during operation.
It uses a through-hole mounting type, suitable for standard PCB assembly.
The peak reverse current is 5 microamperes, which minimizes leakage currents.
It features a single diode configuration, making it easy to integrate into electronic circuit designs.
This diode is suitable for power supply circuits, inverters, switching regulators, and other industrial applications.
The diode is housed in a SOD-57 package type, which facilitates efficient PCB space utilization.
