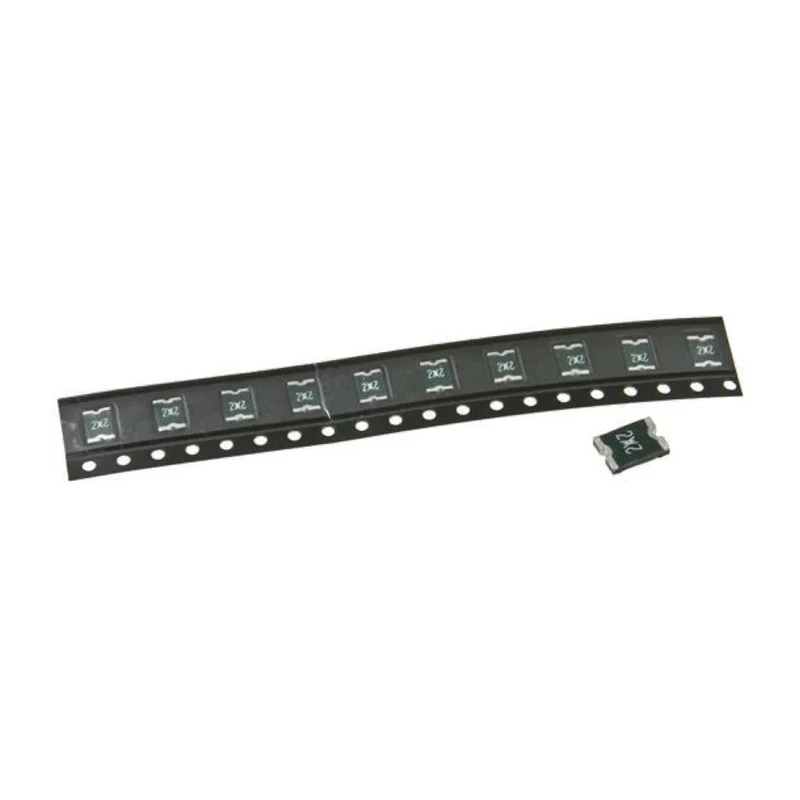

Littelfuse 2 A Resettable Fuse, 8V DC PolySwitch Mini SMDC Series MINISMDC200F
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 8V dc |
| Brand | Littelfuse |
| Height | 1.22mm |
| Length | 4.73mm |
| Model | MINISMDC200F |
| Width | 3.41mm |
| Current Rating | 2A |
| Series | PolySwitch |
| Maximum Operating Temperature | 85°C |
| Trip Current | 4A |
| Power Dissipation | 1W |
| Terminal Material | Tin Plated |
| Time to Trip | 5s |
| Minimum Resistance | 0.02Ω |
| Maximum Resistance | 75mΩ |
Key Features
- Designed for automatic reset and protection against overcurrent conditions.

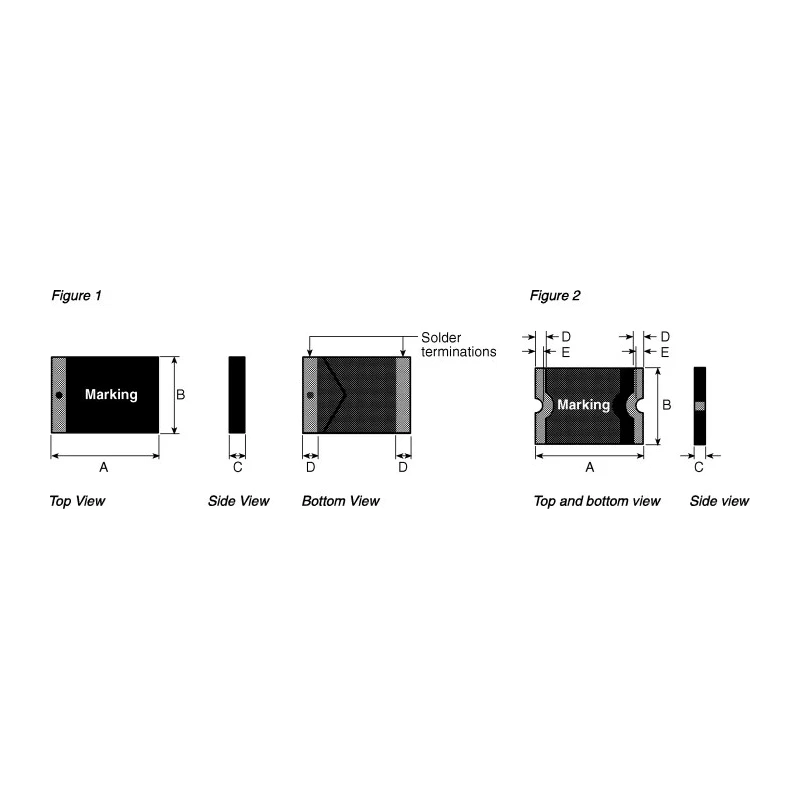

- Compact surface-mount device with dimensions 4.73mm x 3.41mm x 1.22mm.
- Rated for 2A hold current and 4A trip current with 5-second time to trip.
- Operates up to a maximum temperature of 85°C with 1W power dissipation.
- Constructed with tin-plated terminals for reliable electrical connection.
- Low resistance of 0.02Ω (min) to 75mΩ (max) ensures minimal voltage drop.
- Suitable for use in computer, automotive, multimedia, and consumer electronics.
- Halogen-free material compliant with RoHS standards for environmental safety.
Product Description
Littelfuse MINISMDC200F 2 A Resettable Fuse, 8V DC from the PolySwitch Mini SMDC series offers effective circuit protection with automatic reset functionality. This surface-mount device rapidly switches from low to high resistance during overcurrent events and returns to normal operation when the fault clears and power is removed.
The compact dimensions of 4.73mm length, 3.41mm width, and 1.22mm height enable integration in space-constrained electronic circuits. It has a hold current rating of 2A and trip current of 4A, with a fast 5-second time to trip to safeguard sensitive components.
The fuse features tin-plated terminals ensuring stable electrical contact, and operates reliably up to 85°C maximum temperature. Its power dissipation capability is rated at 1 watt, making it suitable for low voltage applications up to 8V DC.
Made with halogen-free materials, this resettable fuse meets environmental standards including RoHS compliance, supporting eco-friendly designs. It is ideal for use in computers, automotive electronics, multimedia devices, portable and consumer electronic equipment, medical instruments, and instrumentation controls.
The Mini SMDC series provides maintenance-free, automatic reset protection requiring no fuse holder. This significantly improves production efficiency by allowing direct PCB mounting and eliminates manual fuse replacement.
Designed for automatic reset and protection against overcurrent conditions. Compact surface-mount device with dimensions 4.73mm x 3.41mm x 1.22mm. Rated for 2A hold current and 4A trip current with 5-second time to trip.
Operates up to a maximum temperature of 85°C with 1W power dissipation. Constructed with tin-plated terminals for reliable electrical connection. Low resistance of 0.02Ω (min) to 75mΩ (max) ensures minimal voltage drop. Suitable for use in computer, automotive, multimedia, and consumer electronics.
Halogen-free material compliant with RoHS standards for environmental safety. Explore a wide range of high-quality electrical protection devices including Resettable Fuses for diverse industrial, laboratory, and commercial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this model is 2A.
The trip current for the MINISMDC200F is 4A.
This unit has dimensions of 4.73mm in length, 3.41mm in width, and 1.22mm in height.
The maximum operating temperature for the MINISMDC200F is 85°C.
The time to trip for this model is 5 seconds.
It has a power dissipation capability of 1 watt.
The terminals of this fuse are constructed from tin-plated material for reliable electrical connection.
The minimum resistance is 0.02Ω and the maximum resistance is 75mΩ.
Yes, it is made from halogen-free materials and is compliant with RoHS standards.
This resettable fuse belongs to the PolySwitch Mini SMDC series.
It is rated for a maximum voltage of 8V DC.
