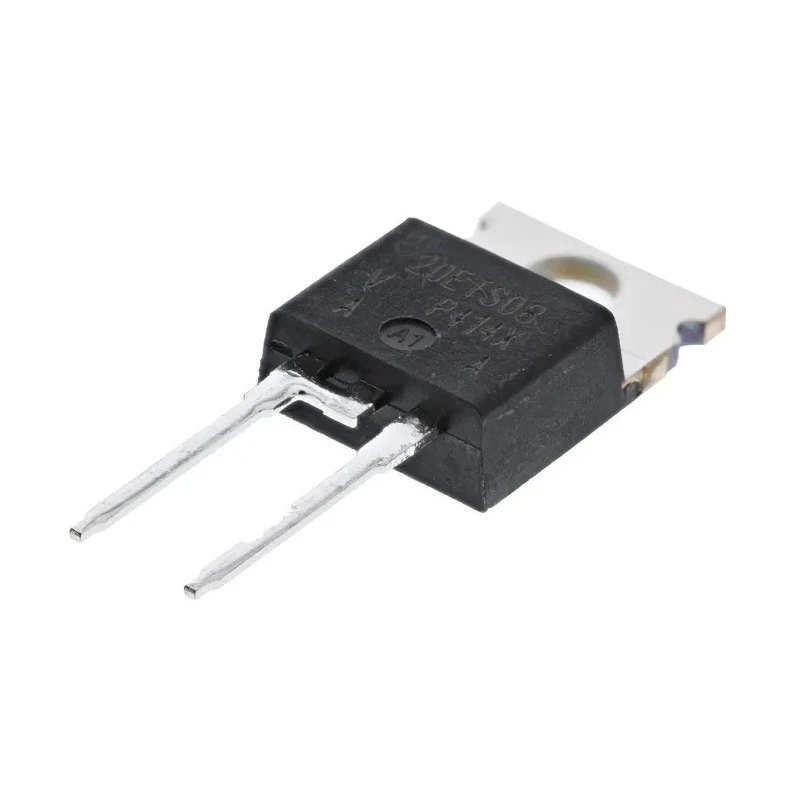

Vishay Standard Recovery Power Diode 800 V 20 A Through Hole TO-220 VS-20ETS08-M3

Vishay VS-20ETS08-M3 is a high-efficiency standard recovery power diode designed for industrial and electronic component applications. Featuring a robust continuous forward current rating of 20 amps and a peak reverse voltage of 800 volts, this through hole diode is housed in a durable TO-220 package that is industry standard for ease of mounting and thermal management.

Its single diode configuration and 2-pin layout provide a straightforward solution for rectification needs in power supply, electronic assemblies, and circuit protection applications. The maximum forward voltage of 1.1 volts ensures low power dissipation and improved overall efficiency.

Designed to operate reliably in harsh environments, it supports a wide operating temperature range of -40°C up to 150°C, making it suitable for temperature demanding industrial sectors including manufacturing, automotive electronics (non-certified), and consumer electronics.

With a peak non-repetitive forward surge current capability of 300 amps, the diode can endure transient overloads, enhancing system durability and safety. Its minimal peak reverse current of 1 mA further improves performance by reducing leakage.

The compact TO-220 package measures 29.37 mm in height, 10.51 mm in length, and 4.65 mm in width, facilitating easy integration into densely populated circuit boards or assemblies.

This diode is designed for through hole mounting for secure and reliable installation. Maximum continuous forward current rating is 20 amperes ensuring robust current handling. Features a peak reverse repetitive voltage of 800 volts for high voltage protection.

Maximum forward voltage drop of 1.1 volts improves efficiency and reduces power loss. Wide operating temperature range from -40°C to 150°C supports varied industrial applications. Capable of handling peak non-repetitive forward surge currents up to 300 amperes.

Compact TO-220 package allows thermal management and ease of mounting. Minimal peak reverse current reduces leakage and improves device performance. Single diode configuration and 2 pins provide straightforward rectification.

Suitable for use in power supplies, electronic circuits, and industrial control systems.

This Vishay semiconductor product is ideal for industrial, manufacturing, electronic assembly, and power conversion applications requiring standard recovery diodes with reliable performance and industry trusted specifications. Explore extensive electronic components and semiconductor products on EnvMart for diverse industrial needs.
