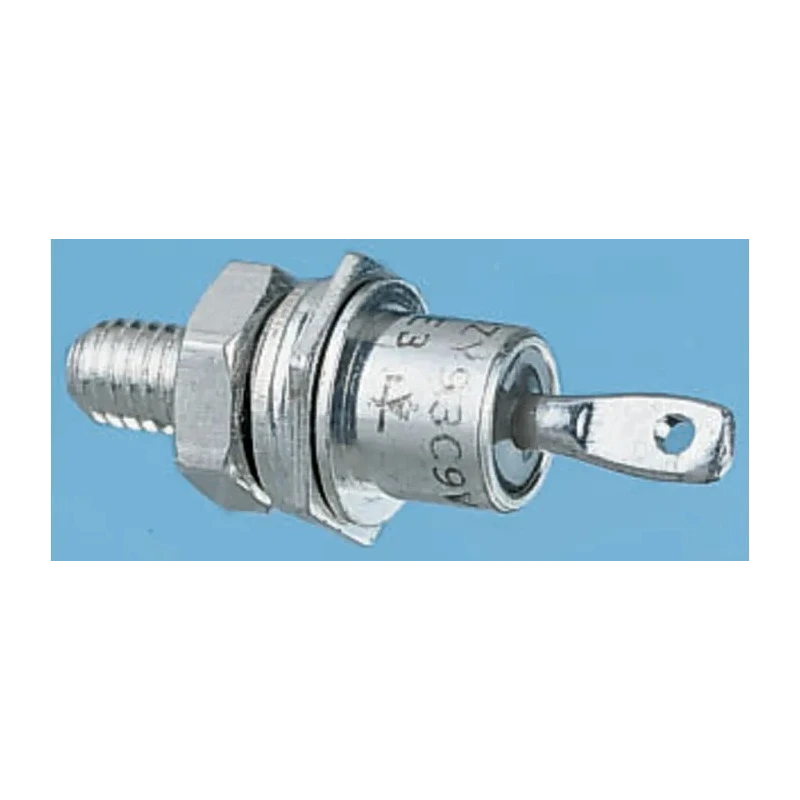

Vishay Standard Recovery Diode 600 V 12 A, Screw Mount, DO-203AA Package VS-12FR60
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-12FR60 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-12F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Standard Recovery Diode |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 1.26V |
| Vishay Diode 2-Pin DO-4 VS-12FR20Brand | Vishay |
| Vishay 800 V 12 A Diode Standard Recovery Diode 2-Pin DO-203AABrand | Vishay |
Key Features
- Designed for high-efficiency power rectification applications.
- Mount type is screw for secure installation.
- 2-pin stud anode diode configuration.
- Maximum continuous forward current of 12 amperes.
- Peak reverse repetitive voltage rating of 600 volts.
- Can operate at temperatures up to 175°C.
- Maximum forward voltage drop of 1.26 volts for reduced power loss.
- Peak non-repetitive forward surge current rating of 280 amperes.
Product Description
Vishay VS-12FR60 is a high-performance standard recovery diode designed for power and electronic circuit rectification in industrial and laboratory applications. It features a voltage rating of 600 V and a maximum continuous forward current of 12 A.
Housed in a robust DO-203AA package, this screw mount diode ensures reliable mechanical stability and easy installation. It adopts a 2-pin stud anode configuration optimized for efficient rectification.
The diode can withstand peak reverse repetitive voltages of 600 V and has a maximum forward voltage drop of 1.26 V, ensuring minimal power loss and heat generation during operation. It is rated for operation at temperatures up to 175°C, suitable for demanding thermal conditions.
Dimensionally compact with length 12.69 mm, diameter 11 mm, width 11 mm, and height 31.8 mm, it fits versatile electronic assemblies. Its peak non-repetitive forward surge current of 280 A provides robustness against sudden current spikes.
Commonly employed in power supply systems, industrial equipment, and electronic devices, the VS-12FR60 standard recovery diode delivers reliable and efficient performance. Its design aligns with Vishay Semiconductor standards ensuring quality and longevity.
Designed for high-efficiency power rectification applications. Mount type is screw for secure installation. 2-pin stud anode diode configuration. Maximum continuous forward current of 12 amperes. Peak reverse repetitive voltage rating of 600 volts.
Can operate at temperatures up to 175°C. Maximum forward voltage drop of 1.26 volts for reduced power loss. Compact dimensions: length 12.69 mm, diameter and width 11 mm, height 31.8 mm. Peak non-repetitive forward surge current rating of 280 amperes.
Industrial and electronic component applications requiring standard recovery diodes. Explore Vishay products and other semiconductor devices on EnvMart for your industrial, laboratory, and commercial electronic projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the VS-12FR60 diode is 12 amperes.
This model has a peak reverse repetitive voltage rating of 600 volts.
The dimensions are as follows: length 12.69 mm, diameter 11 mm, width 11 mm, and height 31.8 mm.
The maximum operating temperature for the VS-12FR60 is 175°C.
This diode uses a screw mount type for secure installation.
The maximum forward voltage drop of the VS-12FR60 is 1.26 volts.
The peak non-repetitive forward surge current rating is 280 amperes.
It features a 2-pin stud anode diode configuration.
The minimum operating temperature for the VS-12FR60 is -65°C.
The peak reverse current for the VS-12FR60 is 12 mA.
This diode is housed in a DO-203AA package.
It is commonly employed in power supply systems, industrial equipment, and electronic devices.
