| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | BZX55C4V7-TAP |
| Mount Type | Through Hole |
| Series | BZX55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 4.7V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 600Ω |

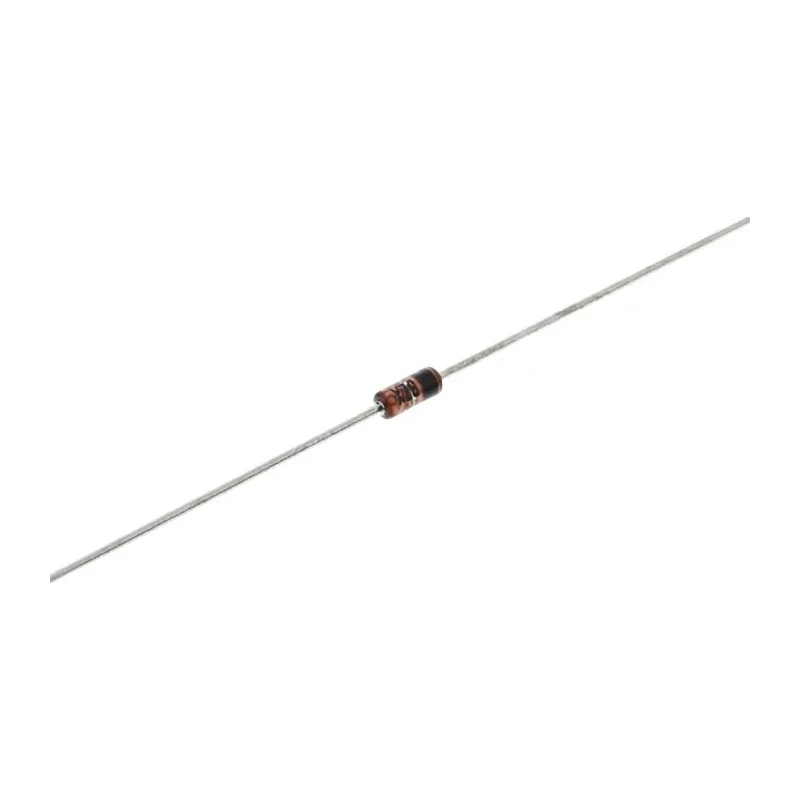

Vishay BZX55C4V7-TAP is a 1.47 V Zener diode designed for voltage regulation applications requiring a nominal Zener voltage of 4.7 V with a maximum power dissipation of 500 mW. It is housed in a 2-pin through-hole SOD-27 package suitable for various industrial and automotive circuits.
This diode features a single diode configuration that delivers stable voltage regulation with a tolerance of ±6%, providing precise voltage control in sensitive electronics. It exhibits a very sharp reverse characteristic with low noise and a minimal reverse leakage current of 10 μA, ensuring efficiency in power circuits.
Designed to operate reliably from -65°C to 175°C, this diode meets RoHS compliance and holds AEC-Q101 automotive standards, making it suitable for automotive and industrial environments requiring high reliability and stability.
The diode's compact form with a length of 3.9 mm and height of 1.7 mm allows for space-efficient PCB layouts. Its maximum Zener impedance of 600 Ω at a test current of 5 mA ensures consistent voltage regulation under specified conditions.
This Vishay Zener diode is well suited for electronic manufacturing, automotive systems, power regulation, and industrial control applications requiring robust and precise voltage stabilization.
This diode features a single diode configuration ideal for voltage regulation applications. Rated for continuous operation between -65°C to 175°C ensuring stable performance in varied environments. The 2-pin through-hole SOD-27 package facilitates easy PCB mounting and integration.
Maximum Zener impedance of 600 Ω contributes to precise voltage stabilization. Low reverse leakage current of 10 μA enhances overall diode efficiency and reliability. Test current of 5 mA defines the operating point for Zener voltage performance testing.
Complies with RoHS standards and is AEC-Q101 automotive qualified, ensuring compliance and quality. Compact dimensions with a length of 3.9 mm and height of 1.7 mm optimize space usage on circuit boards. Explore further Vishay semiconductor components and Zener Diodes at EnvMart for advanced electronic component needs.
