| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | BZX55C5V6-TAP |
| Mount Type | Through Hole |
| Series | BZX55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 5.6V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 450Ω |

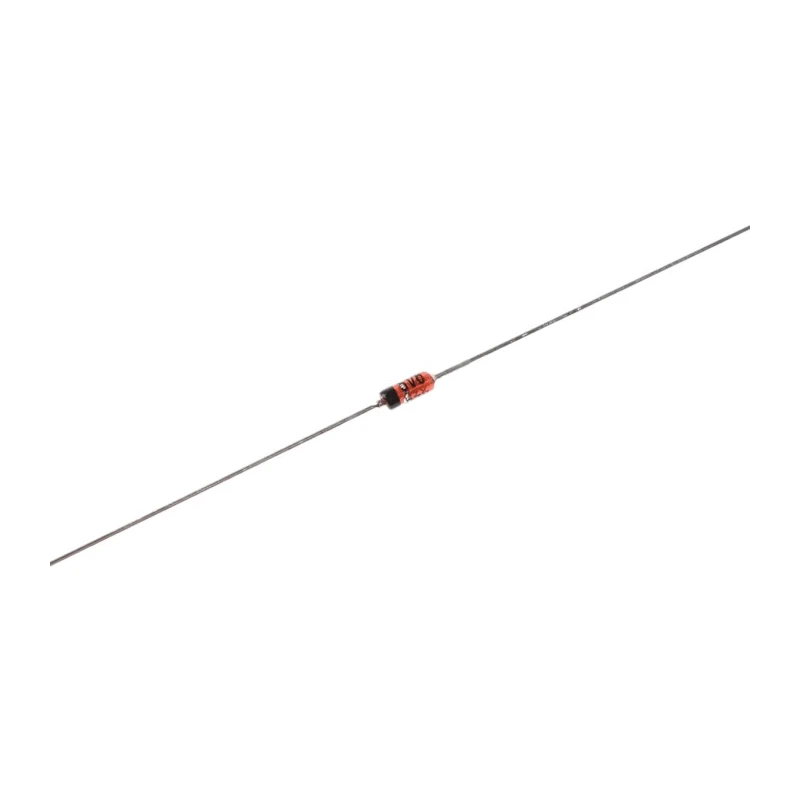

Vishay BZX55C5V6-TAP is a high reliability 5.6 V Zener diode designed for voltage regulation in electronic circuits. Housed in a 2-pin SOD-27 through-hole package, this diode supports a maximum power dissipation of 500 mW, making it ideal for precision small signal stabilisation tasks in both industrial and automotive applications.
The diode configuration is single element, optimized for sharp reverse characteristics with very low reverse leakage current of only 2 microamperes, enhancing overall circuit efficiency. It operates effectively across a broad temperature range from -65°C to 175°C, complying with stringent automotive AEC-Q101 standards and RoHS directives.
Measuring just 3.9 mm in length and 1.7 mm in height, this compact component ensures minimal PCB footprint. The BZX55 series ensures high stability and low noise, featuring a typical voltage temperature coefficient of 0.05% per °C, suitable for environments demanding consistent voltage regulation under varying temperatures.
Applications include industrial power supply regulation, automotive electronics, electronic manufacturing, laboratory equipment, and consumer electronics. The through-hole mount configuration simplifies assembly and maintenance in diverse circuit designs.
Voltage regulator for stable 5.6 V output. 500 mW power dissipation for small signal applications. IEC-compliant through-hole SOD-27 package. Low leakage current and high stability. Wide temperature range and automotive standard qualified.
Compact size suitable for space-constrained PCBs. Sharp reverse characteristic and low noise operation. Designed for industrial, automotive, and laboratory use.
Choose Vishay BZX55C5V6-TAP for reliable and precise voltage regulation in demanding electronic environments. Explore more semiconductor solutions at EnvMart for your next industrial project.
Explore more products in our Zener Diodes category.
