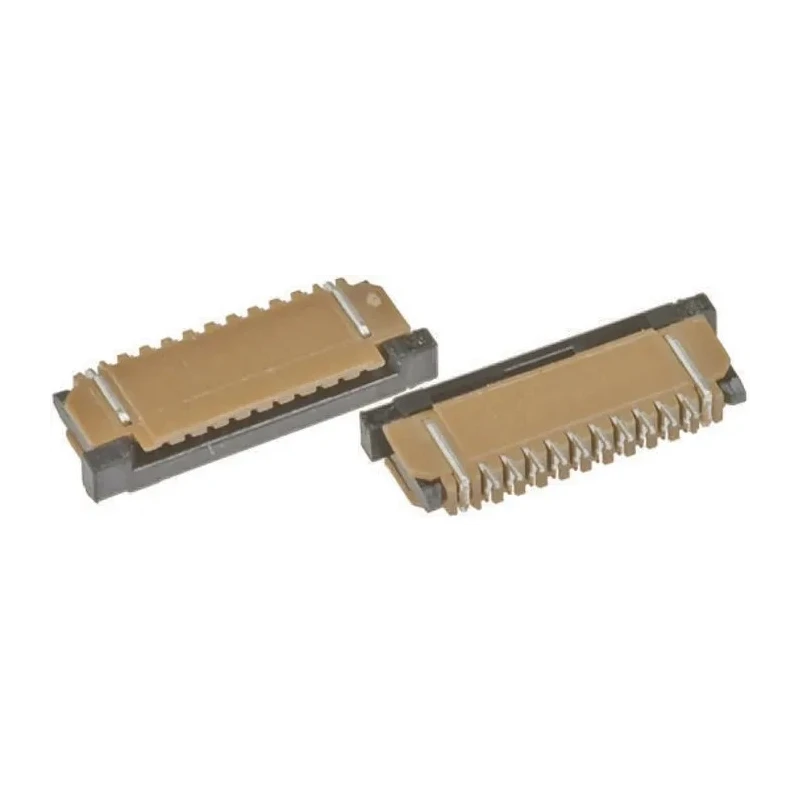

Amphenol Communications Solutions FPC Connector 1 mm Pitch 5 Way Right Angle Female Solder Termination SFW5R-2STE9LF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Communications Solutions FPC Connector 1 mm Pitch 5 Way Right Angle Female Solder Termination SFW5R-2STE9LF

Name: Amphenol Communications Solutions FPC Connector 1 mm Pitch 5 Way Right Angle Female Solder Termination SFW5R-2STE9LF
Brand: Amphenol Communications Solutions
SKU: 208171
Price: 0.71 USD
Availability: InStock



Category FPC Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	Malaysia
Voltage	100, 100V ac
Brand	Amphenol Communications Solutions
Orientation	Right Angle
Current	1A
Model	SFW5R-2STE9LF
Mount Type	Surface
Housing Material	Polysulfone
Contact Material	Phosphor Bronze
Series	SFW-R
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	1mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Female
Connector Gender	Female
Insertion Force	ZIF
Contact Position	Top

Key Features

Constructed with phosphor bronze contact material ensuring good conductivity.
Designed with surface mount type and top contact position for easy PCB integration.
Operates at a current rating of 1A per pin and voltage rating of 100V AC.
Includes a traditional sliding actuator for secure cable holding and zero insertion force mechanism.
Compatible for applications like mobile phones, printers, car multimedia devices, and industrial instrumentation.
Features a polysulfone housing material with tin-plated contacts for durability and corrosion resistance.
Can withstand operating temperatures from -55°C up to a maximum of 105°C.
Manufactured in Malaysia and part of the SFW-R series with single row contacts.

Product Description

Amphenol Communications Solutions SFW5R-2STE9LF is a professional-grade FPC connector with a 1 mm pitch designed for reliable electronic connections in compact devices. This 5-contact right angle female connector utilizes solder termination and surface mount technology for robust and efficient PCB assembly.

Manufactured with phosphor bronze contacts and a durable polysulfone housing, it ensures consistent conductivity and mechanical strength. The contact plating uses tin to resist corrosion, extending product life in demanding environments.

The connector supports an operating current of 1A per contact and can handle voltages up to 100V AC, making it suitable for diverse applications including industrial control systems, instrumentation, mobile phones, printers, and car multimedia devices.

The zero insertion force (ZIF) design minimizes contact wear during cable insertion, with a traditional sliding actuator to secure the cable firmly in place. The product sustains operating temperatures from -55°C to 105°C and features a single row configuration for compactness.

Constructed from phosphor bronze contact material for excellent conductivity. Surface mount type with top positioned contacts facilitating easy PCB integration. Rated for 1A current and 100V AC voltage. Incorporates a zero insertion force design with traditional sliding actuator for secure cable attachment.

Robust polysulfone housing and tin-plated contacts provide durability and corrosion resistance. Operational temperature range from -55°C to 105°C supports a wide range of environments. Single row, right angle female contact configuration enhances compact device compatibility.

Originally manufactured in Malaysia as part of the SFW-R series, the connector adheres to stringent quality standards with no specific certifications declared. It is ideal for electronics manufacturing, industrial equipment, and automotive multimedia applications.
