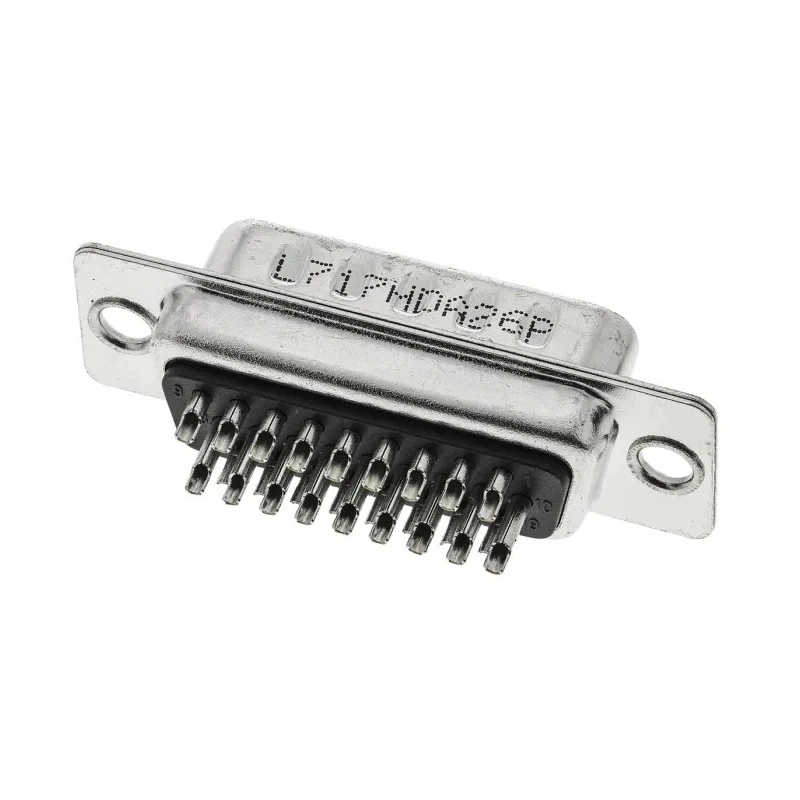

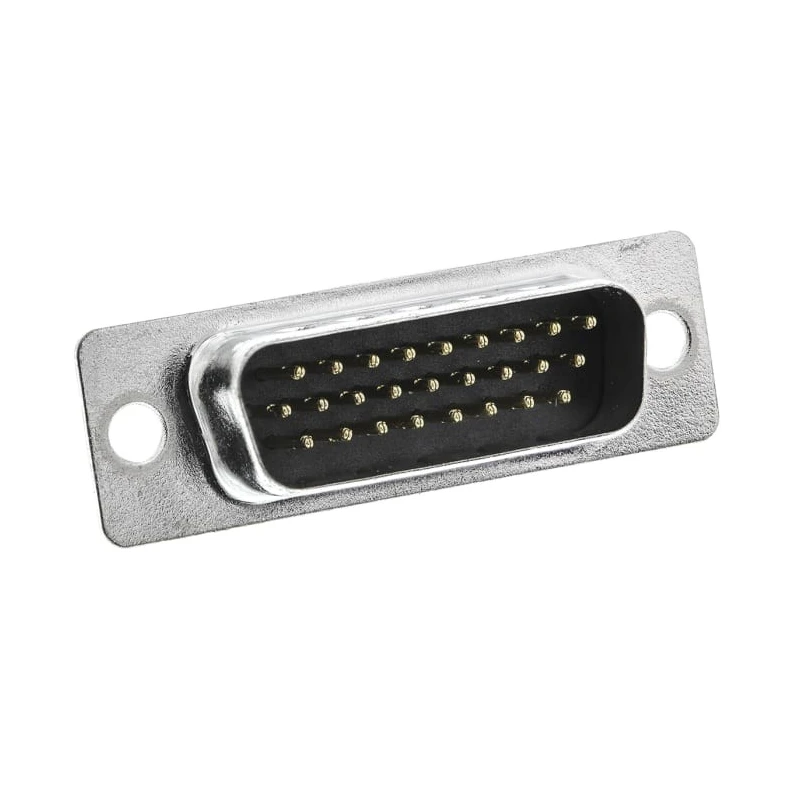

Amphenol Communications Solutions HD 26 Way Straight Through Hole D-Sub Connector Male 250V 3A L717HDA26P
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | L717HDA26P |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | HD |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
| Connectors according to | MIL C24308 - NFC 93425-HE5 |
Key Features
- The connector features a straight orientation and is designed for through-hole mounting.
- It has a steel housing with a tin-plated shell and gold flash plated brass contacts for excellent conductivity.
- Suitable for industrial, telecom, and standard I/O applications requiring high reliability.
- Operating temperature range from -55°C to 125°C ensures durability in diverse environments.
- Termination type is solder cup for secure electrical connections.
- Complies with MIL C24308 and NFC 93425-HE5 standards.
- Connector gender is male with D-Sub shell size A for compact integration.
- Manufactured in China with series designation HD for high density.
Product Description
Amphenol Communications Solutions L717HDA26P is a high-density 26 way straight through hole D-Sub connector male designed for robust electrical and data connectivity applications. Rated at 250 volts and 3 amperes, this connector provides reliable performance in industrial, telecom, and standard I/O systems.
The connector features a steel housing with a tin-plated shell that includes mounting dimples for secure attachment. The contacts are precision stamped brass with gold flash plating, ensuring excellent electrical conductivity and corrosion resistance. The solder cup termination style facilitates strong and reliable solder connections.
Designed to meet demanding operating conditions, it withstands temperatures from -55°C to 125°C, making it suitable for harsh environments. The connector’s compact D-Sub shell size A ensures versatility in design integration.
This connector conforms to recognized standards including MIL C24308 and NFC 93425-HE5, assuring quality and compatibility. Typical applications include industrial control systems, telecom equipment, and general-purpose electronic interface modules.
The HD series designation reflects its high-density configuration, providing compact, space-saving connectivity solutions where multiple contacts are required within limited spaces.
The connector provides 26 contacts for high pin count applications. Its straight orientation supports direct through-hole PCB mounting. The termination type is solder cup, ensuring strong electrical connections. Operating temperature range of -55°C to 125°C permits use in extreme conditions.
Gold-plated brass contacts enhance durability and conductivity. Steel housing with tin-plated shell offers mechanical protection and EMI shielding. Meets MIL C24308 and NFC 93425-HE5 standards. Designed for industrial, telecom, and general electronic applications.
Explore other connectors and components within the Amphenol Communications Solutions range and similar D-Sub Connectors for your electronic assemblies on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector is rated for 250 volts and 3 amperes, making it suitable for various electrical applications.
The operating temperature range of this model is from -55°C to 125°C, allowing it to function in extreme environments.
It utilizes a solder cup termination type, which facilitates strong and reliable solder connections.
This connector features 26 contacts, making it suitable for high pin count applications.
The housing is made of steel with a tin-plated shell, and the contacts are made of brass with gold flash plating for excellent conductivity.
It is designed for through-hole mounting, which allows for direct attachment to printed circuit boards.
The connector complies with MIL C24308 and NFC 93425-HE5 standards, ensuring quality and compatibility.
This model has a D-Sub shell size A, which is compact for integration in electronic designs.
It is suitable for industrial control systems, telecom equipment, and general-purpose electronic interface modules.
The connector features a straight orientation, which supports direct through-hole PCB mounting.
This connector is manufactured in China, ensuring compliance with specified standards.
The HD series designation indicates its high-density configuration, providing compact connectivity solutions for applications requiring multiple contacts.
