| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | BZX55C5V6-TAP |
| Mount Type | Through Hole |
| Series | BZX55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 5.6V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 450Ω |

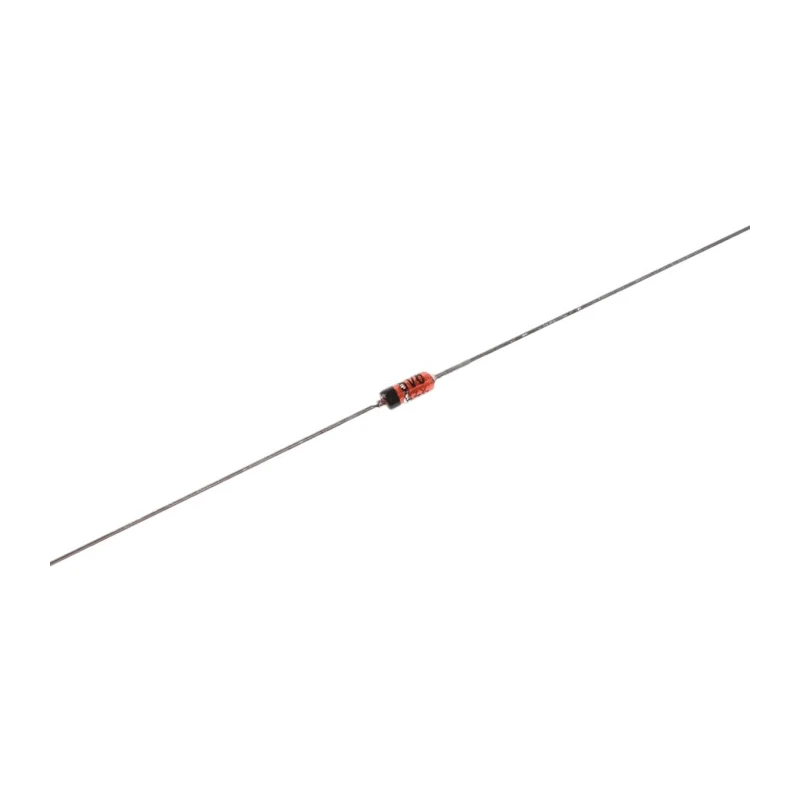

Vishay BZX55C5V6-TAP is a single Zener diode designed for voltage regulation applications within electronic and electrical circuits. It has a nominal Zener voltage of 5.6 V and is capable of dissipating a maximum of 500 mW power, ensuring dependable performance in power-sensitive environments. The diode is housed in a through-hole SOD-27 package featuring 2 pins, making it compatible with standard printed circuit boards and manufacturing processes.
The diode operates effectively across a broad temperature range from -65°C up to 175°C, demonstrating high reliability in industrial, automotive, and commercial electronic systems. Its low reverse leakage current and sharp reverse characteristic contribute to stable voltage regulation and low noise operation, which are critical in sensitive semiconductor applications.
This BZX55 series diode also complies with RoHS environmental standards and adheres to AEC-Q101 qualifications, ensuring suitability for automotive-grade applications where durability and quality are paramount.
The device is ideal for use in voltage reference circuits, voltage clamping, and protection against voltage transients in power supplies, signal conditioning, and low-power regulation scenarios. Its compact SOD-27 package provides a small footprint to conserve PCB space.
Single diode configuration for precise voltage regulation. Nominal Zener voltage of 5.6 V with ±7% tolerance guarantees voltage accuracy. Maximum power dissipation of 500 mW supports efficient thermal management. Wide operating temperature range from -65°C to 175°C for diverse environments.
Low maximum reverse leakage current ensures minimal power loss. Compact SOD-27 package enables efficient PCB layout. RoHS compliant and AEC-Q101 qualified for automotive and industrial use. Sharp reverse characteristic reduces noise in circuits.
This Vishay Zener diode BZX55C5V6-TAP is suitable for industrial, automotive, electronics manufacturing, laboratory, and industrial automation applications requiring reliable voltage regulation and protection. Explore our Electronics & Electricals category for more semiconductor solutions.
