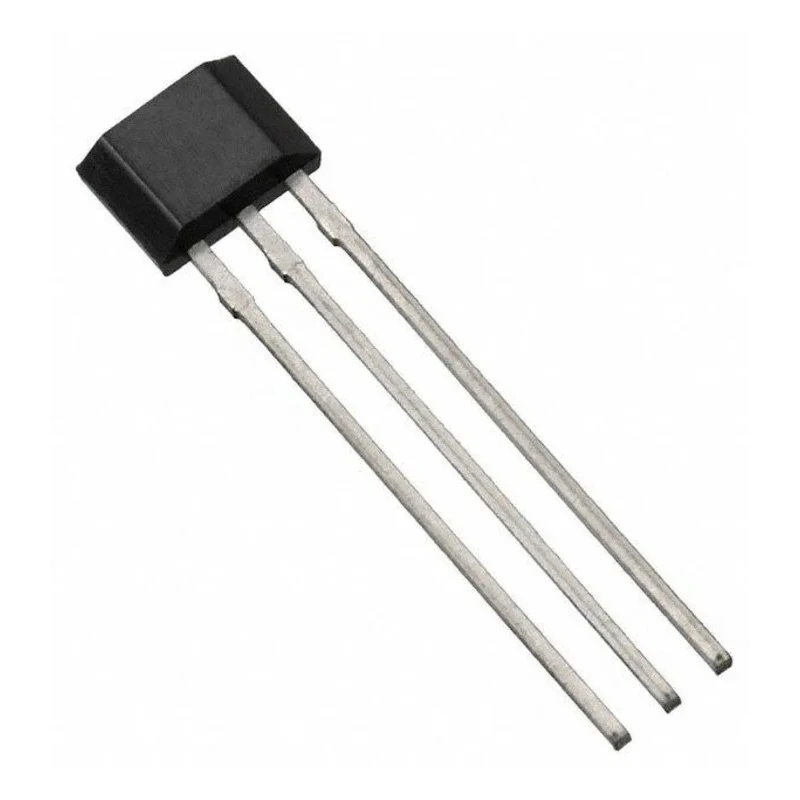

DiodesZetex Surface Mount Hall Effect Sensor SIP 3-Pin, 3 V to 28 V Supply, Chopper Stabilised Technology AH3364Q-P-B
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Response time | 3.75μs |
| Height | 1.6mm |
| Length | 4.3mm |
| Model | AH3364Q-P-B |
| Technology | Chopper Stabilised |
| Sensor Type | Hall Effect Sensors |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | AH3364Q |
| Maximum Operating Temperature | 150°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | Lead (Pb) Free, Antimony-Free, Halogen Free, RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 28V |
| Minimum Supply Voltage | 3V |
| Supply Current | 3mA |
| Magnetic Type | Unipolar |
| Maximum Frequency Response | 800kHz |
Key Features
- Utilizes chopper stabilised technology for accurate sensing performance.
- Features a unipolar magnetic type suitable for non-contact switching and proximity detection.
- Compact SIP package with 3 pins enabling straightforward PCB integration.
- Operates reliably between -40°C to 150°C, compliant with automotive AEC-Q100 standards.
- Offers a fast response time of 3.75 microseconds for dynamic applications.
- Maximum frequency response of 800kHz fits various high-speed sensor needs.
- Low supply current of 3mA optimizes power consumption in embedded systems.
Product Description
DiodesZetex AH3364Q-P-B is a surface mount Hall Effect sensor designed for precise magnetic field sensing with a supply voltage range of 3 V to 28 V. This 3-pin SIP packaged sensor utilizes chopper stabilised technology to achieve stable and accurate analog output, making it ideal for position and proximity sensing applications.
Its unipolar magnetic operation allows it to detect one polarity magnetic fields, suitable for applications requiring non-contact switching and magnetic proximity detection. The sensor is rated for operation from -40°C to 150°C, meeting rigorous automotive standards such as AEC-Q100, ensuring reliable use in industrial and automotive environments.
The AH3364Q-P-B sensor supports a maximum frequency response of 800kHz and offers a fast response time of just 3.75 microseconds, allowing it to capture dynamic changes in magnetic fields quickly. Its low supply current of 3mA aids in efficient power management for battery-powered and embedded systems.
This device is lead-free, halogen-free, antimony-free, and RoHS compliant, emphasizing environmental responsibility. The compact dimensions of 4.3 mm length, 3.2 mm width, and 1.6 mm height allow for easy integration onto densely populated PCBs.
Utilizes chopper stabilised technology for enhanced sensing accuracy. Surface mount SIP package with 3 pins enables versatile PCB design. Wide supply voltage range from 3 V to 28 V enhances application flexibility. Complies with AEC-Q100 automotive standards for quality and reliability.
Fast response time of 3.75μs supports real-time switching applications. Maximum frequency response of 800kHz accommodates high-speed operations. Low supply current of 3mA supports energy-efficient designs. Wide operating temperature range from -40°C to 150°C suits harsh environments.
This Hall Effect Sensor finds applications across industrial automation, automotive systems, consumer electronics, and laboratory instrumentation where accurate position and proximity sensing is critical. Its environmental compliances and certified standards ensure dependable operation in demanding use cases.
Explore more sensors and electronic components in EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This Hall Effect sensor operates within a supply voltage range of 3 V to 28 V, providing flexibility for various applications.
The response time of the AH3364Q-P-B sensor is 3.75 microseconds, allowing it to quickly detect changes in magnetic fields.
It supports a maximum frequency response of 800 kHz, making it suitable for high-speed applications.
The sensor has a length of 4.3 mm, a width of 3.2 mm, and a height of 1.6 mm, allowing for compact PCB integration.
This model utilizes unipolar magnetic operation, making it suitable for non-contact switching and proximity detection.
It operates reliably in temperatures ranging from -40°C to 150°C, suitable for harsh environments.
The supply current for the AH3364Q-P-B is 3 mA, which helps optimize power consumption in embedded systems.
This sensor features a surface mount design with a 3-pin SIP package, facilitating straightforward integration onto PCBs.
Yes, it is compliant with automotive AEC-Q100 standards and is lead-free, halogen-free, and RoHS compliant.
This Hall Effect sensor is suitable for applications in industrial automation, automotive systems, consumer electronics, and laboratory instrumentation.
It utilizes chopper stabilised technology, which enhances its sensing accuracy and performance.
The sensor has a pin count of 3, which is standard for its SIP package design.
