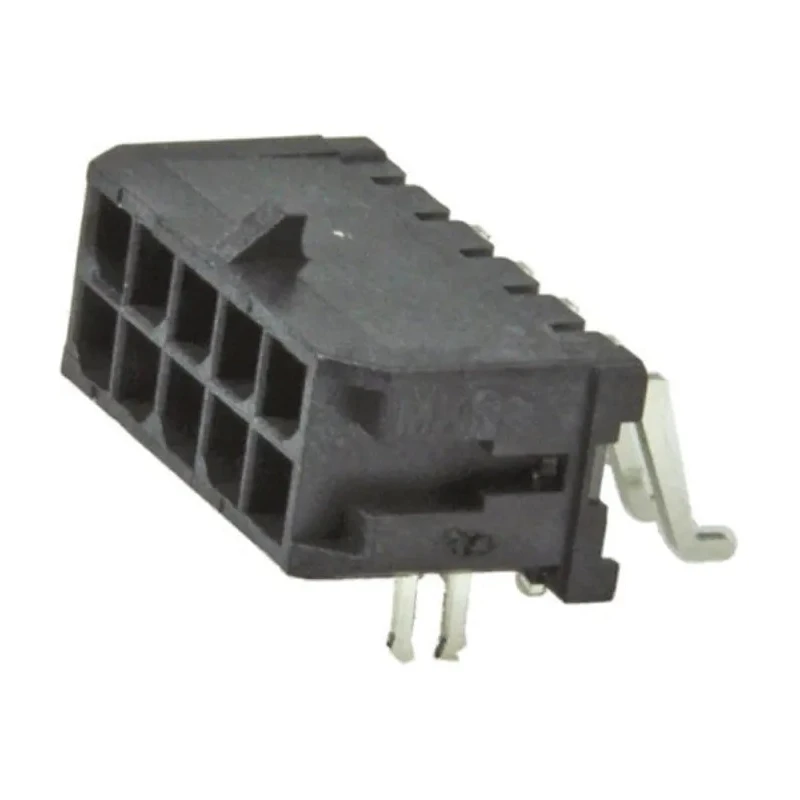

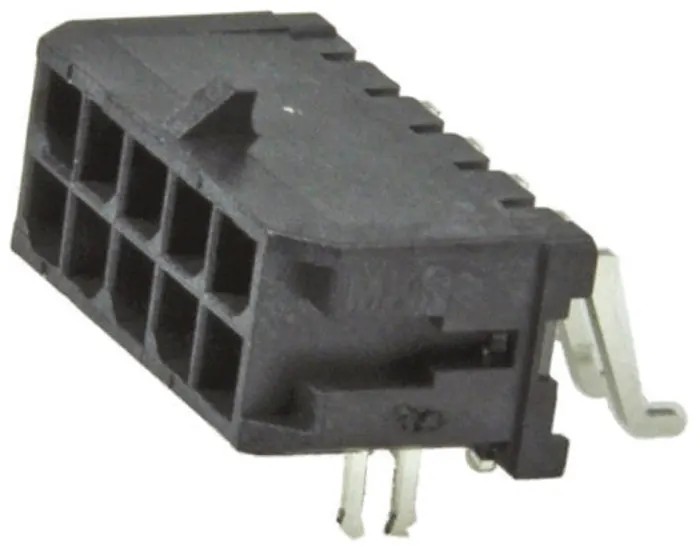

Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 10 Contacts 3 mm Pitch 2 Row Shrouded 43045-1006
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Supports a current rating of 5A in a small footprint.
- Made with thermoplastic housing for high temperature resistance up to 105°C.
- Shrouded design ensures secure positive latching to prevent accidental disconnection.
- Surface mount type with brass contacts plated in tin for reliable conductivity.
- Operates between -40°C and 105°C, suitable for demanding environments.
- Dual row, right angle orientation optimizes PCB space utilization.
- Housing material withstands IR reflow soldering up to 265°C.
- Includes press-fit retention clips enhancing mechanical stability on PCBs.
Product Description
Molex 43045-1006 Micro-Fit 3.0 Series Right Angle Surface PCB Header is designed for compact power distribution solutions in a wide variety of electronic applications. Featuring a 3 mm pitch with 10 male contacts arranged in 2 rows, this shrouded connector supports a current rating of up to 5A, ensuring efficient power delivery within a small footprint.
The thermoplastic housing is engineered to withstand high temperatures up to 105°C during continuous operation and up to 265°C during IR reflow soldering, complying with UL 94V-0 standards. The right angle orientation and surface mount design optimize PCB layout flexibility while the press-fit retention clips provide excellent mechanical stability during assembly and operation.
Contacts are made from brass with tin plating to balance conductivity and durability. The connector incorporates positive latching via housing locking ramps, securing wire-to-board connections and preventing inadvertent disconnections. Fully isolated dual beam terminals reduce arcing, enhancing electrical reliability.
This Micro-Fit 3.0 header is suitable for a broad array of industrial and commercial applications including military COTS systems, solar power installations, consumer appliances such as dryers and refrigerators, data communications equipment, telecommunications devices, medical instrumentation, and gaming terminals.
The product is manufactured in Mexico under strict quality controls and provides a robust, dependable solution for medium power PCB connections requiring compact size and high performance.
Supports current up to 5A in compact footprint. Thermoplastic housing rated for temperatures up to 105°C. Shrouded construction with positive latching for secure connections. Right angle orientation with surface mount type for PCB integration.
Press-fit retention clips enhance mechanical stability. Fully isolated dual beam terminals minimize arcing. Tin plated brass contacts provide reliable conduction. Suitable for industrial, military, consumer, and medical uses.
Manufactured in Mexico with quality compliance. Explore a broad range of Molex connectors and PCB Headers at EnvMart to support your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 5A.
It can operate at a maximum temperature of 105°C.
This unit features a surface mount type design.
It has 10 male contacts arranged in 2 rows.
The contact pitch is 3 mm.
The housing is made from thermoplastic, and the contacts are brass with tin plating.
It has a right angle orientation, which optimizes PCB space utilization.
It operates within a temperature range of -40°C to 105°C.
Yes, it includes press-fit retention clips that enhance mechanical stability on PCBs.
It is suitable for a broad range of applications including military COTS systems, solar power installations, and medical instrumentation.
It has a voltage rating of 250V.
It is manufactured in Mexico under strict quality controls.
