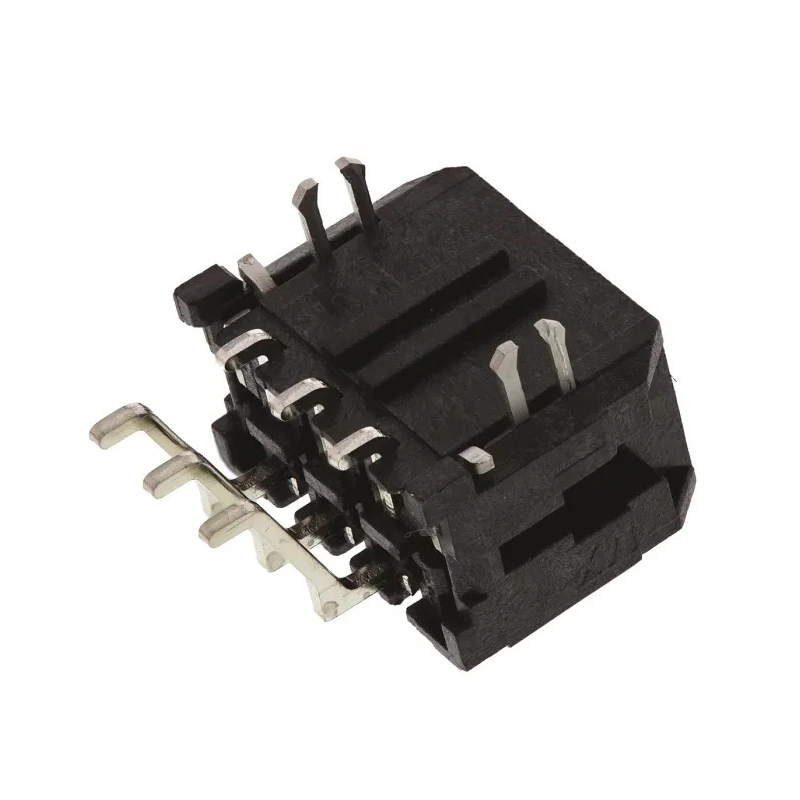

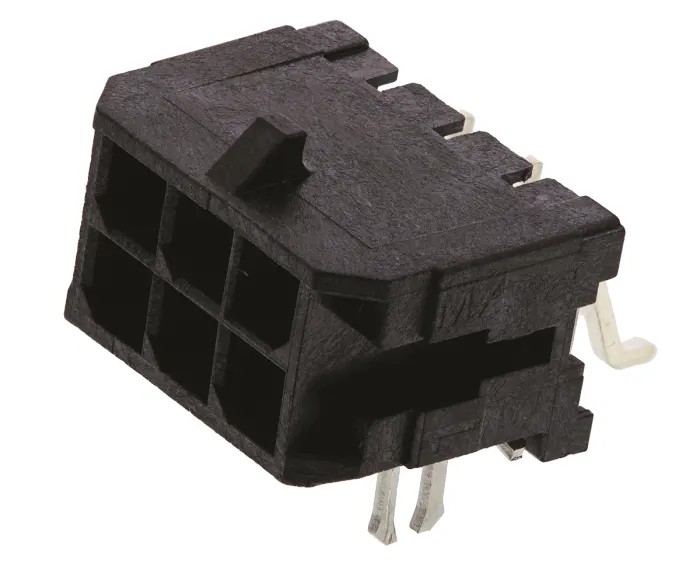

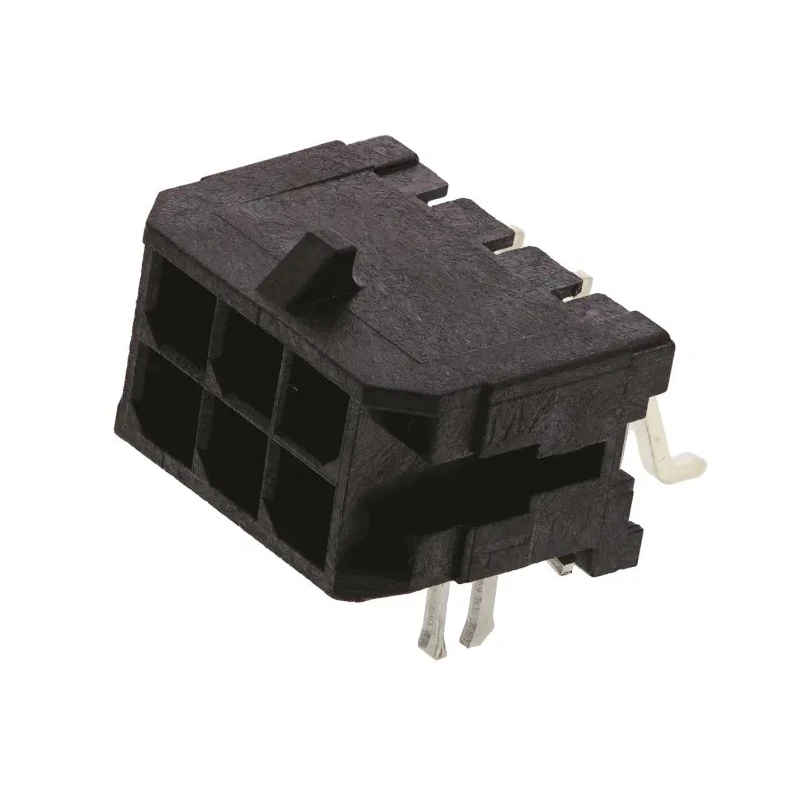

Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 6 Contact 3 mm Pitch 2 Row Shrouded 43045-0606

Free Delivery in India | Lowest Global Shipping Charges

Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 6 Contact 3 mm Pitch 2 Row Shrouded 43045-0606

Name: Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 6 Contact 3 mm Pitch 2 Row Shrouded 43045-0606
Brand: Molex
SKU: 212341
Price: 2.91 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	Mexico
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	5A
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Brass
Series	Micro-Fit 3.0
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	3mm
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Designed with a right angle orientation for compact PCB layouts.
Features 2 rows of shrouded contacts for secure mating.
Supports current up to 5A with 3 mm pitch spacing.
Constructed with thermoplastic housing and brass contacts plated with tin.
Suitable for surface mount type applications with solder termination.
Operates reliably between -40°C to 105°C temperature range.
Incorporates positive latching mechanism to prevent accidental disconnections.
Meets glow wire compliance for safety standards.

Product Description

Molex 43045-0606 Micro-Fit 3.0 Series Right Angle Surface PCB Header is a high-performance connector engineered for reliable wire-to-board interfacing in electronic assemblies. Featuring 6 shrouded contacts arranged in 2 rows with 3 mm pitch, this connector supports up to 5 ampere current, ideal for compact power distribution.

The right angle orientation and surface mount design optimize PCB space utilization while ensuring secure mechanical retention through metal press-fit clips. The housing is made of high-temperature thermoplastic material rated UL 94V-0, capable of withstanding reflow soldering temperatures up to 265°C.

Brass contact terminals are plated with tin to ensure excellent conductivity and corrosion resistance. The connector's positive latching system includes locking ramps on the housing that guarantee secure mating and prevent unintended disconnections during operation.

This Micro-Fit 3.0 header is compatible with both through hole and SMT process, helping reduce manufacturing costs and complexity. The design fully isolates the dual beam terminals within the housing to minimize arcing and enhance electrical reliability.

Applications include diverse industrial sectors such as military commercial off-the-shelf (COTS) equipment, solar power systems, consumer electronics like dryers and refrigerators, data communication devices including routers and servers, medical instruments, telecommunications, and gaming terminals.

Designed for compact and efficient power distribution solutions. High current carrying capacity in a small footprint. High temperature resistant housing for IR reflow soldering. Positive latching for secure connection. Fully isolated dual beam terminals for reliable electrical performance.

Press fit retention clips ensure firm PCB attachment.

Categorized under PCB Headers, it is suitable for electronics manufacturing, repair, and design applications in laboratories, industrial environments, and commercial product assembly. Explore more from Molex and related PCB connector solutions at EnvMart.
