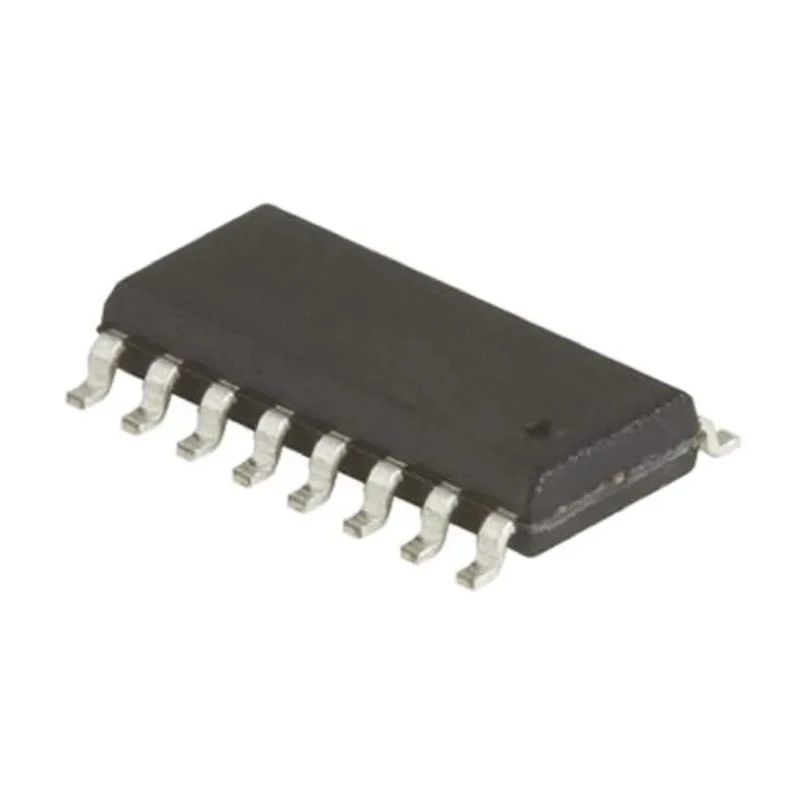

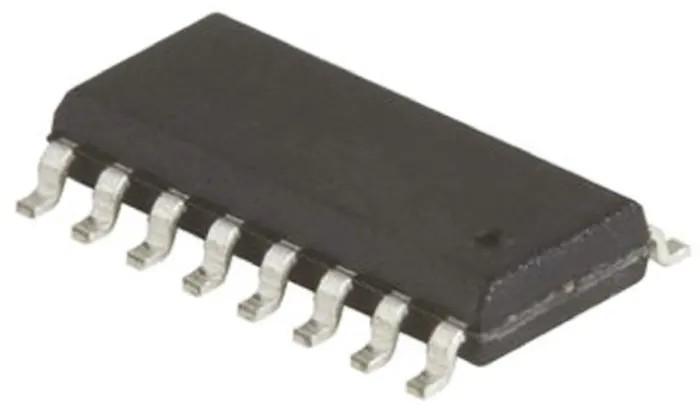

onsemi Multiplexer CMOS Single 8:1 16-Pin SOIC MC14051BDR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.5mm |
| Length | 10mm |
| Model | MC14051BDR2G |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS |
| Configuration | Single 8:1 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 18V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 3V |
| Wide operating voltage range | 3 to 18V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 1.2kΩ |
| ConfigurationSingle 8 | 1 |
| Single 8 | 1 |
| onsemi MC14051BDR2G Multiplexer, 1 CMOS Single 8 | 1, Multiplexer, 16-Pin SOIC |
Key Features
- The device is part of the 4000 CMOS logic family.
- Operates over a wide supply voltage range from 3V to 18V.
- Features a maximum on-state resistance of 1.2kΩ.
- Designed to operate in temperature range from -55°C to 125°C.
- Complies with RoHS and AEC-Q100 automotive standards.
- Compact SOIC package with dimensions approximately 10mm x 4mm x 1.5mm (LxWxH).
- Suitable for industrial, automotive, and electronic applications.
Product Description
onsemi MC14051BDR2G is a CMOS logic family multiplexer IC featuring a single 8:1 configuration and 16-pin SOIC surface mount package. This multiplexer device operates on a wide supply voltage range of 3V to 18V, making it versatile for various electronic circuit designs.
It offers a maximum on-state resistance of 1.2kΩ which is suitable for switching signals with minimal loss. The operating temperature range of -55°C to 125°C allows it to be deployed in demanding industrial and automotive environments.
The compact SOIC package measures approximately 10mm in length, 4mm in width, and 1.5mm in height, facilitating high-density PCB layouts and space-efficient designs. The IC conforms to RoHS compliance and meets the automotive standard AEC-Q100, ensuring high reliability and safety standards.
The device is part of the 4000 CMOS logic family. Supports single 8:1 multiplexing with CMOS output type. Wide operating voltage range from 3V to 18V. Low maximum on-state resistance of 1.2kΩ. Temperature range from -55°C to 125°C for harsh environment use.
Compact 16-pin SOIC surface mount packaging. RoHS compliant and automotive grade per AEC-Q100. Ideal for industrial, automotive, and other electronic applications requiring signal multiplexing. This multiplexer IC is widely used in industrial and automotive electronics, signal routing, data selectors, and digital switching applications.
Explore a comprehensive range of semiconductor components including logic ICs and multiplexers at EnvMart to support your engineering and manufacturing projects.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This multiplexer operates over a wide supply voltage range from 3V to 18V.
The maximum on-state resistance is 1.2kΩ, suitable for switching signals with minimal loss.
It can operate in a temperature range from -55°C to 125°C, making it suitable for harsh environments.
The device is packaged in a compact 16-pin SOIC surface mount package, measuring approximately 10mm x 4mm x 1.5mm.
Yes, it complies with RoHS and meets the AEC-Q100 automotive standard for reliability and safety.
This model features a single 8:1 configuration, allowing for versatile signal routing.
It utilizes a CMOS output type, which is common in modern electronic applications.
The device has a total of 16 pins, suitable for various connection needs in electronic circuits.
It is suitable for industrial, automotive, and electronic applications requiring signal multiplexing.
The height of the MC14051BDR2G is approximately 1.5mm.
The country of origin for this multiplexer is India.
This multiplexer contains 1 element per chip, designed for single 8:1 multiplexing.
