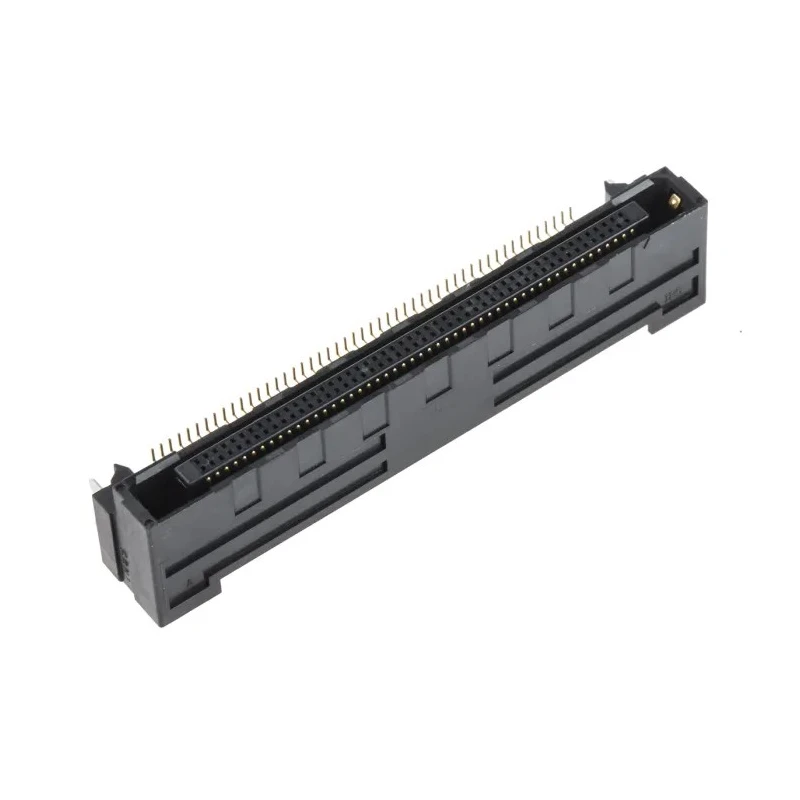

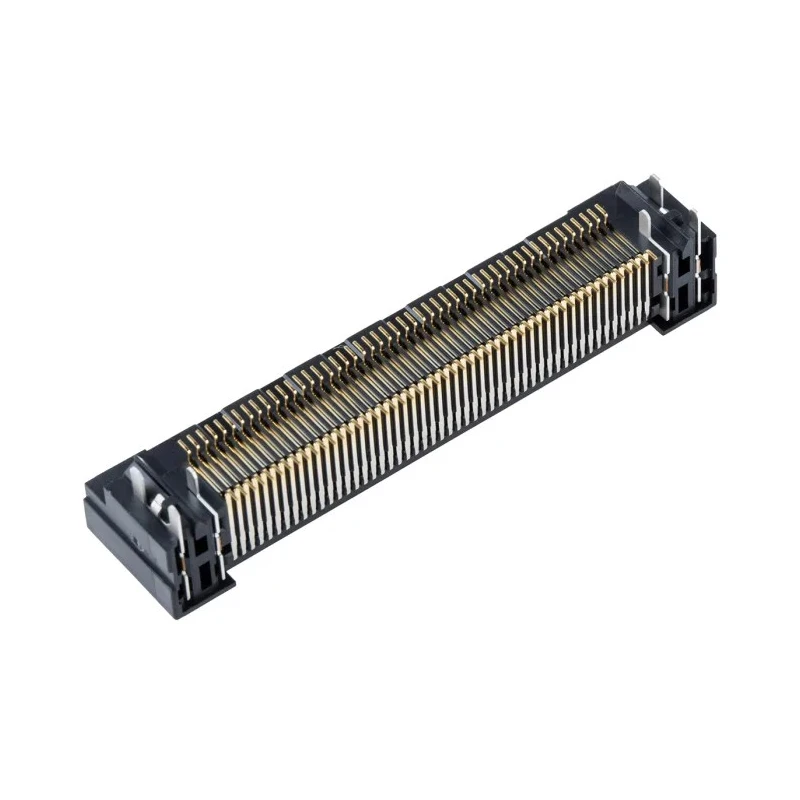

Hirose FunctionMAX FX18 Series Right Angle Surface PCB Socket, 100-Contact, 2 Row, 0.8 mm Pitch Solder
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Right Angle |
| Current | 12A |
| Model | FX18 |
| Mount Type | Surface |
| Housing Material | Polyamide Resin |
| Contact Material | Bronze |
| Series | FunctionMAX FX18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 100 |
| Contact Gender | Female |
Key Features
- Designed with advanced multifunctional contacts for power, ground, and signal separation.
- Supports high-speed transmission up to 10 Gbit/s, compliant with PCI-Express Ver. 2.0.
- Provides 12A current capacity with dedicated power supply contacts.
- Features 6 through-hole pins for enhanced PCB retention and mechanical reliability.
- Constructed with polyamide resin housing and gold-plated bronze contacts.
- Operating temperature range from -55°C to 85°C for robust performance.
- Right angle orientation enabling space-saving board layouts.
- Meets RoHS standards and is manufactured in Japan.
Product Description
Hirose FX18-100S-0.8SH is a FunctionMAX FX18 Series right angle surface mount PCB socket designed with 100 contacts in 2 rows and a fine 0.8 mm pitch. It is engineered for high-speed board-to-board connectivity in demanding industrial and electronic applications.
This connector supports high-speed data transmission up to 10 Gbit/s and complies with PCI-Express Ver. 2.0 standards. The advanced multifunctional contact design segregates ground, power, and signal lines, enhancing electrical performance and reducing interference. Power contacts deliver up to 3A per pin, with a total allowable current of 12A, thereby optimizing signal pin usage and enabling compact layouts.
The housing is made of durable polyamide resin, and the bronze contacts are gold-plated to ensure excellent conductivity and corrosion resistance. The socket features six through-hole pins for superior mechanical strength and resistance to wrenching forces. Its right angle orientation facilitates efficient board stacking and layout design.
Suitable for industrial control equipment, medical devices, measurement instruments, servers, smart meters, base station transceivers, and PLCs, this socket offers reliable, high-speed interconnectivity. It operates reliably over a temperature range from -55°C to 85°C and complies with RoHS environmental standards. Made in Japan, this connector embodies quality and durability.
Advanced multifunctional contacts ensure power and signal integrity. High-speed data transmission supports up to 10 Gbit/s. Compact design with 0.8 mm pitch and 2-row configuration. Gold-plated bronze contacts for excellent conductivity.
Six through-hole pins enhance mechanical robustness. Right angle surface mount for versatile PCB layouts. Wide operating temperature range from -55°C to 85°C. RoHS compliant material and manufacturing. Explore the Hirose FunctionMAX FX18 Series for advanced PCB Socket solutions on EnvMart to enhance your electronic assemblies with high performance and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a total allowable current capacity of 12A, with power contacts delivering up to 3A per pin.
It operates reliably over a temperature range from -55°C to 85°C.
This socket features 100 contacts arranged in 2 rows with a pitch of 0.8 mm.
The housing is made of polyamide resin, while the contacts are constructed from bronze and gold-plated for enhanced conductivity.
This model features a right angle orientation, which facilitates efficient board stacking and layout design.
It uses solder termination for secure connections on the PCB.
Yes, it meets RoHS standards, ensuring it adheres to environmental regulations.
It is suitable for various applications including industrial control equipment, medical devices, measurement instruments, and servers.
The contacts in this socket are spaced at a fine pitch of 0.8 mm.
It features six through-hole pins that enhance mechanical strength and PCB retention.
The maximum voltage rating for this model is 100V.
This socket is manufactured in Japan, reflecting high standards of quality.
