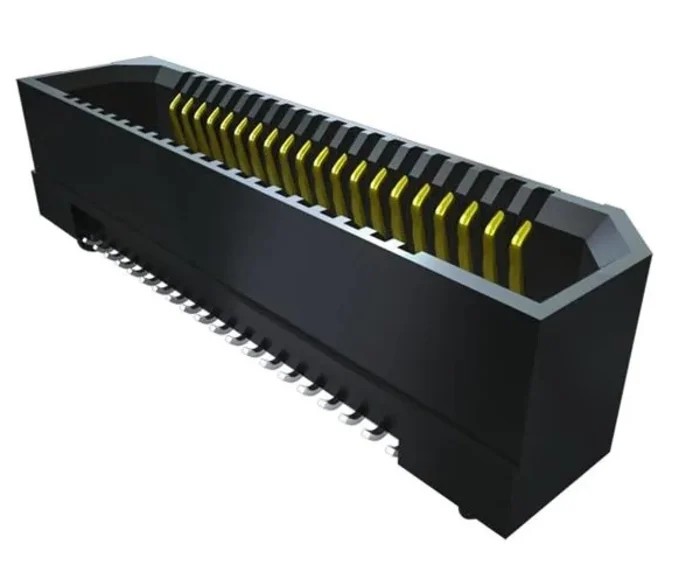

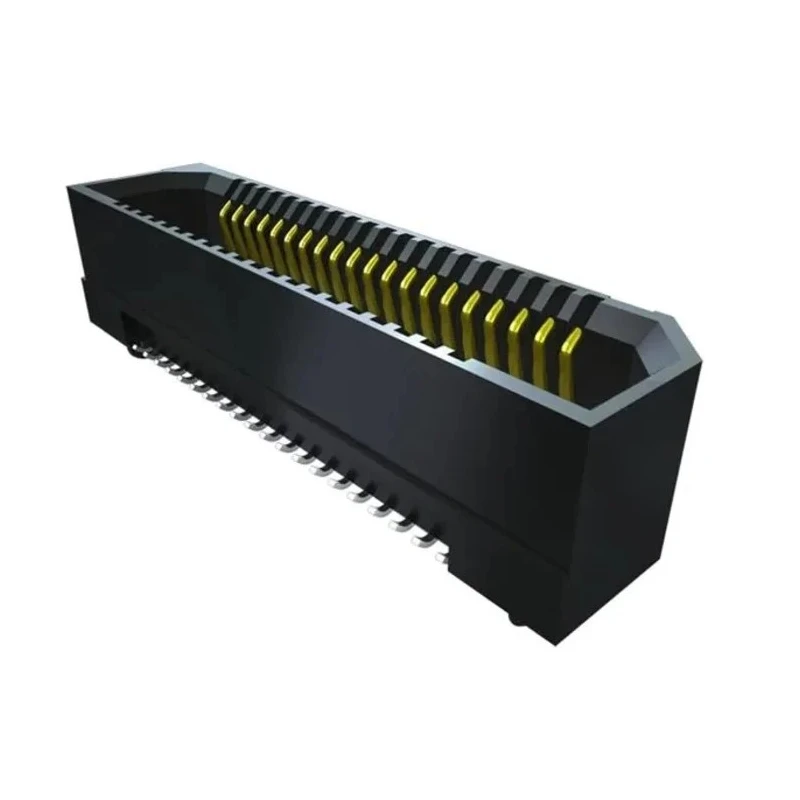

Samtec Right Angle Surface PCB Socket 150-Contact 2 Row 0.8 mm Pitch Solder ERF8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 318V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 2.2A |
| Model | ERF8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | ERF8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | High Speed Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 150 |
| Connector System | Board-to-Board |
| Stacking Height | 18mm |
| Row Pitch | 4.5mm |
Key Features
- This PCB socket has a right angle orientation suitable for board-to-board connections.
- Constructed with liquid crystal polymer housing for robust durability.
- Contact material is beryllium copper alloy plated with gold for reliable conductivity.
- Designed for operation between -55°C and 125°C with 18mm stacking height.
- Supports a current rating of 2.2A and voltage up to 318V.
- Offers 75 positions per row with dual rows and right angle tail option.
- Termination by soldering ensures secure electrical connections.
- Ideal for industrial and electronics manufacturing applications requiring high-speed data transmission.
Product Description
Samtec ERF8 series right angle surface PCB socket, model ERF8-075-01-L-D-RA-TR, provides a rugged, high-speed socket strip solution with 150 contacts arranged in two rows with a 0.8 mm pitch.
The socket features a right angle orientation and is mounted using solder termination for secure board-to-board connections. Made with liquid crystal polymer housing material, it offers exceptional mechanical strength and thermal stability.
Contact components are fabricated from beryllium copper alloy with selective gold plating to enhance conductivity and corrosion resistance.
The device operates reliably within a temperature range from -55°C to 125°C and supports currents up to 2.2A and voltages up to 318V, making it suitable for demanding electronic component assemblies.
150 contacts arranged in 2 rows with 0.8 mm pitch. Right angle orientation and surface mount type. Liquid crystal polymer housing for durability. Beryllium copper alloy contacts with gold plating. Rated for 2.2A current and 318V voltage operation.
Operating temperature range from -55°C to 125°C. Stacking height of 18mm supports compact designs. Ideal for high-speed electronic interface applications in industrial and laboratory settings. This high-performance PCB Socket caters to electronics manufacturing, telecommunications, and power connector assembly lines requiring reliable and precise electrical connections.
Explore EnvMart’s wide selection of electronic components for advanced industrial and laboratory use cases.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 318V.
It supports a current rating of 2.2A.
This unit operates reliably within a temperature range from -55°C to 125°C.
The socket features 150 contacts arranged in two rows.
The pitch size of the contacts is 0.8 mm.
The contacts are made from beryllium copper alloy and are plated with gold.
It uses solder termination for secure electrical connections.
The stacking height is 18 mm, which supports compact designs.
This model has a right angle orientation suitable for board-to-board connections.
The housing is made of liquid crystal polymer, providing mechanical strength and thermal stability.
It is ideal for high-speed electronic interface applications in industrial and laboratory settings.
The country of origin for this product is India.
