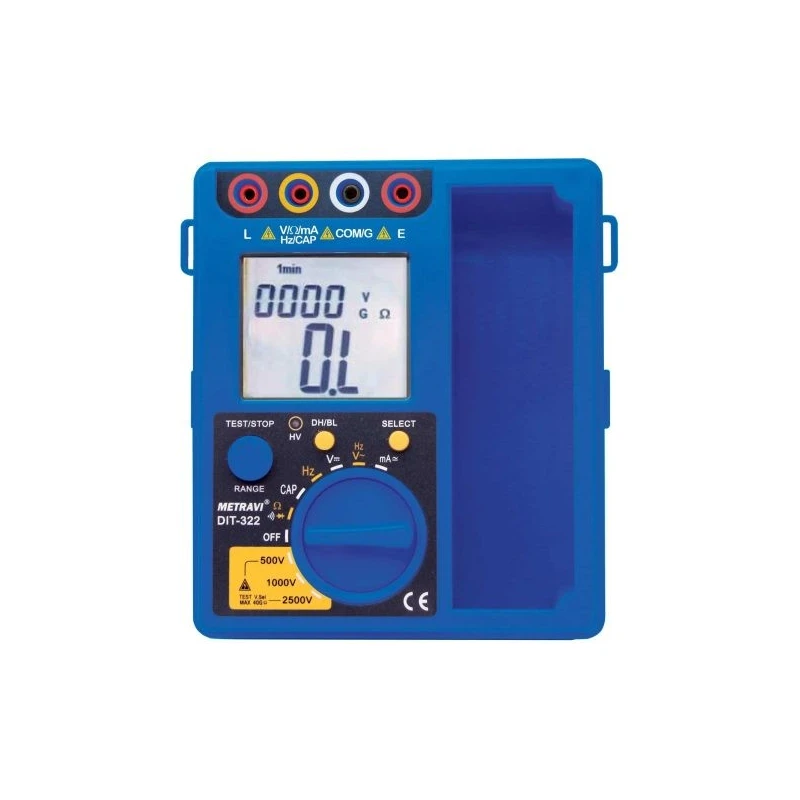

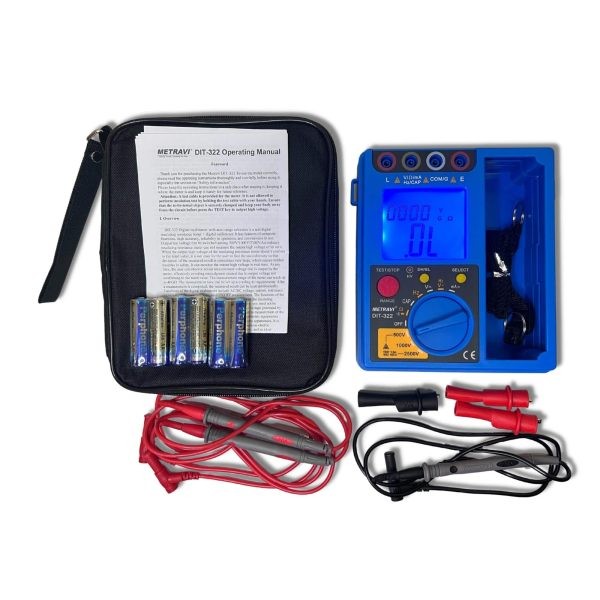

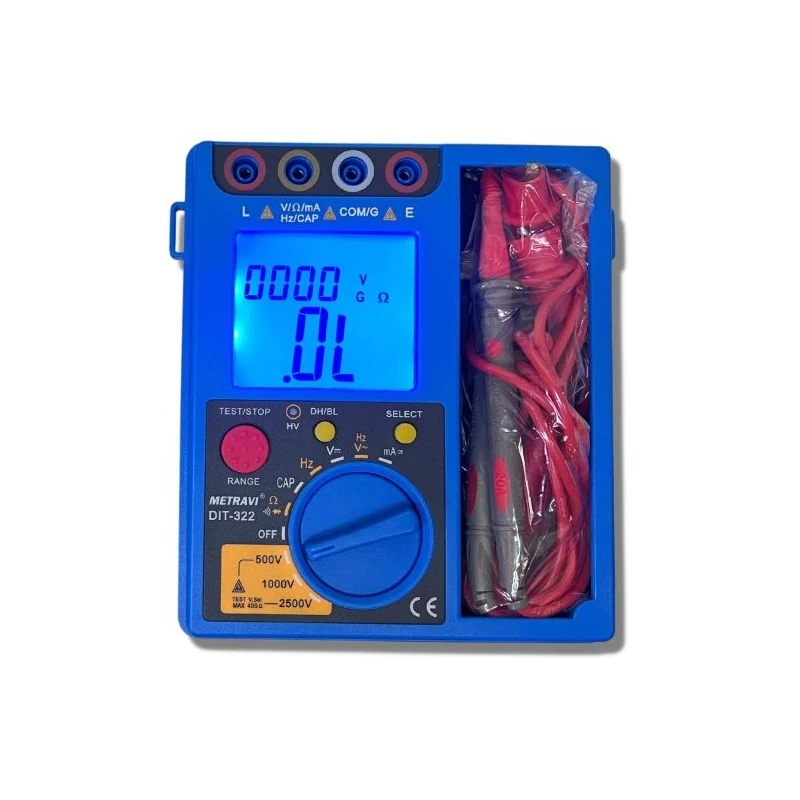

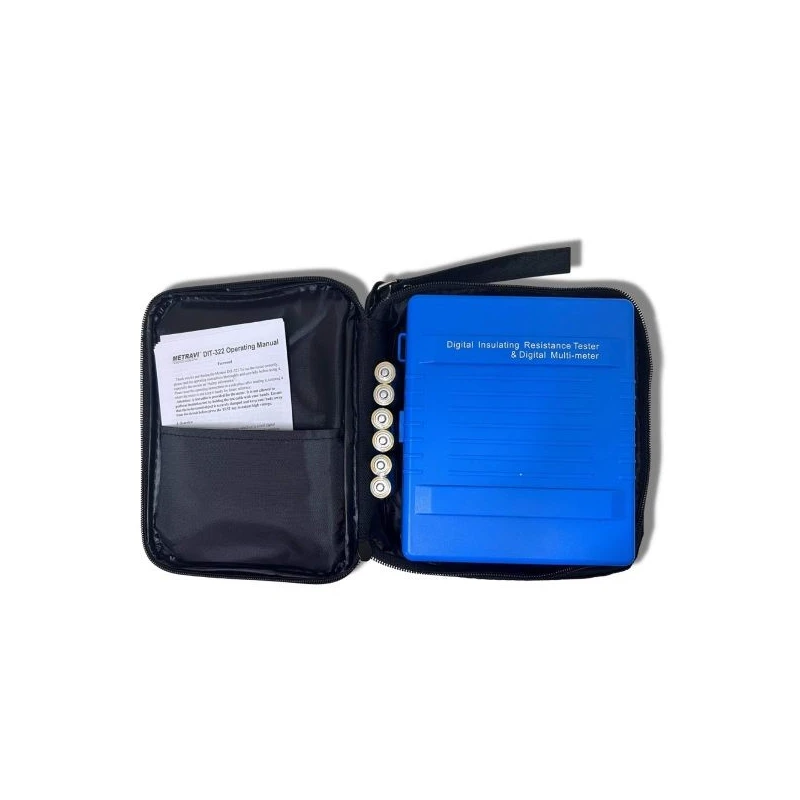

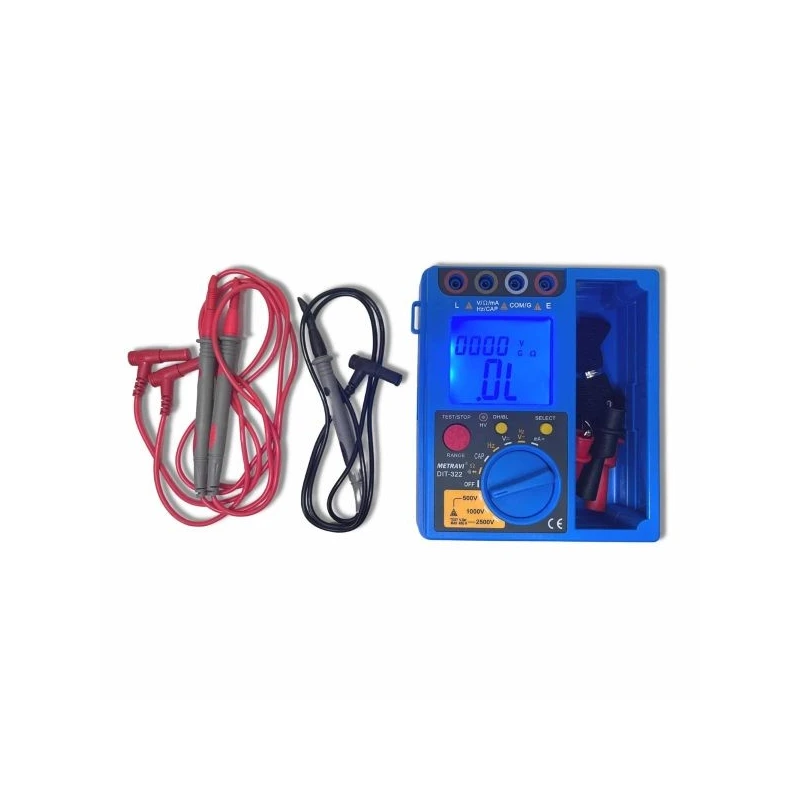

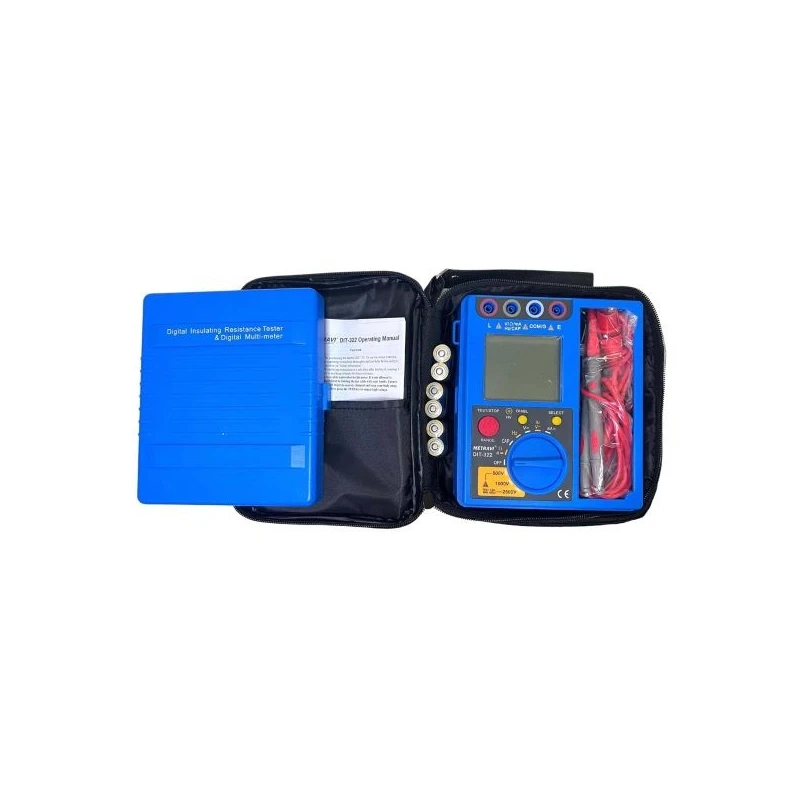

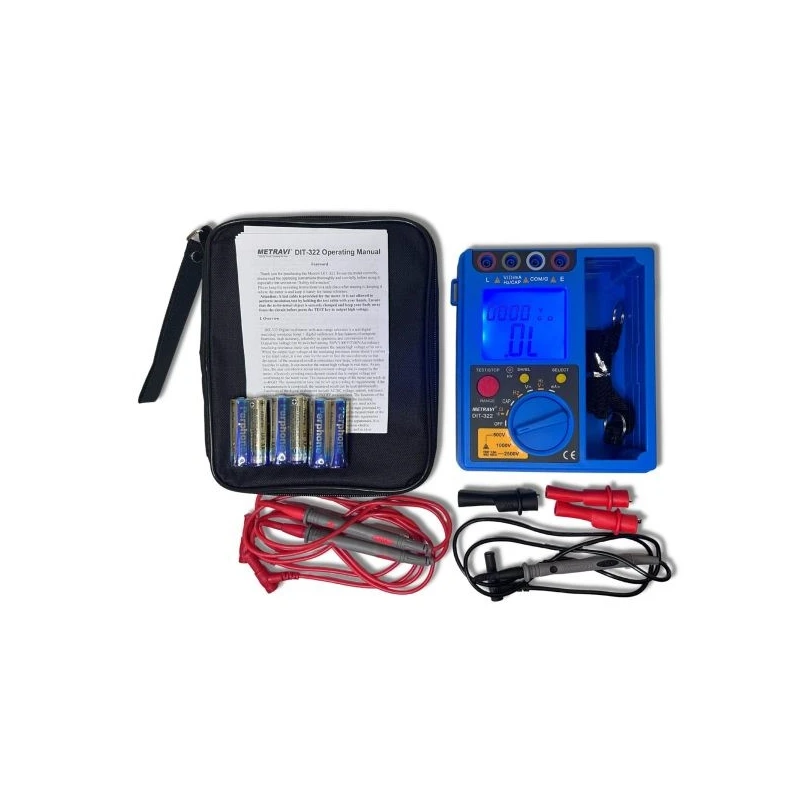

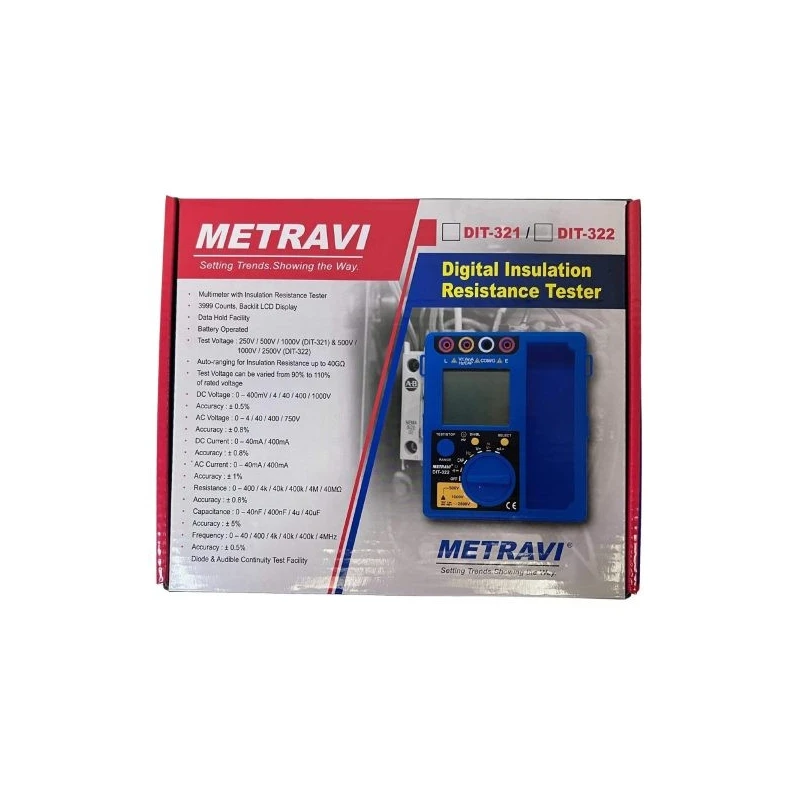

Metravi DIT-322 Digital Insulation Tester
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±3% ±5 |
| DC Voltage Range | 0 – 400mV / 4V / 40V / 400V / 1000V |
| AC Voltage Range | 0 – 4V / 40V / 400V / 700V |
| Capacitance Range | 0 – 40nF / 400nF / 4uF / 40uF |
| Power Consumption | 4.5 W |
| Resistance Range | 0 – 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ |
| Display | 3999 Counts Backlit LCD |
| Frequency range | 0 – 40Hz / 400Hz / 4kHz / 40kHz / 400kHz / 4MHz |
| Power Source | Battery Operated |
| Brand | Metravi |
| Dimensions | 125.4x174.6x69 mm |
| Battery type | Alkaline |
| Model | DIT-322 |
| Sampling rate | 2 Times Per Second |
| Short Circuit Current | ≥1.5mA |
| DC Current range | 0 – 40mA / 400mA |
| AC Current range | 0 – 40mA / 400mA |
| Digits | 3-3/4 Digits |
| Insulation Resistance Range | 0.25MΩ to 40GΩ |
| Insulation Test Voltage | 500-2500 V |
Key Features
- Measures insulation resistance
- Digital display for easy reading of values
- High accuracy for reliable testing
- Essential for ensuring electrical safety
Product Description
The Metravi Digital Thermo-Hygro Meter This meter features a jumbo display for easy reading of both temperature and humidity. It includes selectable scales, an alarm clock, and a comfort level indicator. With a temperature range of -10°C to 50°C and humidity ranging from 20% to 95%, it is ideal for monitoring environmental conditions in a variety of settings.
Available on EnvMart, these Insulation Testers are essential tools for verifying the integrity of electrical insulation in wiring, motors, and equipment—critical for ensuring operational safety and efficiency. Metravi Insulation Testers are respected for their high voltage testing capability, accuracy, and rugged design, making them a top pick for electrical professionals and maintenance engineers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The insulation resistance range of this model is from 0.25MΩ to 40GΩ.
It has an accuracy of ±3% ±5.
The device can measure insulation test voltages ranging from 500V to 2500V.
The dimensions of this unit are 125.4 mm x 174.6 mm x 69 mm.
It can measure both DC and AC voltages, with a DC voltage range of 0 – 400mV to 1000V and an AC voltage range of 0 – 4V to 700V.
This model features a 3999 counts backlit LCD display for easy reading of values.
It is battery operated and uses alkaline batteries.
The capacitance range of the DIT-322 is from 0 – 40nF to 40uF.
The sampling rate of this unit is 2 times per second.
The short circuit current is ≥1.5mA.
It can measure resistance in the ranges of 0 – 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, and 40MΩ.
It supports frequency ranges from 0 – 40Hz to 4MHz.
