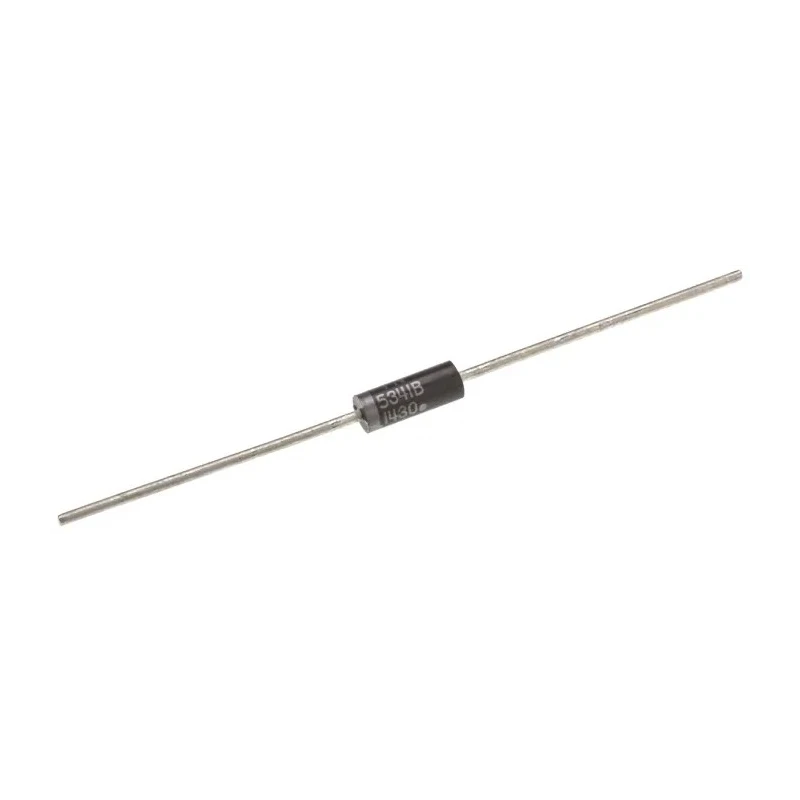

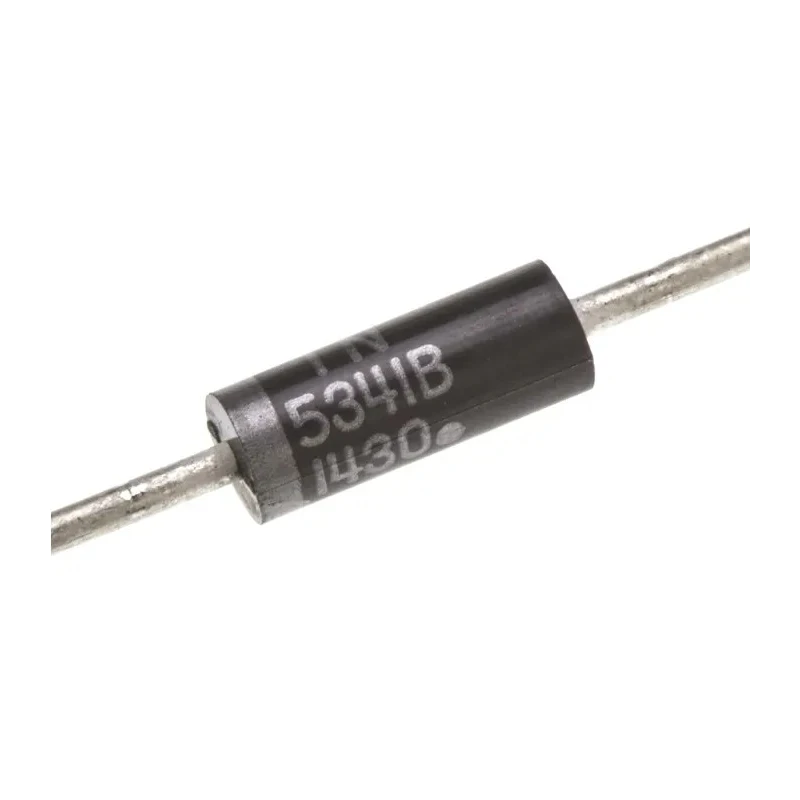

onsemi 6.2 V 5 W Zener Diode Through Hole 2-Pin DO-15 1N5341BRLG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 6.2 V 5 W Zener Diode Through Hole 2-Pin DO-15 1N5341BRLG

Name: onsemi 6.2 V 5 W Zener Diode Through Hole 2-Pin DO-15 1N5341BRLG
Brand: onsemi
SKU: 212111
Price: 0.28 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.68mm
Length	8.89mm
Model	1N5341BRLG
Mount Type	Through Hole
Series	1N5341B
Maximum Operating Temperature	200°C
Package Type	DO-15
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	5W
Diode Configuration	Single
Test Current It	200mA
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	6.2V
Zener Type	Voltage Regulator
Maximum Zener Impedance	1Ω

Key Features

Single diode configuration providing precise voltage regulation.
Nominal Zener voltage of 6.2 V with ±5% tolerance.
Maximum power dissipation of 5 watts ensuring durability.
Through hole mount type with 2-pin DO-15 package for easy PCB integration.
Tight voltage regulation characteristic with maximum impedance of 1Ω.
Wide operating temperature range from -65°C to 200°C for harsh environments.
Low maximum reverse leakage current of 1μA for efficiency.
Molded, corrosion-resistant package suited for industrial and electronic component use.

Product Description

onsemi 1N5341BRLG Zener Diode is a 6.2 V, 5 W voltage regulator diode designed for stable and accurate voltage regulation in electronic circuits. The single diode configuration is enclosed in a DO-15 axial-lead through hole package with 2 pins, suitable for industrial and commercial PCB applications.

This diode features tight Zener voltage tolerance of ±5% and a maximum Zener impedance of 1Ω, ensuring improved performance and stability under varying current loads. Capable of dissipating up to 5 watts of power, it supports robust circuit protection and voltage regulation.

Designed to operate reliably within a wide temperature range from -65°C to 200°C, this diode is suited for use in demanding industrial environments and applications requiring durable and long-lasting semiconductor components.

The diode's molded package provides corrosion resistance and environmental protection, with easy soldering enabled by its axial lead design. Its low maximum reverse leakage current of 1μA enhances circuit efficiency and reliability.

The 1N5341BRLG series is RoHS compliant, ensuring compliance with environmental regulations and sustainability requirements in manufacturing processes.

This product is commonly used in industrial, manufacturing, electronic device, power management, and control system applications where stable voltage reference and protection are critical.

Single diode configuration providing precise voltage regulation. Nominal Zener voltage of 6.2 V with ±5% tolerance. Maximum power dissipation of 5 watts ensuring durability. Through hole mount type with 2-pin DO-15 package for easy PCB integration.

Tight voltage regulation characteristic with maximum impedance of 1Ω. Wide operating temperature range from -65°C to 200°C for harsh environments. Low maximum reverse leakage current of 1μA for efficiency. Molded, corrosion-resistant package suited for industrial and electronic component use.

RoHS compliant to meet environmental safety standards. Axial-lead design facilitating straightforward assembly in automated machinery. Explore more from onsemi and browse our comprehensive semiconductor and Zener diode categories on EnvMart for high-quality electronic components.
