onsemi Zener Diode 20 V, 5 W, 5% Tolerance, Single Diode, Through Hole Mount, DO-15 Package 1N5357BRLG

Free Delivery in India | Lowest Global Shipping Charges

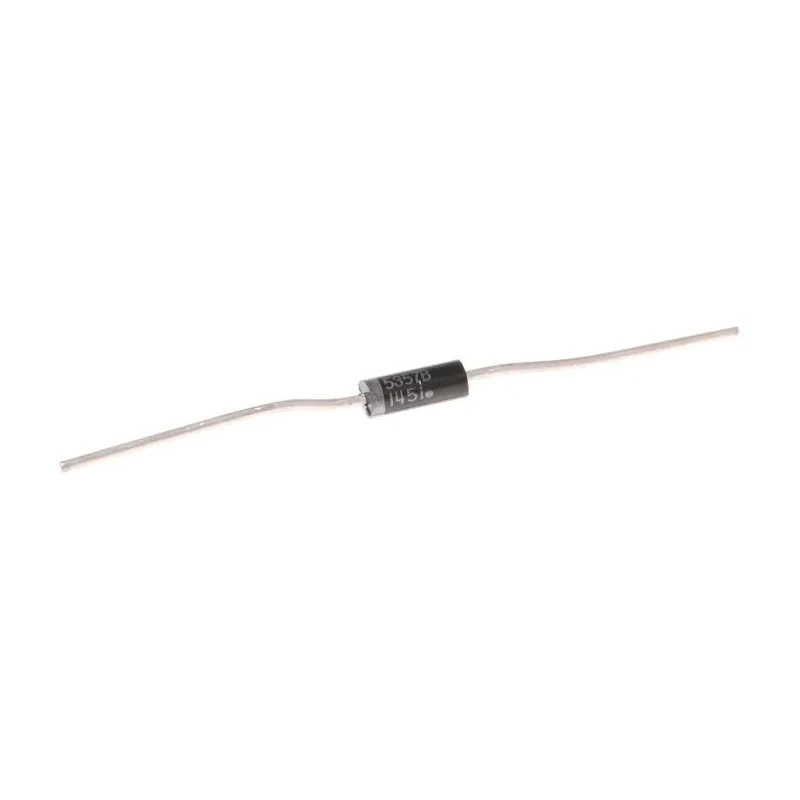

onsemi Zener Diode 20 V, 5 W, 5% Tolerance, Single Diode, Through Hole Mount, DO-15 Package 1N5357BRLG

Name: onsemi Zener Diode 20 V, 5 W, 5% Tolerance, Single Diode, Through Hole Mount, DO-15 Package 1N5357BRLG
Brand: onsemi
SKU: 202101
Price: 0.32 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.68mm
Length	8.89mm
Model	1N5357BRLG
Mount Type	Through Hole
Series	1N53
Maximum Operating Temperature	200°C
Package Type	DO-15
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	5W
Diode Configuration	Single
Test Current It	65mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	20V
Zener Type	Voltage Regulator
Maximum Zener Impedance	3Ω

Key Features

The diode features single-element construction in a DO-15 through-hole package for easy mounting.
It has a maximum reverse leakage current of 500 nA and a test current of 65 mA.
Designed to operate reliably within a temperature range of -65°C to 200°C.
The package measures 8.89 mm in length and 3.68 mm in height ensuring compactness.
It exhibits a maximum Zener impedance of 3 Ohms for stable voltage regulation.
The leads are corrosion-resistant and easily solderable, suitable for various industrial applications.
Applications include power regulation and voltage stabilization in electronic devices and circuits.

Product Description

onsemi 1N5357BRLG is a single-element Zener Diode engineered as a voltage regulator with a nominal voltage of 20 V and a power dissipation capability of 5 W. It is mounted through a DO-15 through-hole package type, facilitating robust mechanical and electrical connections in electronic assemblies.

The device exhibits a tight regulation voltage tolerance of ±5%, making it ideal for precision voltage regulation tasks. It supports a test current of 65 mA and maintains a maximum Zener impedance of 3 Ohms, contributing to stable operation under varying loads.

Designed for reliability, the diode operates over a wide temperature range from -65°C to 200°C. Its compact package dimensions of 8.89 mm length and 3.68 mm height make it suitable for space-constrained applications.

The corrosion-resistant molded package with thermosetting plastic protects the internal junction against environmental damage and extends the device's operational lifespan. Leads are designed for ease of soldering, ensuring quick and secure circuit integration.

This Zener Diode is widely used in industrial applications requiring voltage regulation, including discrete semiconductor circuits, power supplies, and electronic protection systems. Its robust construction and regulatory compliance make it an excellent choice for demanding electrical environments.

The diode is a single configuration device, optimized for voltage regulation. It provides a reliable 20 V nominal Zener voltage with 5% tolerance. The device supports a power dissipation of 5 W for heavy-duty functionality.

Its DO-15 package and through-hole mount are suited for industrial PCB assembly. Temperature operation range from -65°C to 200°C ensures extended usability. Corrosion-resistant leads enhance durability in harsh conditions.

Compact dimensions allow integration into tight spaces. Explore wide-ranging semiconductor components in the Zener Diode category for tailored solutions to your industrial and electronic circuitry needs at EnvMart.
