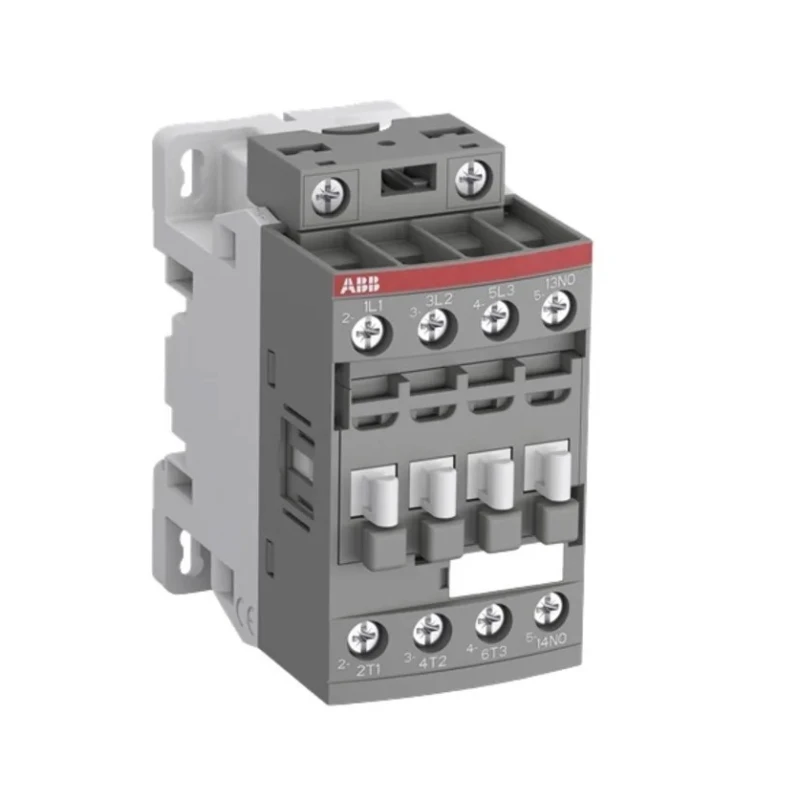

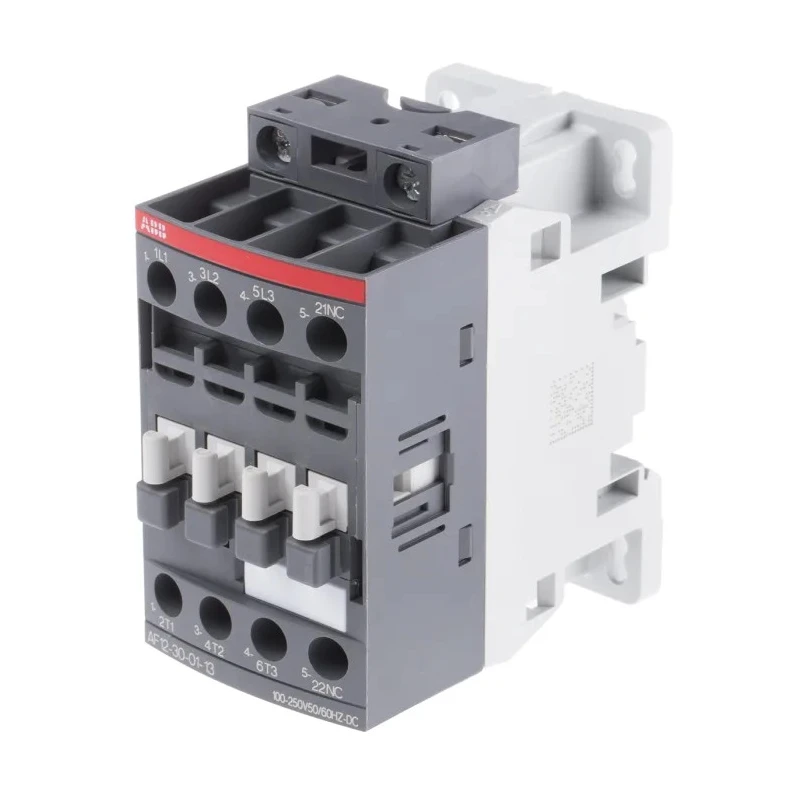

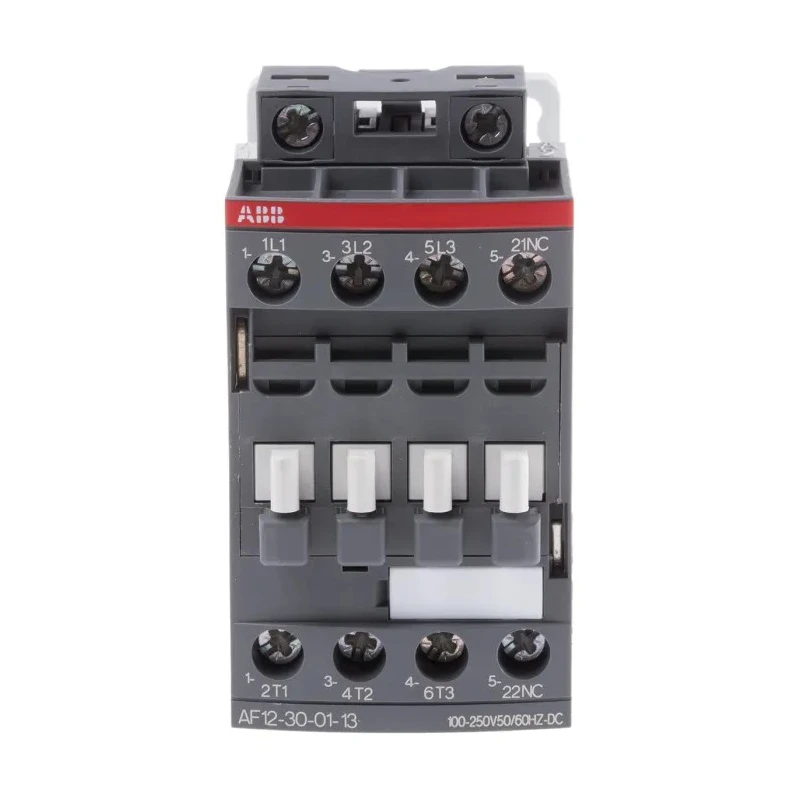

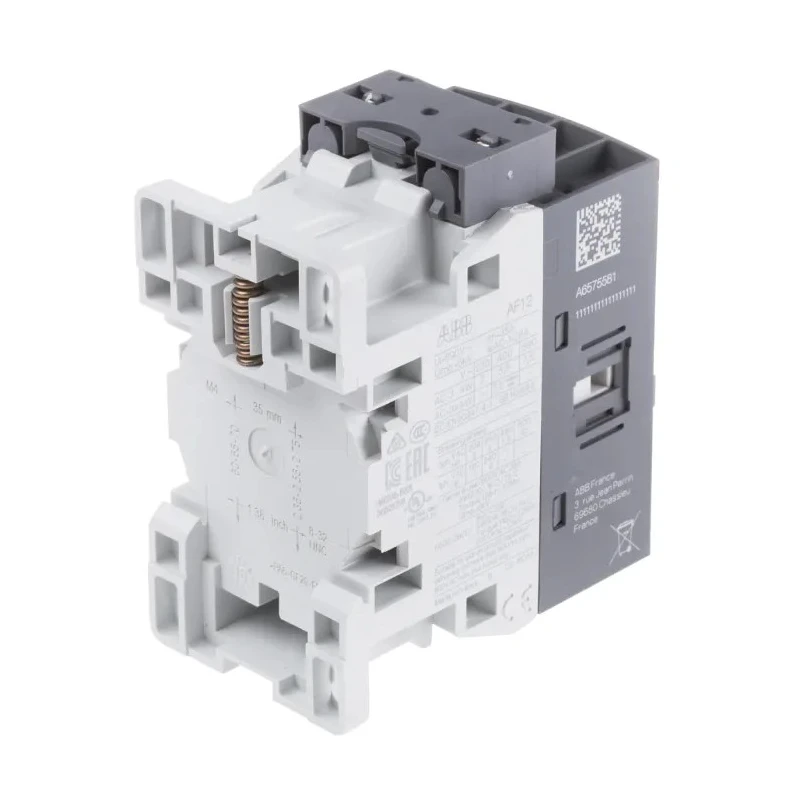

ABB Motor Control Contactor, 230V AC Coil, 3-Pole, 9 A Contact Current, 5.5 kW Power Rating AF12



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Motor Control
Length	80mm
Model	AF12
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF12
Power Rating	5.5kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	CCC, CSA, EAC, IEC, RoHS, UL
Contact Voltage	690V ac
Coil Voltage	230V ac
Normal State Configuration	3 NO
Contact Current	9A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NC
Operational Current Ie	12A
Control Circuit Voltage Uc	250V
Pole and Throw Configuration	3

Key Features

Designed for motor control with robust 3-pole contact configuration.
Wide operating temperature range from -40°C to 70°C for durable performance.
Includes screw-type terminals ensuring secure and vibration-resistant connections.
Equipped with one auxiliary contact configured as 1 NC for control logic integration.
Compact dimensions (80 mm length x 45 mm width x 77 mm depth) save installation space.
Supports control circuit voltage of 250V for flexible industrial applications.
Mounts easily on DIN rail for convenient setup in electrical panels.
Compliant with multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL.

Product Description

ABB AF12 motor control contactor is engineered to deliver reliable and efficient control of motors and industrial circuits. Featuring a 230V AC coil voltage and 3-pole design, this contactor supports a contact current rating of 9A and a power rating of 5.5 kW suitable for medium-power motor starters, heating systems, and lighting installations.

The device operates effectively across a wide temperature range from -40°C to 70°C, making it durable in demanding industrial environments. Its screw-type terminals ensure stable and secure electrical connections even when exposed to vibration, while the compact dimensions of 80mm length, 45mm width, and 77mm depth aid in saving panel space.

This contactor includes one auxiliary contact (normally closed) useful for integrating with control units and logic controllers. The DIN rail mounting type facilitates straightforward installation in standard electrical cabinets.

ABB AF12 contactor complies with essential international certifications such as CCC, CSA, EAC, IEC, RoHS, and UL, ensuring quality and safety. Its built-in surge protection eliminates the need for additional suppressors, protecting downstream equipment from overload damage effectively.

Typical applications encompass motor starters, industrial automation controls, HVAC systems, and alarm systems requiring dependable switching components. Designed for motor control with robust 3-pole contact configuration.

Wide operating temperature range from -40°C to 70°C for durable performance. Includes screw-type terminals ensuring secure and vibration-resistant connections. Equipped with one auxiliary contact configured as 1 NC for control logic integration.

Compact dimensions (80 mm length x 45 mm width x 77 mm depth) save installation space. Supports control circuit voltage of 250V for flexible industrial applications. Mounts easily on DIN rail for convenient setup in electrical panels.

Compliant with multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL. Built-in surge protection enhances safety against electrical overloads. Browse more ABB Contactors and automation products at EnvMart to find the right fit for your industrial and commercial electrical control needs.
