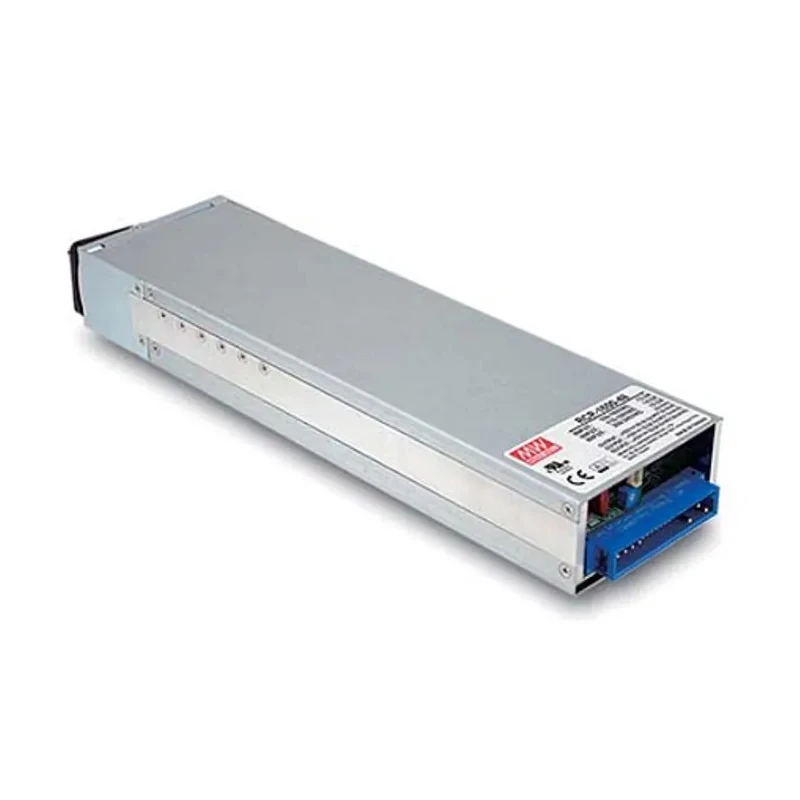

MEAN WELL 24V dc 1.61 kW Rack Mount Switching Power Supply RCP-1600-24

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL 24V dc 1.61 kW Rack Mount Switching Power Supply RCP-1600-24

Name: MEAN WELL 24V dc 1.61 kW Rack Mount Switching Power Supply RCP-1600-24
Brand: MEAN WELL
SKU: 192449
Price: 821.79 USD
Availability: InStock



Category Switching Power Supply Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	1.61kW
Efficiency	91%
Length	41mm
Model	RCP-1600-24
Depth	41mm
Gross Weight	1.9kg
Width	85mm
Mount Type	Rack
Series	RCP-1600
Output Current	67A
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Maximum Output Voltage	24V dc
SMPS Output Current	0, 67A
Minimum Input Voltage	90V ac

Key Features

Operates with a wide input voltage range from 90V ac to 264V ac.
Equipped with integrated DC fan for forced air cooling up to 70°C.
High power density up to 25 W per square inch in a compact 1U low-profile package.
Built-in advanced protection features including short circuit, overload, over voltage, and over temperature protections.
Supports communication protocols with integrated I²C interface and PMBus for monitoring and control.
Achieves high energy efficiency of approximately 91 percent.
Suitable for use in industrial automation and wireless telecommunication systems.
Compliant with multiple global standards such as UL/EN/IEC 60950-1 and EMC EN 55022/55024.

Product Description

MEAN WELL RCP-1600-24 switching power supply offers a reliable 24V dc output at 1.61 kW power, designed specifically for rack mount installation. It supports a broad AC input voltage range of 90 to 264 volts, ensuring compatibility with various power environments. The unit is cooled effectively by an integrated speed-controlled DC fan capable of operation up to 70°C ambient temperature. This power supply is engineered to deliver high power density within a compact 1U chassis, optimized for space-constrained industrial applications.

This Switching Power Supply incorporates extensive protection features such as short circuit, overload, over voltage, and over temperature safeguards to prolong system reliability and safety. An integrated I²C interface and PMBus protocol enable advanced monitoring, control, and programming options.

Featuring up to 91% efficiency and built-in active power factor correction (PFC), the RCP-1600-24 minimizes energy losses, making it an energy-efficient choice for demanding industrial and telecommunication needs.

This model complies with multiple international safety and electromagnetic compatibility standards, including UL/EN/IEC 60950-1 and EMC standards EN 55022 and EN 55024, ensuring dependable operation in rigorous environments.

Typical applications include constant current source roles, electric vehicle charger systems, redundant power system configurations, industrial automation setups, and wireless communication infrastructure.

Wide input voltage range from 90 VAC to 264 VAC. Integrated speed-controlled DC fan for efficient cooling up to 70°C ambient temperature. High power density design within a 1U rack mount form factor. Comprehensive protection features to safeguard the power supply and connected loads.

Supports advanced communication and monitoring protocols via I²C and PMBus interfaces. Energy-efficient operation with up to 91% efficiency and active power factor correction. Compliance with international safety and EMC standards for reliable industrial use.

Designed for harsh industrial, telecommunication, automation, and electric vehicle charger applications. Explore MEAN WELL products and reliable switching power supplies for industrial and commercial applications on EnvMart.
