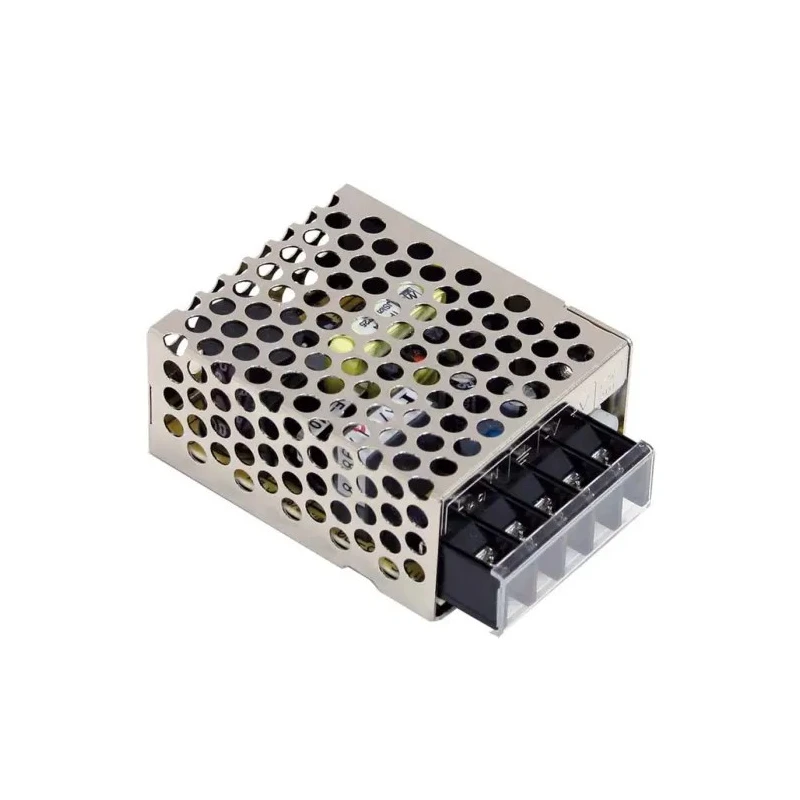

Mean Well RS-15-24 Switching Power Supply 24V DC 15W Chassis Mount Single Output 625mA
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 15W |
| Efficiency | 82% |
| Length | 62.5mm |
| Model | RS-15-24 |
| Depth | 28mm |
| Gross Weight | 130g |
| Width | 51mm |
| Mount Type | Chassis |
| Series | RS-15 |
| Cooling | Free air convection |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 625mA |
| Minimum Input Voltage | 85V ac |
Key Features
- Delivers 24V DC output at 15 W for efficient device powering.
- Supports universal AC input voltage from 85V AC to 264V AC and DC input from 120V DC to 370V DC.
- Chassis mount design simplifies integration in panels and enclosures.
- Provides up to 625mA output current and maintains high efficiency of 82%.
- Operates reliably across a wide temperature range from -20°C to 70°C.
- Features screw terminals for easy installation and adjustable output voltage.
- Integrated protection mechanisms include short circuit, overload, and overvoltage safeguards.
- Robust build enables operation under 5G vibration and rigorous full load burn-in testing.
Product Description
The Mean Well RS-15-24 Switching Power Supply is a compact, high-efficiency AC-DC embedded module that delivers a stable 24V DC single output at a rated power of 15W. Designed for industrial, laboratory, and electronic systems, it ensures robust and energy-efficient powering of sensitive devices.
This unit features a universal input supply range, accepting 85V AC to 264V AC or 120V DC to 370V DC, making it compatible with diverse power infrastructures. A chassis mount configuration allows straightforward installation into machine panels, control cabinets, and other integrated systems.
The RS-15-24 is equipped with screw terminals for rapid attachment and supports adjustable output voltage, accommodating custom circuit requirements. Its output capability of 625mA at 24V DC suits controllers, sensors, actuators, and small industrial loads. An impressive efficiency rating of 82% minimizes heat output and lowers operational cost.
Operating across a wide temperature range from -20°C to 70°C, the product uses free air convection for cooling, eliminating the need for fans and ensuring quiet, reliable performance. Long-life electrolytic capacitors rated at 105°C increase durability and operational lifespan.
Integrated power-on LED indicator, short circuit, overload, and overvoltage protection provide high reliability and safety. The RS-15-24 withstands rigorous full load burn-in and a 5G vibration test, promoting trouble-free operation under demanding industrial and laboratory conditions.
It complies with global standards and approvals including AS/NZS62368.1, BSMI CNS143361, CCCGB4943.1, CSA C22.2 No. 62368-1, EAC TP TC 00, IS 13252(Part1)/IEC 60950-1, TUV BS EN/EN 62368-1, UL 62368-1, and EMC criteria EN 61000-3-2, EN 55022 class B.
Ideal for use in automation panels, electronic equipment, HVAC controllers, test apparatus, instrumentation, and other professional environments where stable DC power and reliable protection are essential.
Browse the EnvMart selection for more Mean Well power solutions and industrial-grade power supplies suitable for diverse applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Mean Well RS-15-24 delivers a stable output voltage of 24V DC with a power rating of 15W.
It supports a universal input voltage range from 85V AC to 264V AC and from 120V DC to 370V DC.
The maximum output current of this model is 625mA at 24V DC.
The dimensions are 62.5mm in length, 51mm in width, and 28mm in depth.
It uses free air convection for cooling, eliminating the need for fans and ensuring quiet operation.
The efficiency rating of the RS-15-24 is 82%, which helps to minimize heat output and operational costs.
It operates reliably across a wide temperature range from -20°C to 70°C.
This model features a chassis mount design, simplifying integration into panels and enclosures.
It includes short circuit, overload, and overvoltage protection mechanisms for enhanced safety and reliability.
It complies with various global standards including AS/NZS62368.1, UL 62368-1, and EN 61000-3-2 among others.
It is ideal for use in automation panels, electronic equipment, HVAC controllers, and instrumentation where stable DC power is essential.
The unit features screw terminals for easy installation, making it straightforward to attach to circuits and systems.
