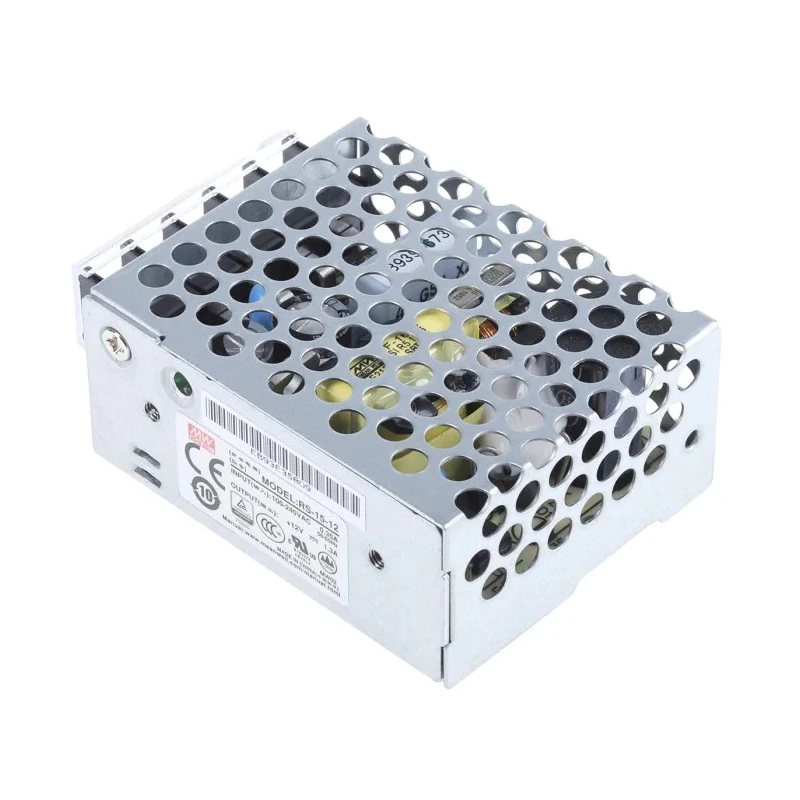

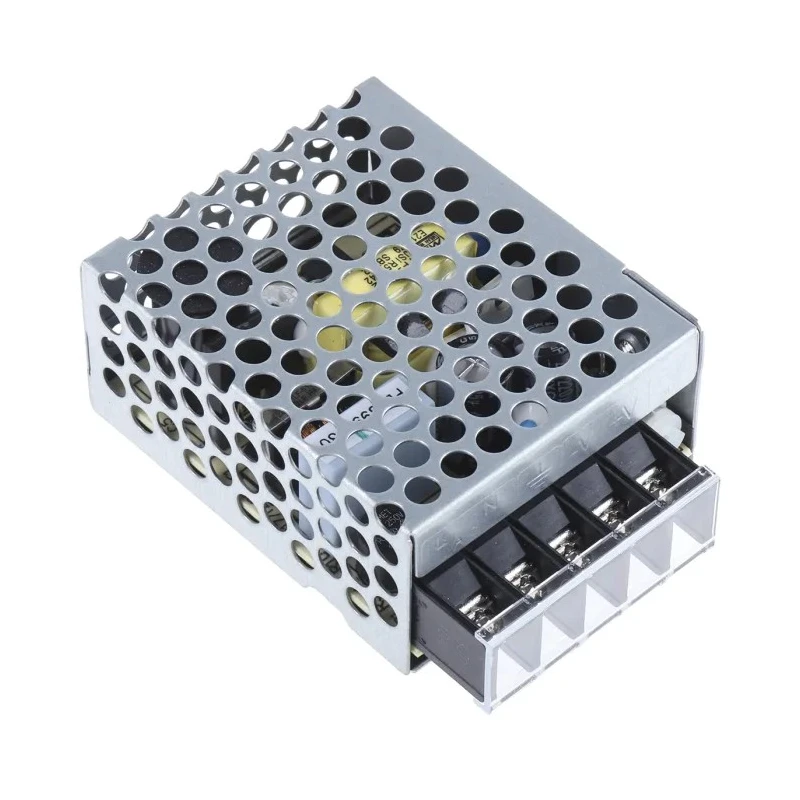

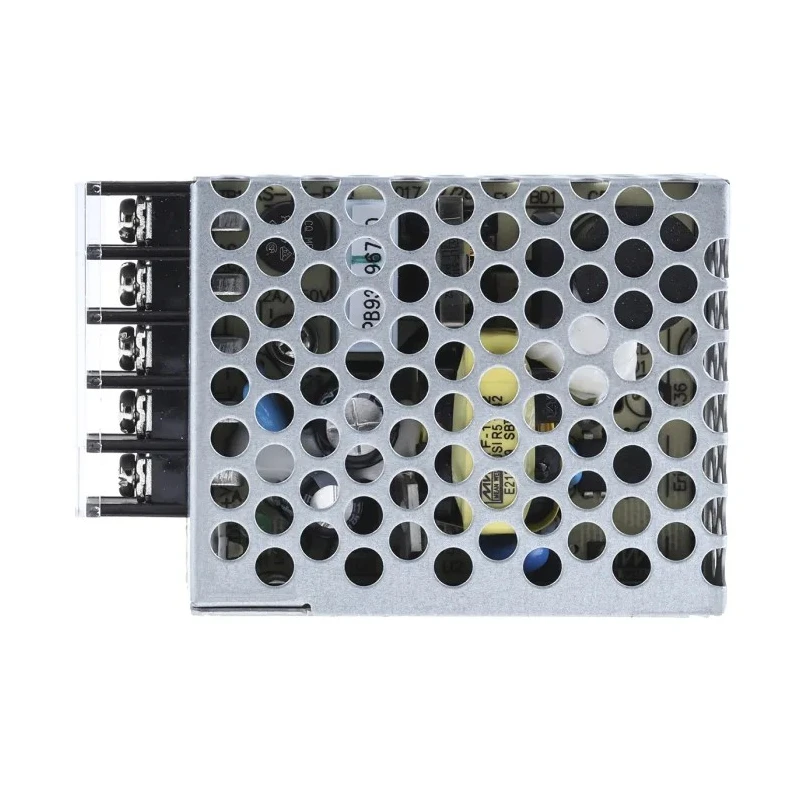

Mean Well Switching Power Supply 12V DC, 15.6W, Chassis Mount, Universal Input, RS-15-12

The Mean Well RS-15-12 is a compact Switching Power Supply engineered for industrial and commercial applications requiring secure DC power delivery. Designed to provide a regulated 12V DC output with a maximum load of 1.3A, this unit delivers 15.6W of power in a robust, chassis mount form factor.

Featuring a universal input voltage range (85VAC to 264VAC and 120VDC to 370VDC), the RS-15-12 allows for flexible deployment in a wide variety of electrical systems and control panels. Its compact dimensions (62.5mm length, 51mm width, 28mm depth) fit easily into tight installation spaces while maintaining a gross weight of just 130g.

Efficiency is a highlight, with up to 81% conversion rate, minimizing energy loss and heat output. The supply operates reliably across ambient temperatures from -20°C up to 70°C, ideal for demanding industrial settings. The built-in power-on LED indicator provides clear visual feedback, while screw terminals simplify wiring and installation.

Protection features include overload, overvoltage, and short circuit safeguards, ensuring safe operation and reducing downtime. The adjustable output voltage and cooling by free air convection further enhance versatility. The RS-15-12 is certified by several international standards (EAC TP TC 00, CSA, TUV, UL, BSMI, etc.), supporting compliance for regulated markets.

Applications for this unit include industrial control panels, automation, embedded systems, instrumentation, and any use case demanding reliable low-voltage DC supply from universal AC mains input. With its high power density and long-life rated electrolytic capacitors (105°C), it is suitable for continuous duty cycles. It has passed rigorous vibration and burn-in tests for reliability.

This product is part of the RS-15 series, offering similar capabilities across varying voltage ranges. The RS-15-12 is manufactured in China and is intended for use in environments requiring both performance and compliance, such as manufacturing, laboratory, HVAC control systems, and electronics equipment assembly.

Provides regulated 12V 1.3A DC power for electronic devices. Universal input (85 - 264VAC, 120 - 370VDC) for broad compatibility. Compact chassis-mount design saves space in panels and equipment. Efficiency up to 81% for reduced operating costs.

Wide operating temperature for harsh industrial applications. Comprehensive protection features protect connected devices. LED indicator and screw terminal for easy installation. Multiple certifications ensure international compliance.
