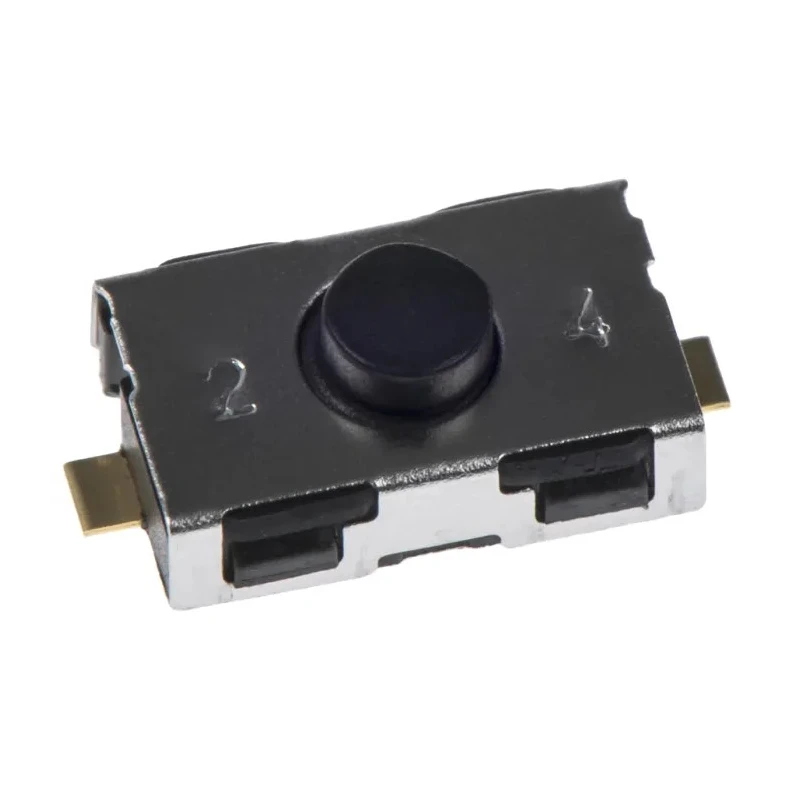

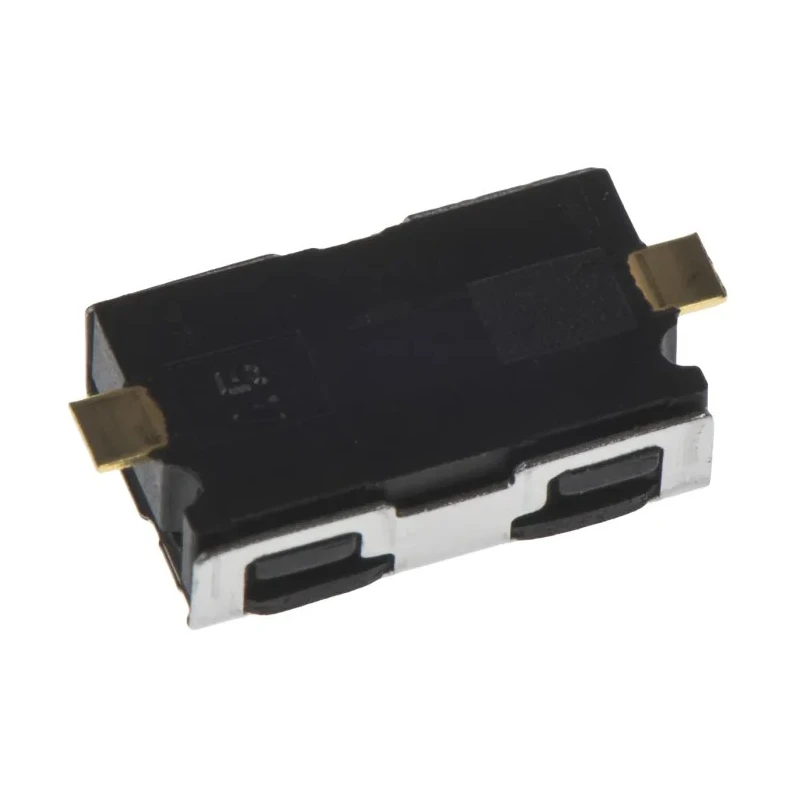

C & K IP50 Black Tactile Switch Button 0.8 mm 10mA 32 V dc SPST Surface Mount KSR224G LFG

Name: C & K IP50 Black Tactile Switch Button 0.8 mm 10mA 32 V dc SPST Surface Mount KSR224G LFG
Brand: C & K
SKU: 164862
Price: 1.17 USD
Availability: InStock



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	France
Brand	C & K
Height	2.5mm
Length	7.3mm
Model	KSR224G LFG
IP Rating	IP50
Width	3.8mm
Mount Type	Surface
Series	KSR
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-40°C
Terminal type	Surface Mount
Standards/Approvals	RoHS
Switch Operation	Off-On
Actuator Colour	Black
Actuator Length	0.8mm
Contact DC Voltage	32V dc
Actuator Style	Button
Actuator Orientation	Top
Switch Contact Current	10mA
Operating Force	2N
Mechanical Life	200000Operations
2 types of contacts available	Gold (1 VA) or silver (0.2 VA)
C & K IP50 Black Tactile Switch Button, 0.8 mm, SPST 50mA 32 V dc, SurfaceBrand	C & K

Key Features

This tactile switch features a 10mA 32 V dc contact rating for efficient circuit control.
Durable IP50-rated sealing provides protection against dust ingress.
The actuator has a top button style with a 2N operating force for precise actuation.
Maximum operating temperature is rated at 125°C, with a minimum of -40°C supporting diverse environments.
Mechanical lifespan of 200,000 operations ensures reliable long-term use.
Constructed with black plastic actuator and gullwing terminations for surface mount assembly.
Complies with RoHS standards ensuring eco-friendly components.
Typical applications include automotive electronics, industrial electronics, cellular phones, computers, and network equipment.

Product Description

The C & K KSR224G LFG tactile switch button is a precision subminiature switch designed for surface-mount technology (SMT) applications, offering reliable performance in a compact form factor with a black actuator measuring 0.8 mm in length.

This switch has an SPST (Single Pole Single Throw) contact configuration and operates with an off-on action, capable of switching currents up to 10 mA at 32 V dc, ideal for low power signal applications.

It features a robust IP50 rating, providing dust protection which makes it suitable for industrial and automotive environments requiring ingress resistance. The actuator style is a top-mounted button with a required operating force of 2 Newtons, facilitating precise tactile feedback for user interfaces.

Designed to endure 200,000 mechanical operations, this tactile switch offers long service life and reliability in demanding manufacturing and consumer electronics settings. Its height is 2.5 mm with overall dimensions of 7.3 mm length and 3.8 mm width, incorporating gullwing terminals for easy mounting on printed circuit boards.

The switch complies with RoHS directives, supporting environmentally responsible manufacturing and use.

Common use cases include automotive systems, cellular devices, industrial electronics, computer peripherals, and networking hardware where compact, reliable tactile feedback is essential.

This Tactile Switch offers compact and reliable switching in a subminiature footprint. Suitable for surface mount PCB assembly with gullwing terminations. IP50 dust protection enhances durability in industrial applications.

Long mechanical life ensures sustained operational reliability. Complies with RoHS environmental and safety standards. Browse the Electronics & Electricals category on EnvMart for more high-quality switches and components from leading manufacturers like C & K.
