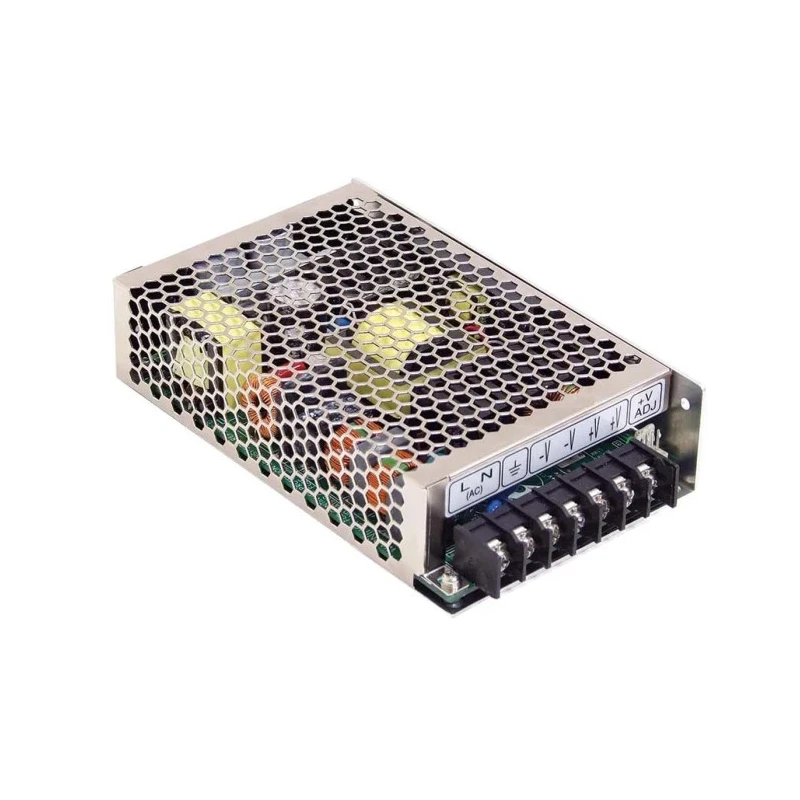

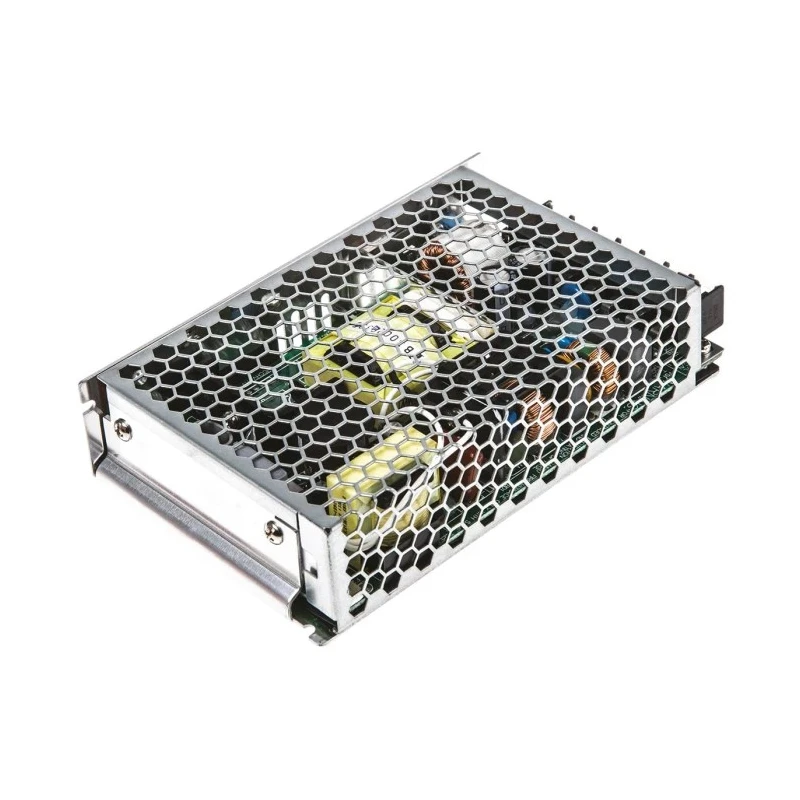

MEAN WELL Switching Power Supply HRP-150-5, 5V DC, 130W, Chassis Mount, Single Output, Model HRP-150-5

MEAN WELL HRP-150-5 Switching Power Supply is a high-performance industrial power solution suitable for demanding electronics and automation environments. Engineered with a single output at 5V DC and a maximum power rating of 130W, it delivers consistent and regulated power for components requiring substantial current. This unit’s robust chassis mount design is tailored for secure installation in panels, machinery, or rack assemblies.

With a maximum output current of 26A, the HRP-150-5 is capable of supporting high-load circuits, controllers, and embedded systems commonly found in manufacturing, laboratory, and commercial electronic setups. It tolerates an AC input voltage range from 85V to 264V, allowing for international deployment and compatibility with varied mains supply standards. The device operates efficiently, achieving up to 85% conversion efficiency, which helps reduce operational losses and thermal buildup.

Designed for reliable operation across extreme temperatures, the HRP-150-5 functions safely from -40°C up to 70°C, ensuring stability in production facilities, test benches, process controllers, and industrial equipment. Its compact dimensions (159 mm length, 97 mm width, 38 mm depth) make it suitable for integration in tight spaces, while the solid build quality (gross weight 610 g) enhances durability and long service life.

Safety and certification standards are met with approvals such as TUV BS ENEN 6681, UL 6681, ASNZS 668.1, and EAC TP TC 004, supporting use in regulated production environments. The unit also features power factor correction (PFC) for improved energy management, and low standby power consumption for energy-saving operation. Typical applications include industrial control systems, electronics assembly, laboratory instrumentation, automated test equipment, and commercial electronics installations where reliable DC power is critical.

Max output voltage: 5V DC; output power: 130W; single output. Output current: up to 26A with high efficiency (85%). Chassis mount for secure installation in panels and enclosures. Wide operating temperature range: -40°C to 70°C.

AC input compatibility: 85V to 264V. Dimensions: 159 mm x 97 mm x 38 mm; gross weight: 610 g. Certified for TUV, UL, ASNZS, and EAC standards. Power factor correction and energy efficient standby operation.

The MEAN WELL HRP-150-5 Switching Power Supply is ideal for industrial power supply, laboratory electronics, automation, manufacturing systems, and commercial DC power requirements. Explore more power supply solutions in the Electronics & Electricals category at EnvMart to match your specific application needs.
