| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 0.53mm |
| Length | 1.07mm |
| Model | D4V5H1BS2LP-7B |
| Width | 0.67mm |
| Mount Type | Surface |
| Series | DxV0 |
| Maximum Operating Temperature | 150°C |
| Package Type | X1-DFN |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 8.8V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 4.8V |
| Maximum Reverse Stand-off Voltage Vwm | 4.5V |
| Peak Pulse Power Dissipation Pppm | 528W |
| Maximum Peak Pulse Current Ippm | 60A |

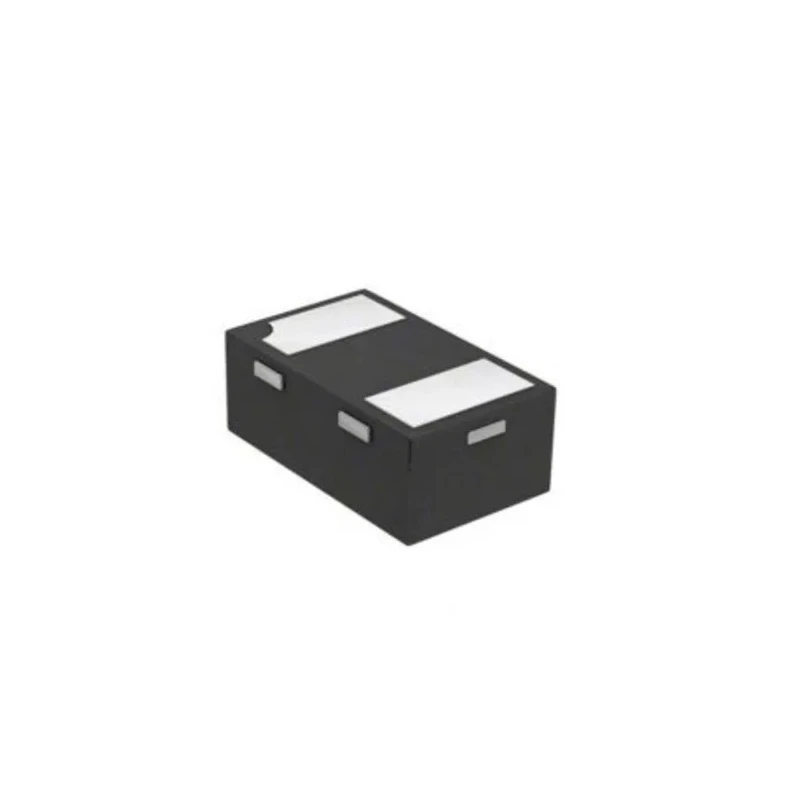

DiodesZetex D4V5H1BS2LP-7B 1-element bi-directional TVS diode is engineered to protect sensitive electronic components from electrostatic discharge and transient voltage spikes. It delivers a peak pulse power dissipation of 528 W in a low-profile 2-pin X1-DFN surface mount package.
The device offers excellent ESD protection per IEC 61000-4-2, as well as surge and lightning protection in accordance with IEC 61000-4-5 standards. Its compact dimensions of 1.07 mm length, 0.67 mm width, and 0.53 mm height make it ideal for space-constrained applications such as cellular phones, digital cameras, MP3 players, and other portable electronics.
Operating safely in temperature extremes from -55°C to 150°C, it features a minimum breakdown voltage of 4.8 V and maximum reverse standoff voltage of 4.5 V. The clamping voltage of 8.8 V provides effective suppression of voltage spikes. The device supports a maximum peak pulse current of 60 A and contains a single protective element per chip.
This model is automotive qualified to the AEC-Q101 standard, ensuring robust reliability in automotive electronic systems. Its surface mount design allows easy PCB assembly for industrial, automotive, consumer electronics, and telecommunication applications.
Key features include single diode configuration, bi-directional operation, and compatibility with portable and compact devices. This diode is part of the DxV0 series designed for efficient ESD and transient voltage protection.
Provides ESD protection according to IEC 61000-4-2 standard. Operates over a temperature range from -55°C to 150°C. Features a minimum breakdown voltage of 4.8 V and maximum reverse standoff voltage of 4.5 V. Clamping voltage is rated at 8.8 V for surge protection.
Compact dimensions of 1.07 mm length, 0.67 mm width, and 0.53 mm height enable usage in portable electronics. Capable of handling a maximum peak pulse current of 60 A with 1 element per chip. Automotive grade with AEC-Q101 qualification.
Designed for surface mounting on printed circuit boards.
This product is categorized under TVS Diodes for use in electronics manufacturing, telecommunications equipment, and automotive electronics. Explore the full range of DiodesZetex protection components on EnvMart for reliable circuit safeguarding solutions.
