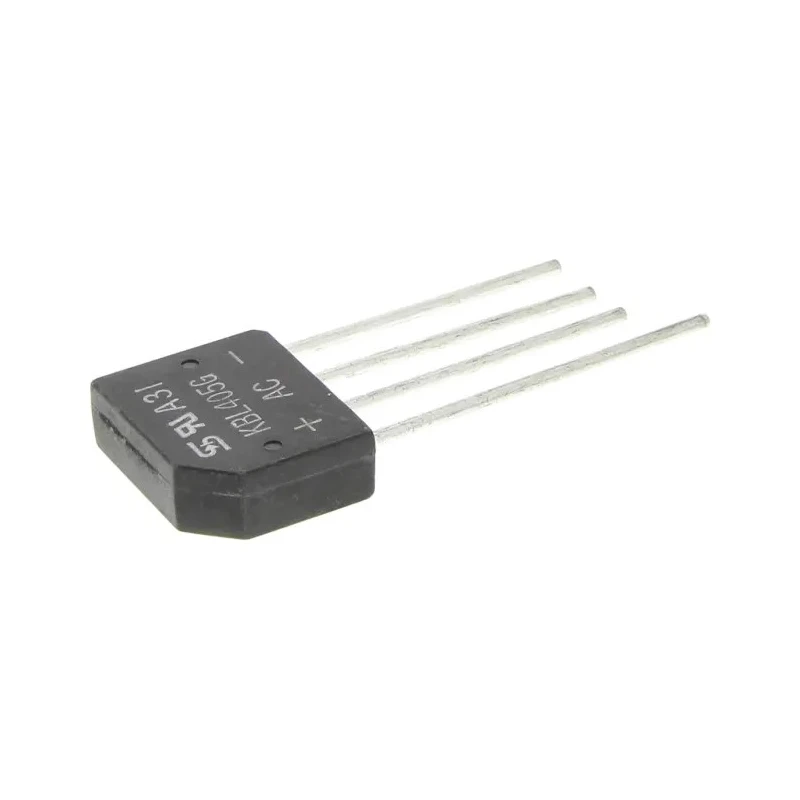

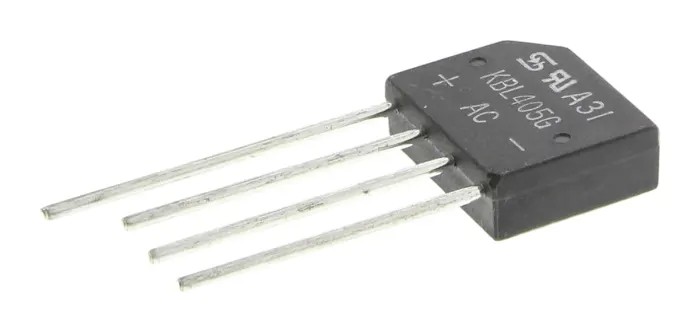

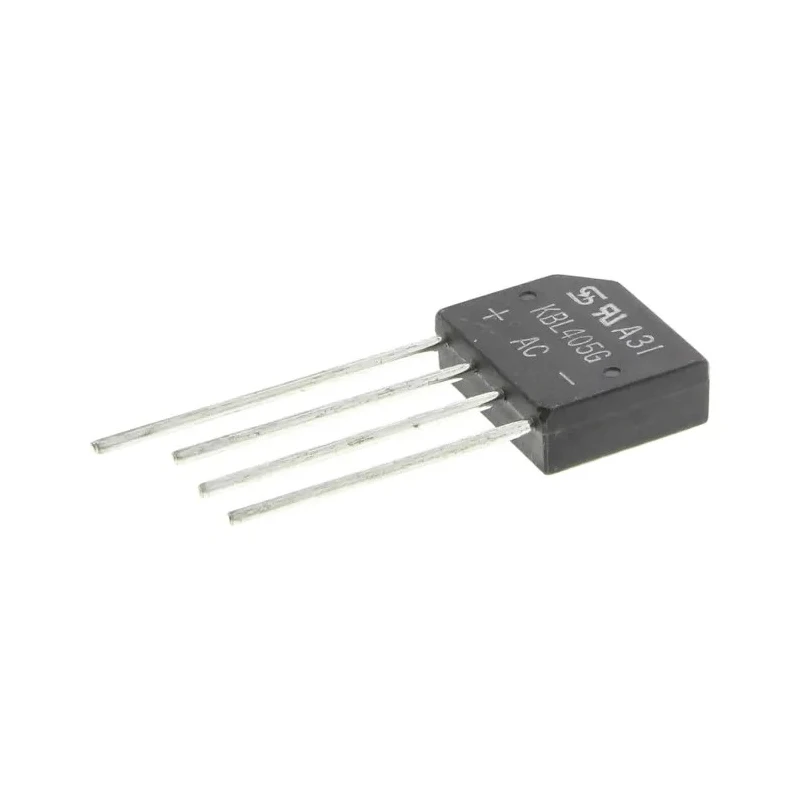

Taiwan Semiconductor Bridge Rectifier 600 V 150 A 4-Pin Single KBL405G T0
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 16.38mm |
| Length | 19.6mm |
| Model | KBL405G T0 |
| Width | 6.48mm |
| Mount Type | Through Hole |
| Series | KBL4 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | KBL |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Forward Current If | 4A |
| Peak Forward Voltage Vf | 1.1V |
| Vishay Bridge Rectifier, 600 V 200 A, 4-Pin SingleBrand | Vishay |
Key Features
- Supports peak reverse repetitive voltage of 600 volts.
- Maximum forward current rating of 4 amps ensures steady performance.
- Operates within a temperature range of -55°C to 150°C.
- Features a peak non-repetitive forward surge current of 150 amps.
- Single phase configuration with 4-pin through-hole mount package.
- Glass passivated junction enhances durability and longevity.
- Low peak forward voltage of 1.1 volts reduces power loss during operation.
Product Description
Taiwan Semiconductor KBL405G T0 Bridge Rectifier is a high-performance power semiconductor device with a peak reverse repetitive voltage rating of 600 V and a maximum forward current of 4 A. Designed for through-hole PCB mounting, it features a compact 4-pin KBL package configuration suitable for industrial, electronic, and power conversion applications.
This Bridge Rectifier converts AC input to DC output efficiently, utilizing four diodes arranged in a bridge circuit. It handles peak non-repetitive forward surge current of 150 A, making it suitable for transient conditions.
The device operates reliably within a temperature range of -55°C to 150°C, with a glass passivated junction to ensure long-term stability and durability. Its low peak forward voltage of 1.1 V minimizes conduction losses, enhancing overall system efficiency.
Dimensionally, the rectifier measures 19.6 mm in length, 16.38 mm in height, and 6.48 mm in width, allowing for compact PCB designs. It is part of the KBL4 series and meets standard industrial quality and safety requirements.
Commonly used in electronic power supplies, industrial machinery, laboratory equipment, and other automated systems, this rectifier offers a cost-effective solution with strong thermal and electrical performance.
Peak reverse repetitive voltage: 600 V. Maximum forward current: 4 A. Operating temperature range: -55°C to 150°C. Peak non-repetitive forward surge current: 150 A. Package type: 4-pin KBL through-hole mount. Glass passivated junction for reliability.
Compact dimensions: 19.6 x 6.48 x 16.38 mm. Low peak forward voltage of 1.1 V. Explore more high-quality semiconductor components in EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the KBL405G T0 is 600 V.
This bridge rectifier has a maximum forward current rating of 4 A.
It operates reliably within a temperature range of -55°C to 150°C.
The peak non-repetitive forward surge current is 150 A.
The dimensions of this bridge rectifier are 19.6 mm in length, 6.48 mm in width, and 16.38 mm in height.
This model is designed for through-hole mounting.
The KBL405G T0 features a single-phase configuration.
The peak forward voltage is 1.1 V, which helps reduce power loss during operation.
This bridge rectifier is part of the KBL4 series.
The pin count for this model is 4 pins.
The glass passivated junction enhances reliability and longevity of the device.
It is commonly used in electronic power supplies, industrial machinery, laboratory equipment, and other automated systems.
