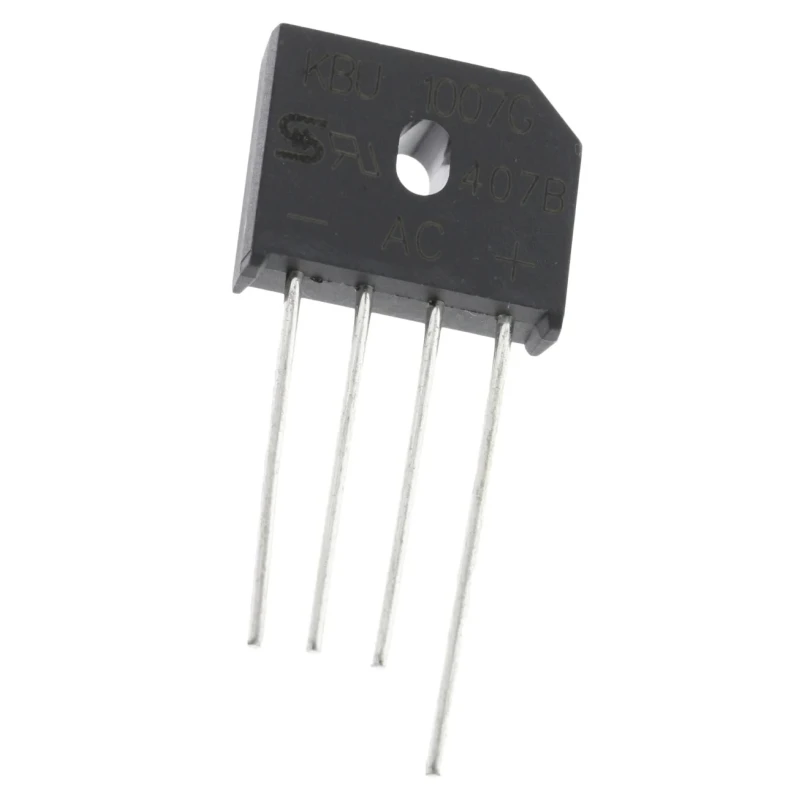

Taiwan Semiconductor Bridge Rectifier 1000 V 200 A 4-Pin Single KBU1007G

Taiwan Semiconductor KBU1007G Bridge Rectifier is a robust semiconductor device designed for efficient AC to DC conversion. This 4-pin single configuration rectifier supports a peak reverse repetitive voltage of 1000 V and maximum forward current of 10 A, making it suitable for demanding industrial and electronic applications.

Constructed in a compact KBU series SIL PCB mounting package, it measures 23.7 mm in length, 19.3 mm in height, and 7.1 mm in width. The device is engineered for through-hole mounting on printed circuit boards, featuring a glass passivated junction to ensure long-term reliability under thermal stresses.

Performance specifications include a peak non-repetitive forward surge current (Ifsm) of 200 A and a peak forward voltage of 1.1 V. Its operating temperature spans from -55°C to 150°C, accommodating various environmental conditions common in industrial, power electronics, HVAC, and manufacturing sectors.

This rectifier delivers minimal reverse current leakage at 5 μA, enhancing efficiency in power management circuits. Suitable for single-phase power conversion, the device fits into systems requiring durable and efficient rectification solutions.

Rated for 1000 V peak reverse voltage ensuring high voltage tolerance. Supports sustained forward current of 10 A for continuous operation. Can handle surge current peaks up to 200 A, ideal for transient conditions. Wide operating temperature range from -55°C to 150°C for harsh environments.

Compact through-hole SIL package simplifies PCB mounting and assembly. Glass passivated junction for increased device longevity and stability. Low power loss with peak forward voltage of just 1.1 V. Minimal leakage current preserves energy efficiency in circuits.

Four-pin configuration facilitates straightforward integration in designs.

The Taiwan Semiconductor KBU1007G bridge rectifier is well suited for industrial machines, power electronics, laboratory instruments, and commercial applications requiring reliable DC output from AC inputs. Its design ensures consistent performance in demanding operational environments.
