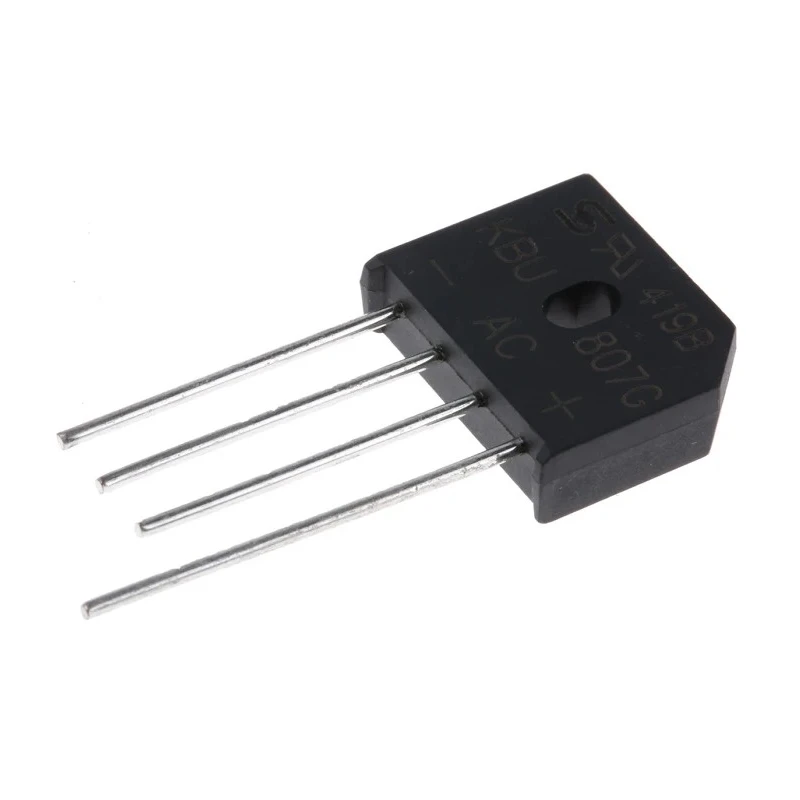

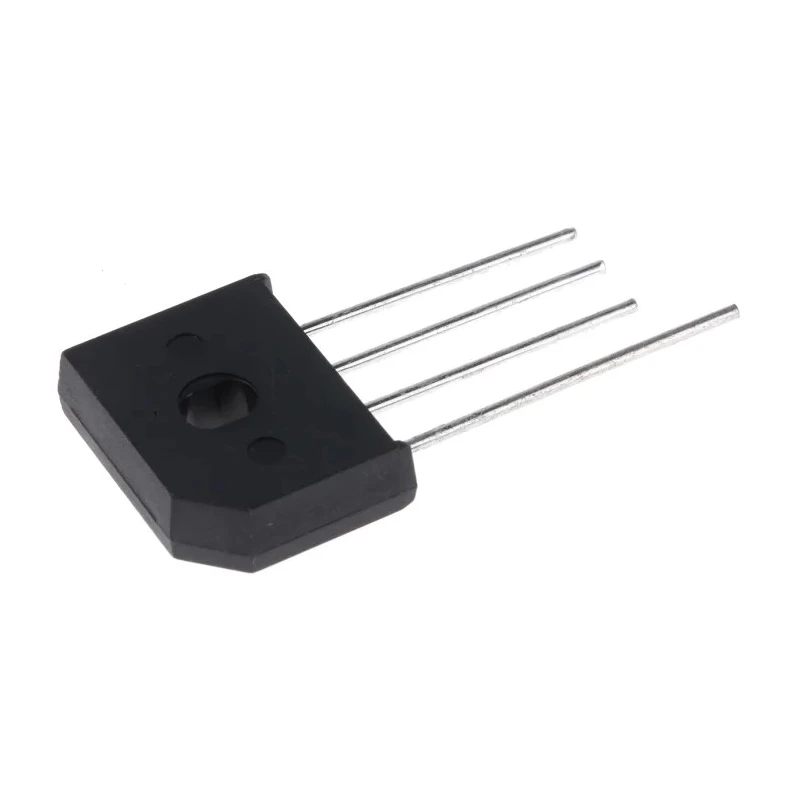

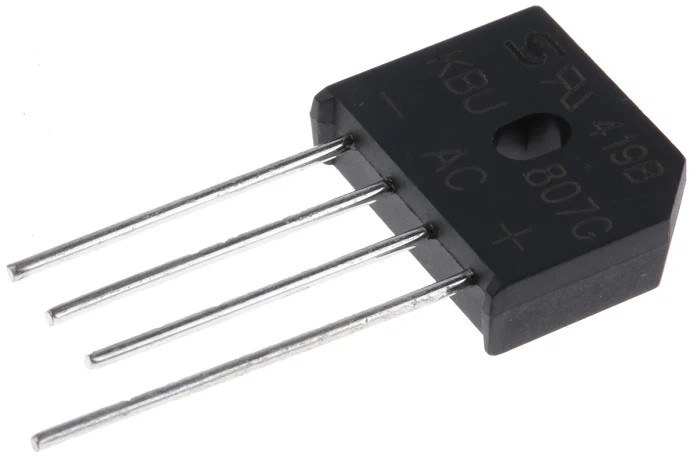

Taiwan Semiconductor Bridge Rectifier 1000 V 200 A 4-Pin Single KBU807G

Name: Taiwan Semiconductor Bridge Rectifier 1000 V 200 A 4-Pin Single KBU807G
Brand: Taiwan Semiconductor
SKU: 211938
Price: 1.4 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	China
Brand	Taiwan Semiconductor
Height	19.3mm
Length	23.7mm
Model	KBU807G
Width	7.1mm
Mount Type	Through Hole
Series	KBU8
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	KBU
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Forward Current If	8A
Peak Forward Voltage Vf	1V
Taiwan Semiconductor Bridge Rectifier, 8A, 1000V, 4-PinBrand	Taiwan Semiconductor

Key Features

Converts AC input into DC output using silicon diode technology.
Features a single-phase, 4-pin configuration optimized for PCB through-hole mounting.
Supports continuous forward current of 8 A with peak non-repetitive forward surge current of 200 A.
Operates reliably within a temperature range from -55°C to 150°C maximum.
Glass passivated junction enhances durability and reliability.
Designed for industrial and electronic applications including power supplies and signal rectification.

Product Description

Taiwan Semiconductor KBU807G bridge rectifier is a high-performance semiconductor device designed for converting alternating current (AC) to direct current (DC) in electronic circuits. This single-phase bridge rectifier uses four diodes arranged in a bridge configuration to provide a stable DC output regardless of the input polarity.

Rated for a peak reverse repetitive voltage of 1000 V and able to withstand peak non-repetitive forward surge currents up to 200 A, the KBU807G is suitable for demanding power electronics applications. Its continuous forward current rating of 8 A allows for consistent operation in equipment requiring robust rectification capabilities.

The rectifier uses a KBU package with through-hole mounting designed for easy integration onto printed circuit boards (PCBs). Its compact dimensions (23.7 mm length, 19.3 mm height, 7.1 mm width) make it versatile for space-constrained applications.

The device operates across a wide temperature range from -55°C up to 150°C maximum, ensuring reliable performance in harsh industrial environments. The glass passivated junction technology improves device longevity and temperature stability.

This bridge rectifier is commonly used in power supplies, industrial machinery, lighting controls, and other electrical engineering applications where AC to DC conversion is required. Its 4-pin single-phase design simplifies circuitry and improves efficiency.

Country of origin is China. The product is supplied new and meets quality standards for semiconductor components. It is not automotive certified but fits general electronic component needs.

Converts AC to DC efficiently with a 4-pin single configuration. High peak reverse voltage of 1000 V ensures durability under voltage stress. Supports up to 8 A forward current for continuous operation. Handles peak surge current of 200 A for transient power demands.

Compact footprint suitable for PCB mounting in industrial devices. Wide operating temperature range from -55°C to 150°C. Glass passivated junction for enhanced reliability. Explore more semiconductor components and Bridge Rectifiers on EnvMart for your industrial and electronic project needs.
