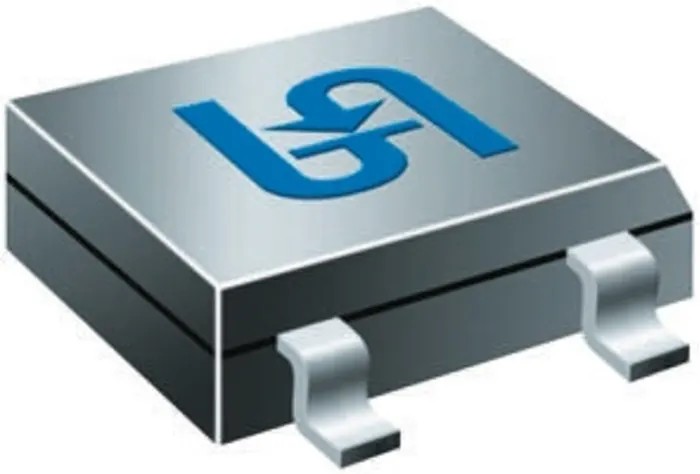

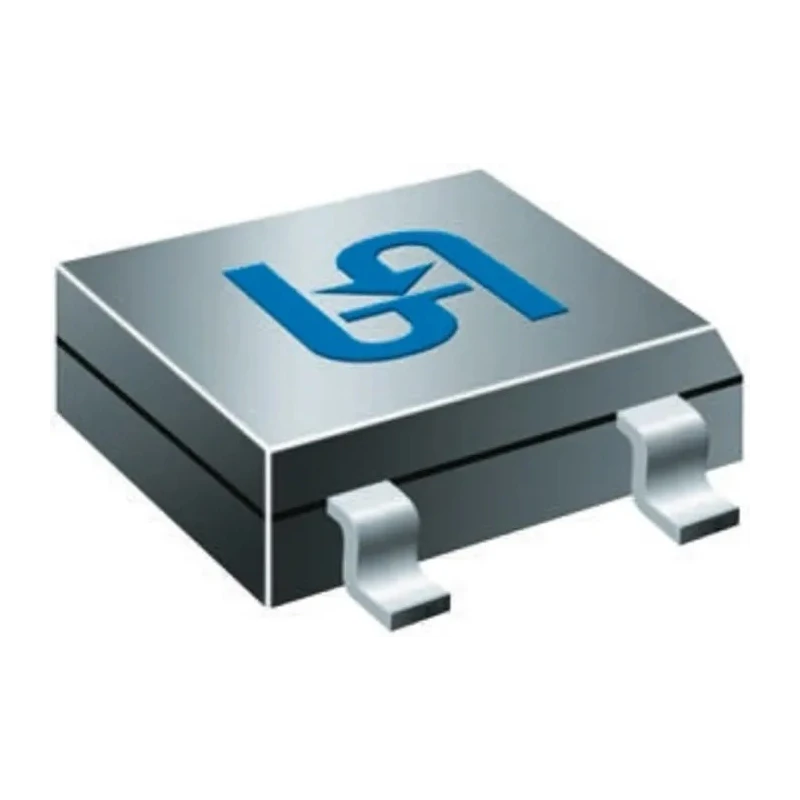

Taiwan Semiconductor Bridge Rectifier 600 V 40 A Surface Mount 4-Pin DBLS105G RD

Taiwan Semiconductor DBLS105G RD Bridge Rectifier is a robust semiconductor device rated for a peak reverse repetitive voltage of 600 V and peak forward surge current of 40 A. It is designed for surface mount applications with a compact DBLS package featuring a 4-pin single bridge configuration.

This bridge rectifier efficiently converts alternating current (AC) to direct current (DC) with reliable electrical performance. Its glass passivated junction construction enhances stability and durability, making it suitable for demanding industrial and automotive semiconductor applications.

The device can operate within a temperature range of -55°C to 150°C, maintaining performance under extreme conditions. Its low forward voltage of 1.1 V and minimal reverse current of 10 µA contribute to high efficiency and low power dissipation.

With a compact form factor of 8.51 mm length, 6.5 mm width, and 2.6 mm height, this component is optimized for PCB surface mount reflow soldering processes. It complies with the AEC-Q101 automotive standard, ensuring quality and reliability in automotive electronics systems.

This bridge rectifier is ideal for industrial power supply circuits, automotive electronic modules, laboratory power conversion setups, and consumer electronic devices requiring dependable voltage rectification.

Designed for efficient AC to DC conversion with a single 4-pin configuration. Features a maximum operating temperature of 150°C and minimum operating temperature of -55°C. Compact dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height.

Ideal for printed circuit board reflow soldering and surface mount applications. Complies with automotive standard AEC-Q101 ensuring reliability in automotive environments. Low peak forward voltage of 1.1 V supports high efficiency operation.

Maximum forward current rating of 1 A suitable for various power electronics uses. Peak non-repetitive forward surge current capability of 40 A for transient handling. Minimal peak reverse current of 10 µA reduces leakage and power loss.

Glass passivated junction design improves device longevity and stability.
