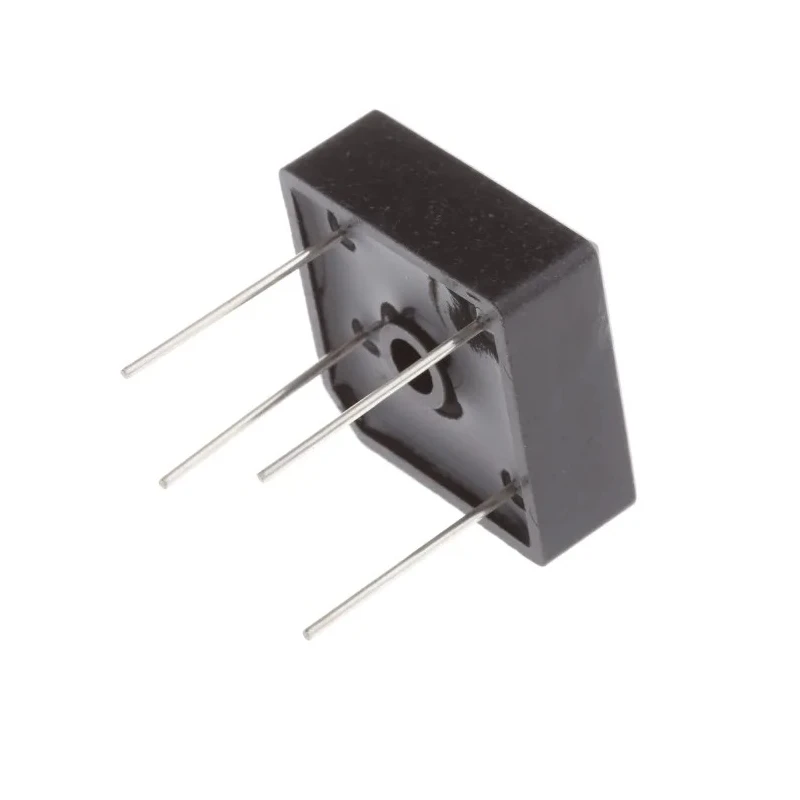

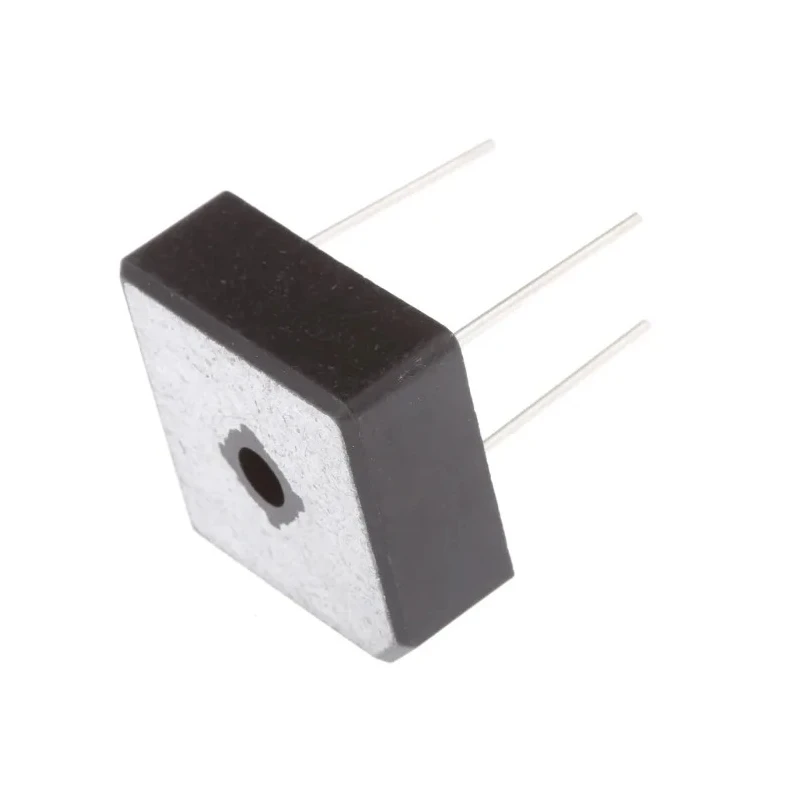

Taiwan Semiconductor Bridge Rectifier 800 V 300 A, 4-Pin Single GBPC2508W

Taiwan Semiconductor GBPC2508W Bridge Rectifier is a robust 4-pin single-phase device rated at 800 V and 300 A, engineered for converting alternating current (AC) into direct current (DC) in full-wave rectification applications. This component is built with high reliability, low thermal resistance, and compact GBPC package dimensions (29 mm length, 29 mm width, and 11.23 mm height), optimized for PCB through-hole mounting.

It supports a peak reverse repetitive voltage of 800 V and a maximum forward current of 25 A, suitable for industrial and commercial electronics demanding stable and efficient power supply. Its peak non-repetitive forward surge current rating of 300 A secures protection against transient surges. The operational temperature range from -50°C to 150°C allows use in various temperature environments including challenging industrial conditions.

This bridge rectifier features a low forward voltage drop of 1.1 V and minimal peak reverse current of 5 μA, which together ensure minimal power losses and improved efficiency in power conversion processes. The device is configured as a single-phase bridge with four pins for ease of integration into electrical circuits.

Incorporating an integrally molded heatsink, the rectifier offers excellent heat dissipation, enhancing performance reliability during prolonged use. It is ideal for applications in industrial machinery, power supplies, automotive electronics, and HVAC systems, where dependable DC output is critical.

Choose the Taiwan Semiconductor GBPC2508W for dependable, efficient full-wave rectification in demanding electronics designs and installations. Supports peak reverse repetitive voltage of 800 V for robust operation. Maximum forward current rating of 25 A ensures reliable performance under load.

Features a peak non-repetitive forward surge current of 300 A for transient conditions. Operates safely within -50°C to 150°C temperature range for diverse environments. Compact dimensions of 29 mm length, 29 mm width, and 11.23 mm height for PCB mounting.

Through-hole mount type with GBPC package ensures easy assembly on circuit boards. Low forward voltage drop of 1.1 V contributes to efficient power conversion. Peak reverse current is only 5 μA, reducing leakage losses effectively.

Configured as a single-phase bridge rectifier with 4 pins for straightforward integration. Designed with integrally molded heatsink for maximum thermal dissipation. Explore more semiconductor and Bridge Rectifier solutions in the Electronics & Electricals category at EnvMart.
