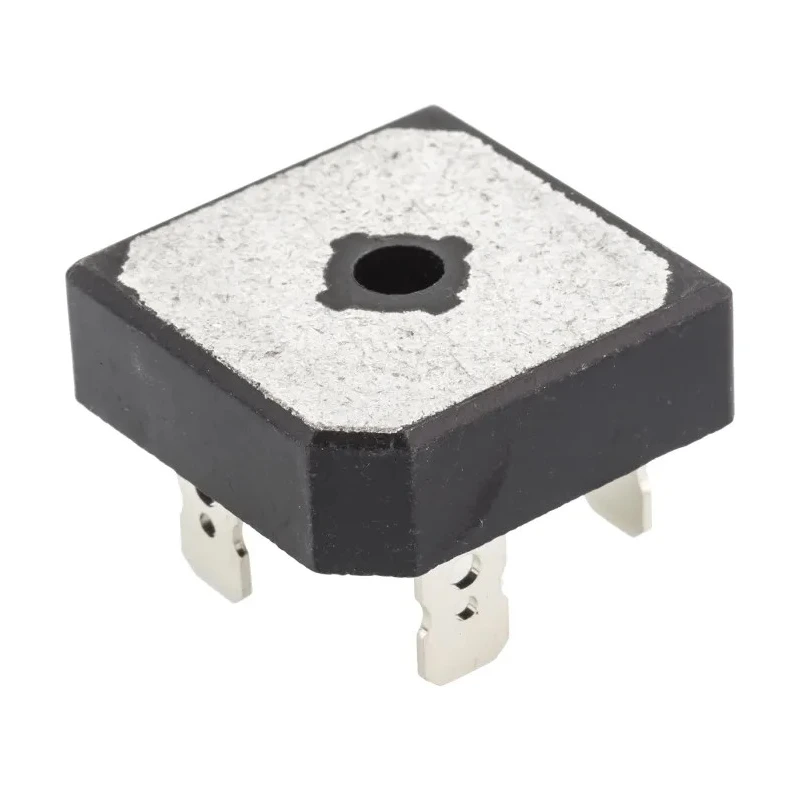

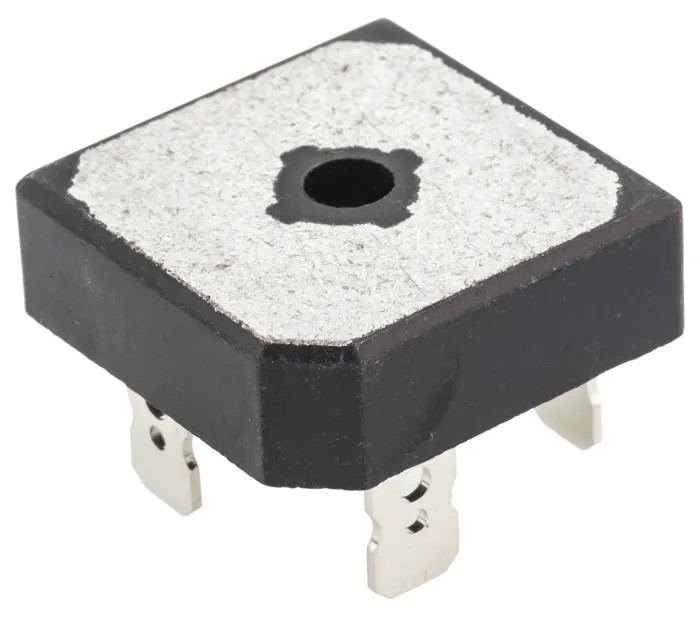

Vishay Bridge Rectifier 400 V 420 A 4-Pin Single VS-26MB40A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 9.8mm |
| Length | 28.5mm |
| Model | VS-26MB40A |
| Width | 28.5mm |
| Mount Type | Screw |
| Series | VS-26MB |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-34 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 420A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1.11V |
| Universal, 3 way terminals | push-on, wrap around, or solder |
Key Features
- Designed for efficient and reliable conversion of AC to DC power.
- Encapsulated package offering high thermal conductivity and electrical insulation.
- Operating temperature range from -55°C to 150°C for versatile applications.
- Equipped with universal 3-way terminals suitable for push-on, wrap around, or solder connections.
- Compact dimensions of 28.5 mm by 28.5 mm with a height of 9.8 mm ensure space-saving integration.
- Screw mount type simplifies installation in various setups.
- Nickel plated terminals compatible with lead-free solder for environmentally safe manufacturing.
- Ideal for use in industrial, instrumentation, power supply, and general-purpose electronics.
Product Description
Vishay VS-26MB40A Bridge Rectifier is a highly reliable single phase discrete semiconductor device engineered to efficiently convert alternating current (AC) into direct current (DC) with full-wave rectification. It supports a peak reverse repetitive voltage of 400 V and a peak non-repetitive forward surge current of 420 A, ensuring robust performance under demanding electrical conditions.
The device is housed in a compact D-34 package measuring 28.5 mm in length and width, with a height of 9.8 mm, featuring a high thermal conductivity encapsulation and an electrically insulated case to facilitate excellent heat dissipation and safe operation. Its screw mount configuration and universal 3-way terminals allow versatile connection options including push-on, wrap-around, or solder, enhancing installation flexibility.
Rated for forward current of 25 A and capable of operating over a wide temperature range from -55°C to 150°C, this bridge rectifier is suitable for various industrial and instrumentation applications requiring consistent and efficient AC to DC conversion. Its nickel plated terminals comply with lead-free soldering standards (Sn/Ag/Cu alloy), promoting eco-friendly manufacturing processes.
Provides reliable full-wave rectification for AC to DC conversion. Compact and thermally efficient D-34 package with insulated case. Rated for high surge current and continuous forward current capabilities. Operates within -55°C to 150°C maintaining stable performance.
Universal terminal design offers multiple mounting and connection options. Nickel plated terminals support lead-free soldering standards. Screw mount type ensures secure and easy installation.
This Bridge Rectifier is widely used in industrial electronic systems, power supplies, control instruments, and general-purpose electronics requiring compact and durable rectification devices. Vishay’s VS-26MB40A combines efficiency, reliability, and ease of use, making it a dependable choice for engineers and system designers.
Explore our Electronics & Electricals category for more Vishay semiconductor products and related components tailored for advanced electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this model is 400 V.
It can operate at a maximum temperature of 150°C.
The bridge rectifier is rated for a forward current of 25 A.
The dimensions are 28.5 mm in length and width, with a height of 9.8 mm.
It features a screw mount type for installation.
The peak non-repetitive forward surge current is 420 A.
It is equipped with universal 3-way terminals suitable for push-on, wrap-around, or solder connections.
This bridge rectifier is housed in a D-34 package type.
The minimum operating temperature is -55°C.
It has a single configuration and is designed for single-phase applications.
The country of origin for this model is India.
The peak forward voltage is 1.11 V.
