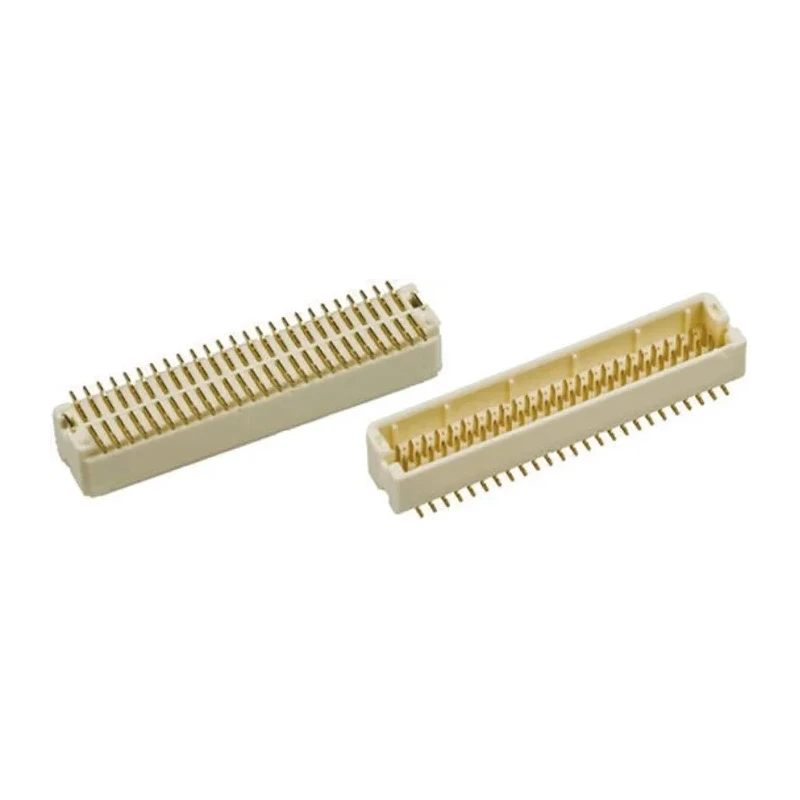

Hirose DF20 Series Straight Surface PCB Header, 30 Contacts, 1 mm Pitch, 2 Row, Shrouded DF20

Hirose DF20 Series Straight Surface PCB Header, model DF20, features a double row of 30 male copper alloy contacts with 1 mm pitch. This shrouded header is designed for surface mounting on printed circuit boards and wire-to-board connector systems.

The housing is constructed from polyamide material, rated UL94V-0 for flame retardance, ensuring safety and durability in electronic assemblies. Contact plating with gold enhances electrical performance and corrosion resistance for reliable signal integrity.

This PCB header supports a current rating of 1 A and voltage rating of 100 V with operating temperatures from -35°C to 85°C, making it suitable for a broad spectrum of applications in consumer electronics including notebook computers, small office automation, and other compact devices requiring low profile, high density connectors.

The connector design includes a mechanism to prevent mis-insertion, enhancing assembly safety and reducing errors during manufacturing. Its mating height above the PCB is approximately 5.8 mm, supporting low profile board to cable connections with AWG wire sizes 28, 30, and 32.

Typical uses include wire-to-board connections where secure, reliable, and compact connectivity is critical. This series is applicable in industrial automation, communication devices, and portable electronics where space constraints and performance demand precision connectors.

Compact 1 mm contact pitch supports dense arrangements. Double-row straight pin header ensures secure connections. Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance. Polyamide housing with UL94V-0 rating for high flame retardance.

Operating temperature range from -35°C to 85°C supports diverse environments. Shrouded connector system prevents mis-insertion and enhances durability. Surface mount type enables automated equipment board placement. Designed for low profile applications with mating height above PCB of 5.8 mm.

Rated for 100 V and 1 A current, ideal for notebook PCs and consumer devices. Explore similar high-quality PCB Headers and connectors for your electronic component needs on EnvMart.
