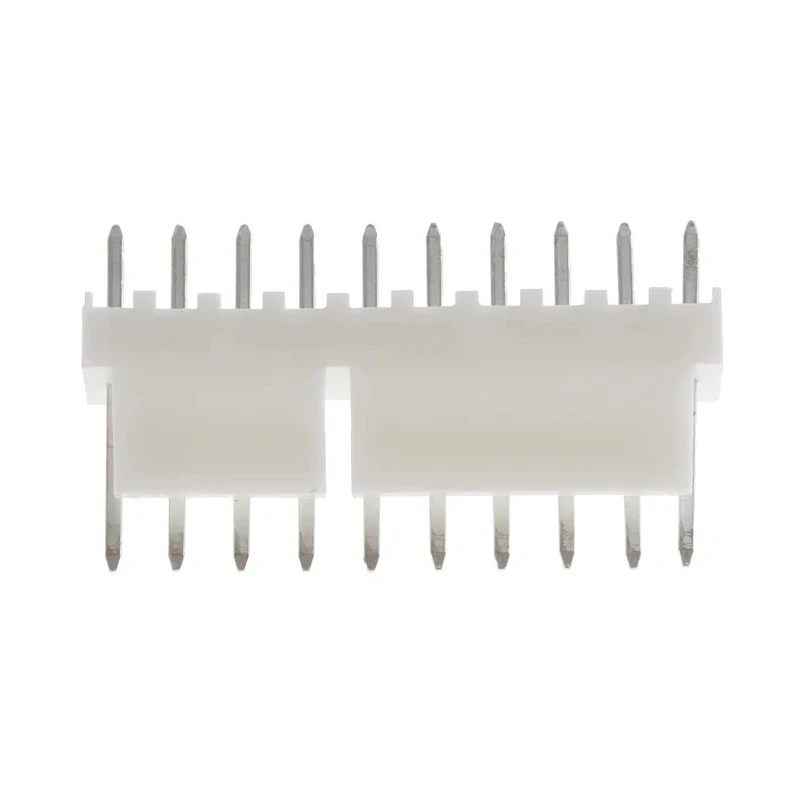

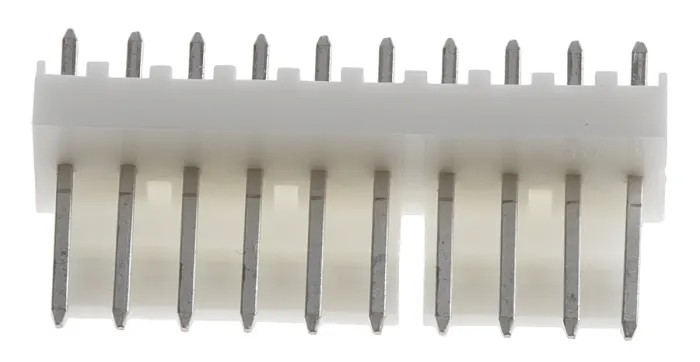

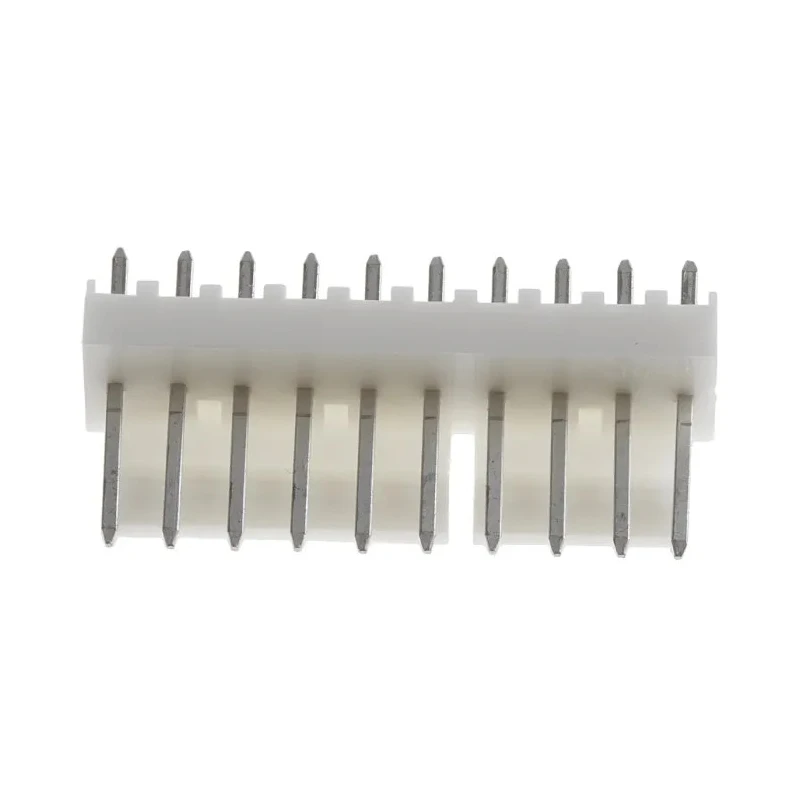

Molex KK 254 Series Straight Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-23-2101
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
Key Features
- Features 10 male contacts arranged in a single row with 2.54 mm pitch spacing.
- Constructed with nylon housing providing durability and insulation.
- Brass contacts plated in tin ensure excellent conductivity and corrosion resistance.
- Designed for through-hole mounting and solder termination for secure installation.
- Operates reliably in temperatures from -40°C to 80°C.
- Rated for 250V and 4A current capacity suitable for general electronic applications.
- Compatible with multiple Molex series housings including 2695, 6471, 7880, 4455, and 7720.
- Unshrouded straight orientation facilitates easy pin insertion and connection.
Product Description
Molex 22-23-2101 is a KK 254 series straight through hole pin header featuring 10 male contacts arranged in one row with a 2.54 mm pitch. It is designed for wire-to-board connections in various electronic assemblies and industrial applications.
The connector housing is made of nylon, offering robust insulation and mechanical strength. Contacts are crafted from brass and plated with tin to provide reliable electrical conductivity and corrosion resistance. The pin header supports through-hole mounting with solderable terminations, ensuring secure and durable connections on printed circuit boards.
Operating voltage reaches up to 250V with a maximum current of 4 amperes, making it suitable for a wide range of low power electronic uses. The device can operate in extreme temperatures from -40°C to 80°C, ensuring dependable performance in harsh conditions.
Its single-row, unshrouded design allows for easy mating with compatible Molex housings such as series 2695, 6471, 7880, 4455, and 7720, facilitating flexible integration into diverse systems. This pin header is widely used in industrial, manufacturing, electronic component assemblies, and HVAC control systems where reliable, high-quality PCB connections are required.
Features 10 male contacts arranged in a single row with 2.54 mm pitch spacing. Constructed with nylon housing providing durability and insulation. Brass contacts plated in tin ensure excellent conductivity and corrosion resistance.
Designed for through-hole mounting and solder termination for secure installation. Operates reliably in temperatures from -40°C to 80°C. Rated for 250V and 4A current capacity suitable for general electronic applications.
Compatible with multiple Molex series housings including 2695, 6471, 7880, 4455, and 7720. Unshrouded straight orientation facilitates easy pin insertion and connection. Explore the wide range of Molex connectors and related electronic components on EnvMart for your technical and industrial projects.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 250V.
It features 10 male contacts arranged in a single row.
The current capacity of this model is rated at 4A.
The pitch size of the contacts is 2.54 mm.
The housing is made of nylon, while the contacts are crafted from brass and plated with tin.
It operates reliably in temperatures ranging from -40°C to 80°C.
This pin header is designed for through-hole mounting with solder termination.
It is compatible with Molex series housings including 2695, 6471, 7880, 4455, and 7720.
This model uses a wire-to-board connector system.
The contacts are oriented in a straight configuration and are unshrouded.
It supports solder termination for secure installation.
This pin header is suitable for various electronic assemblies and industrial applications.
