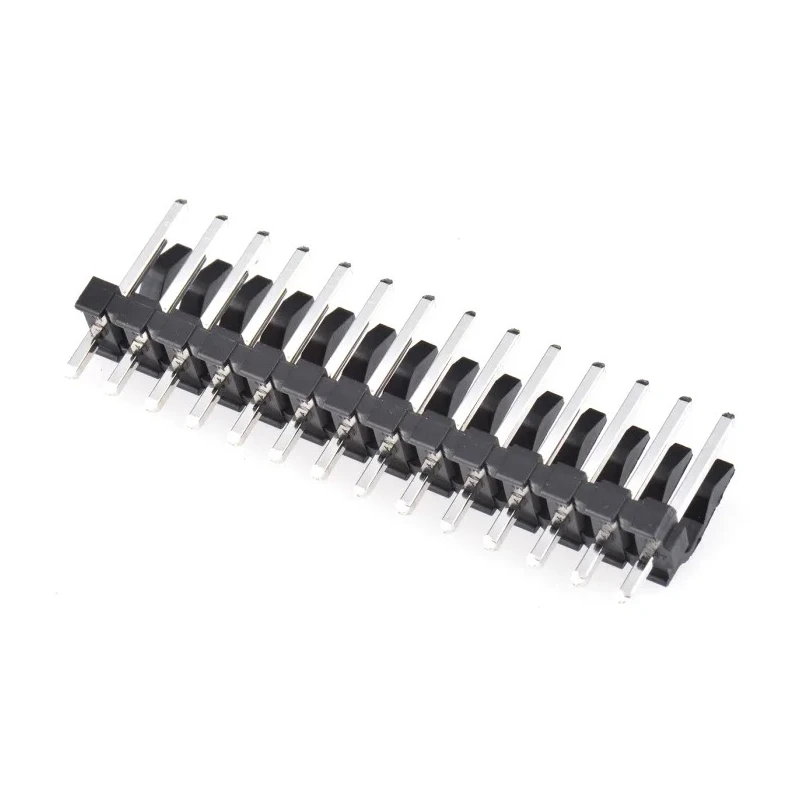

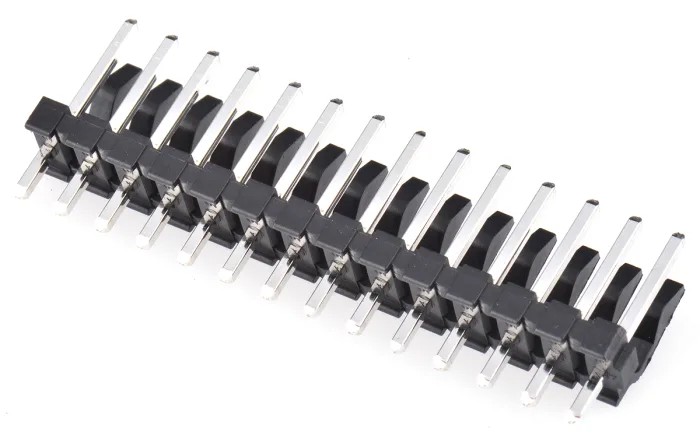

Molex KK 396 Series Straight Through Hole Pin Header 14 Contacts 3.96 mm Pitch 1 Row Unshrouded 26-48-1145
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | KK 396 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 4.37mm |
Key Features
- Features a 3.96 mm pitch for precise PCB interfacing.
- Includes 14 male contacts in a single row configuration.
- Constructed with brass contacts and tin plating for durability.
- Housing made of polyester to withstand temperatures from -40°C to 80°C.
- Designed for through-hole mounting and solder termination.
- Operates safely up to 250 V and 7 A current rating.
- Unshrouded design to facilitate easy mating with compatible housings.
- Tail pin length measures 4.37 mm for secure connections.
Product Description
Molex 26-48-1145 KK 396 Series Straight Through Hole Pin Header is a high-quality electronic component designed for wire-to-board applications. Featuring 14 male contacts arranged in one row, it provides a 3.96 mm pitch spacing suitable for precise PCB connections.
Constructed with brass contact material and tin plating, this header ensures excellent conductivity and corrosion resistance. The polyester housing provides robust insulation and mechanical stability, suitable for operating temperature ranges from -40°C to 80°C.
This component is designed for through-hole mounting and solder termination, facilitating reliable mechanical and electrical connections on printed circuit boards. It supports voltages up to 250 V and currents up to 7 A, making it suitable for various industrial, electronics manufacturing, and prototyping applications.
The unshrouded design allows pairing with compatible Molex housings and connectors, including series 3069, 2139, and others for versatile assembly options. The tail pin length of 4.37 mm aids in secure solder joints and efficient mounting.
Manufactured in Mexico under the KK 396 series specification, this pin header complies with industry standards for quality and performance. It is widely used in electronic, industrial, and commercial equipment requiring dependable connectivity solutions.
Features a 3.96 mm pitch for precise PCB interfacing. Includes 14 male contacts in a single row configuration. Constructed with brass contacts and tin plating for durability. Housing made of polyester to withstand temperatures from -40°C to 80°C.
Designed for through-hole mounting and solder termination. Operates safely up to 250 V and 7 A current rating. Unshrouded design to facilitate easy mating with compatible housings. Tail pin length measures 4.37 mm for secure connections.
Manufactured in Mexico ensuring quality standards. Explore the comprehensive range of Molex connectors and headers at EnvMart for your electronic component needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 3.96 mm, suitable for precise PCB connections.
This model includes 14 male contacts arranged in a single row configuration.
It operates safely at a maximum voltage of 250 V and a current rating of 7 A.
The contacts are made of brass with tin plating, while the housing is constructed from polyester.
The tail pin length measures 4.37 mm, which aids in secure solder joints.
It can operate within a temperature range of -40°C to 80°C.
Yes, it is specifically designed for through-hole mounting and solder termination.
This model utilizes a wire-to-board connector system.
The orientation of this pin header is straight.
It features an unshrouded design, which facilitates easy mating with compatible housings.
It is manufactured in Mexico, adhering to quality standards.
The termination type for this model is solder, allowing for reliable connections.
